ASTM A179 Carbon Steel Extruded Fin Tube With Al1060 Fins For Air Cooled Condenser (ACC)

ASTM A179 Carbon Steel Extruded Fin Tube With Al1060 Fins For Air Cooled Condenser (ACC)

Brand Name: YUHONG
Model Number: Extruded Fin Tubes
MOQ: Depend
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 1000 tons/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS
Fin Tubes Type:
Extruded Fin Tubes
Extruded Fin Tubes Material:
ASTM A179 Carbon Steel Base Tubes, Al1060 Fins
Extruded Fin Tubes Forming:
Integral Fin Tube
Extruded Fin Tubes Size:
By Costomers' Requirements
Extruded Fin Tubes Packing:
Ply-wooden Case With Iron Frame
Extruded Fin Tubes Application:
Air-cooled Heat Exchangers & Air Coolers,Air Cooled Condensers (ACC) In Power Plants,Oil Coolers & Hydraulic System Coolers,Furnace Waste Heat Recovery Equipment,etc.
Packaging Details:
Ply-wooden Case With Iron Frame
Supply Ability:
1000 tons/month
Highlight:

ASTM A179 carbon steel fin tubes

,

extruded fin tubes for ACC

,

Al1060 finned condenser tubes

Product Description
ASTM A179 Carbon Steel Extruded Fin Tubes With Al1060 Fins For Air Cooled Condenser (ACC)
ASTM A179 specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. ASTM A179 cold-drawn low-carbon seamless tube is the most popular and cost-effective base tube choice for extruded finned tubes, particularly steel-aluminum extruded finned tubes. Its core advantages include processing adaptation, heat transfer efficiency, structural integrity, and cost-effectiveness, perfectly meeting the process and working condition requirements of extruded fins.
Key Advantages
  • Seamless Structure: No weld seams, uniform wall thickness, avoiding cracking due to stress concentration at weld seams during compression and ensuring reliable fin connection
  • Superior Cost Performance: Low-carbon steel combined with mature cold drawing technology provides pricing at only 1/3 to 1/5 of stainless steel or copper tubes, delivering the lowest overall cost in non-severe corrosive conditions

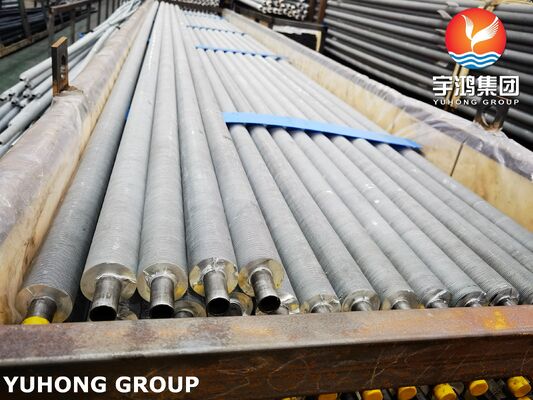

ASTM A179 Carbon Steel Extruded Fin Tube With Al1060 Fins For Air Cooled Condenser (ACC) 0
Chemical Composition (%) Maximum
Grade C Mn P S
A179 0.06-0.18 0.27-0.63 0.035 0.035
Mechanical Properties
Grade Tensile Strength min Yield Strength min Elongation in 2" or 50mm min
A179 47ksi (325 MPa) 26ksi (180 MPa) 35%
Extruded Fin Tube Definition
Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation. These tubes feature:
  • High heat transfer performance with minimal contact thermal resistance
  • Large contact area between fin and tube with tight, reliable fit
  • Excellent corrosion resistance and stable long-term performance
  • Superior cost effectiveness
  • High fin rigidity with minimal deformation risk
Extruded Fin Tubes Applications
  • Air-cooled heat exchangers & air coolers
  • Air cooled condensers (ACC) in power plants
  • Oil coolers & hydraulic system coolers
  • Gas coolers & compressor intercoolers
  • Furnace waste heat recovery equipment
  • Petrochemical & refinery heat exchange units
  • HVAC & refrigeration heat exchangers
  • Heat pumps & energy-saving heat transfer equipment
  • Marine heat exchangers & shipboard cooling systems
  • Automotive & engine cooling systems

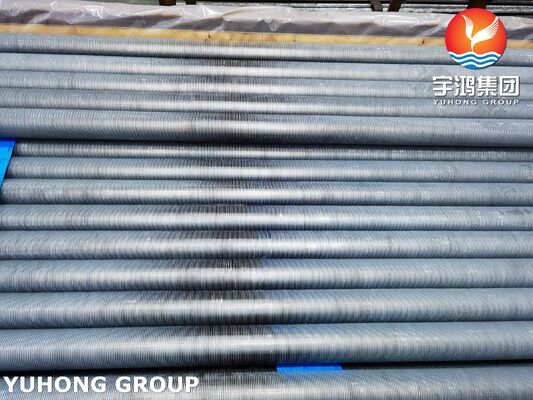

ASTM A179 Carbon Steel Extruded Fin Tube With Al1060 Fins For Air Cooled Condenser (ACC) 1
