| Brand Name: | Yuhong |
| Model Number: | TP304, TP316L, TP321, TP347H |
| MOQ: | 100KGS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton/month |

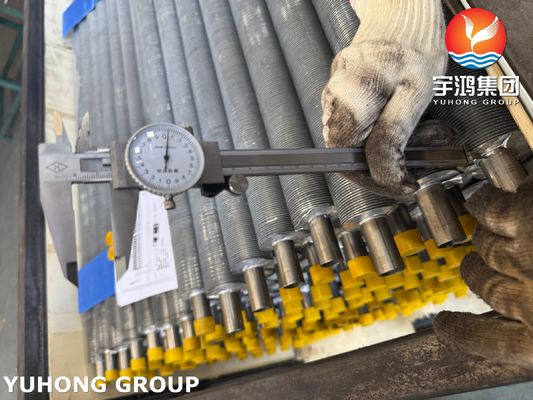

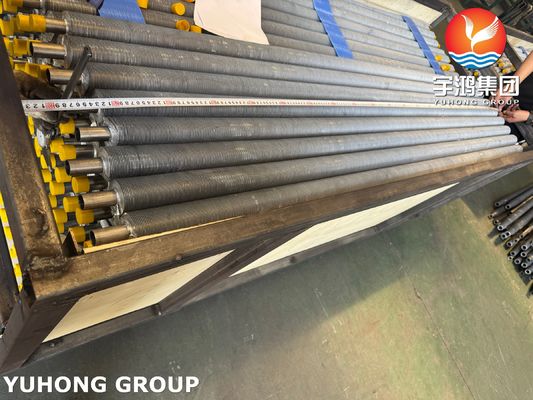

ASTM A213 TP316L Stainless Steel Fin Tube Extruded Type For Air Cooler
Product Overview
The fin tube is produced using ASTM A213 TP316L seamless stainless steel tubes with extruded Aluminium 1060 fins. The extrusion process creates a metallurgical bond between tube and fin, ensuring excellent thermal performance, mechanical strength, and long service life in demanding cooling applications.
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube / T-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube / corrugated tube | 16-51 | 8.0~30 | <2.5 | ~0.3 | |
| Wound | L / KL / LL fin type | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H / HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
| Property | Content (wt%) |
|---|---|
| Carbon (C) | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Silicon (Si) | ≤ 1.00 |
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Nitrogen (N) | ≤ 0.10 |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 485 |
| Yield Strength (MPa) | ≥ 170 |
| Elongation (%) | ≥ 40 |
| Hardness (HB) | ≤ 217 |
Excellent corrosion resistance from TP316L stainless steel
Superior thermal conductivity of Aluminium 1060 fins
Strong integral bond from extrusion process (resistant to thermal cycling)
Long service life with low maintenance
Easier cleaning compared with L, LL, KL, and G-type fins
Air-cooled heat exchangers in petrochemical and refinery plants
Fin-fan coolers in power generation
Condensers and gas coolers in chemical and fertilizer industries
Offshore and marine coolers, where corrosion resistance is essential
