| Brand Name: | Yuhong |
| Model Number: | TP304, 1.4301 |
| MOQ: | 100KGS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton/month |

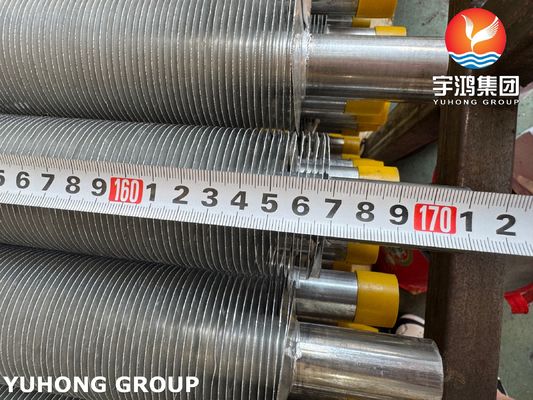

Stainless Steel Fin Tube TP304, 1.4301 Extruded Type With Aluminium1060 For Fin Fan Cooler
Product OverviewThis fin tube consists of a seamless stainless steel base tube TP304 / 1.4301 combined with extruded aluminium fins (AL1060). The fins are integrally bonded to the tube through the extrusion process, ensuring excellent heat transfer efficiency, strong mechanical bonding, and enhanced corrosion resistance.
| Element | C (max) | Mn (max) | P (max) | S (max) | Si (max) | Cr | Ni |
|---|---|---|---|---|---|---|---|
| Content (%) | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0–20.0 | 8.0–11.0 |
| Items | General Materials | Popular ASTM Materials |
| Core Tube Material | Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc. |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti, A789 S31803/S2205 etc... 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2 |
| Fins Material | 1. Aluminum Alloy 2. Copper. |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) 2. Copper. |
1.We operate a production workshop of over 10,000 square meters, equipped with 10 self-designed extrusion finning machines capable of producing up to 3,000 meters of extruded fin tubes per day.
2.Our DR-extruded bimetallic fin tubes are designed for service temperatures up to 300°C, with stable heat transfer performance. Compared with conventional mechanical fin types (L, LL, KL, G), the extruded fins are stronger, more durable, and easier to clean.
3.In demanding applications involving high stress and corrosive conditions, DR-extruded bimetallic fin tubes deliver both technical advantages and cost efficiency, since the use of expensive alloys is minimized while maintaining excellent performance.
Air-cooled heat exchangers in petrochemical and refinery plants
Fin-fan coolers in power generation
Condensers and gas coolers in chemical and fertilizer industries
Offshore and marine coolers, where corrosion resistance is essential
Yuhong
