| Brand Name: | Yuhong |
| Model Number: | ASTM A179 |
| MOQ: | 100KGS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton/month |

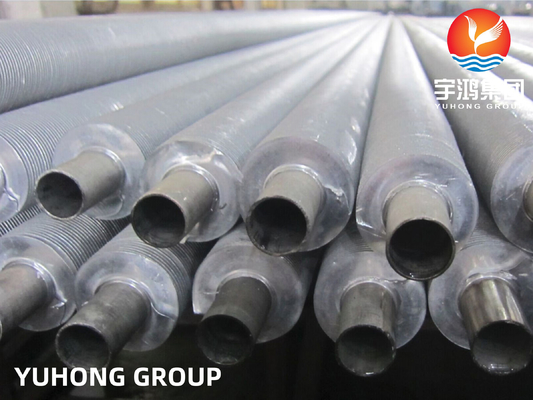

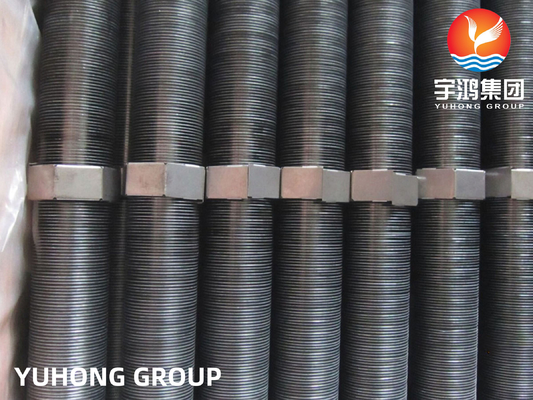

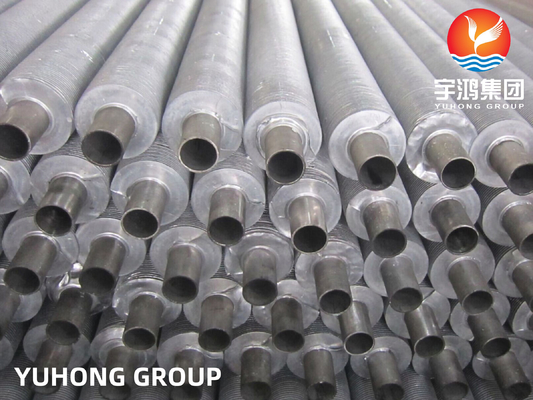

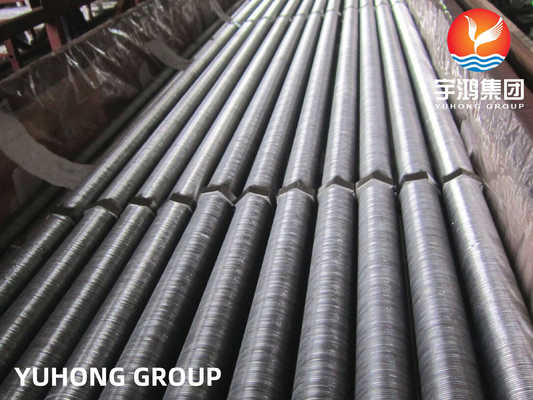

ASTM A179 Carbon Steel Fin Tube L Type With Al1060 Fin Strip For Heat Exchabger
The ASTM A179 Carbon Steel Fin Tube L Type is produced by wrapping Aluminum 1060 fin strips onto a low-carbon seamless steel tube. The "L Type" attachment method mechanically locks the base of the aluminum strip onto the tube surface, ensuring tight contact and efficient heat transfer. This design is widely used in heat exchangers, condensers, and air coolers, where corrosion resistance and thermal conductivity are critical.
ASTM A179 Carbon Steel Tube
| Element | Content (%) |
|---|---|
| C (Carbon) | ≤ 0.06 |
| Mn (Manganese) | 0.27 – 0.63 |
| P (Phosphorus) | ≤ 0.035 |
| S (Sulfur) | ≤ 0.035 |
| Fe (Iron) | Balance |
Aluminum 1060 Fin Strip
| Element | Content (%) |
|---|---|
| Al (Aluminum) | ≥ 99.6 |
| Si + Fe | ≤ 0.35 |
| Cu (Copper) | ≤ 0.05 |
| Mn (Manganese) | ≤ 0.03 |
| Zn (Zinc) | ≤ 0.05 |
| Ti (Titanium) | ≤ 0.03 |
| Others | ≤ 0.03 |
ASTM A179 Carbon Steel Tube
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 325 |
| Yield Strength (MPa) | ≥ 180 |
| Elongation (%) | ≥ 35 |
| Hardness (HBW) | ≤ 72 |
Aluminum 1060 Fin Strip
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 60 – 100 |
| Yield Strength (MPa) | ≥ 20 |
| Elongation (%) | ≥ 23 |
| Brinell Hardness (HBW) | ≤ 35 |
Air coolers in power plants and petrochemical facilities
Heat exchangers in refineries and gas processing plants
Condensers for HVAC and industrial cooling systems
Process heaters for chemical and fertilizer industries
Gas coolers & evaporators in refrigeration systems
Excellent thermal conductivity from Al1060 fins (thermal conductivity ~237 W/m·K)
Cost-effective compared with fully stainless or alloy fin tubes
Good resistance to atmospheric corrosion due to aluminum fins
Enhanced heat transfer efficiency via extended finned surface
Mechanical strength from ASTM A179 seamless carbon steel tube
Wide adaptability for both air-side and gas-side heat transfer
