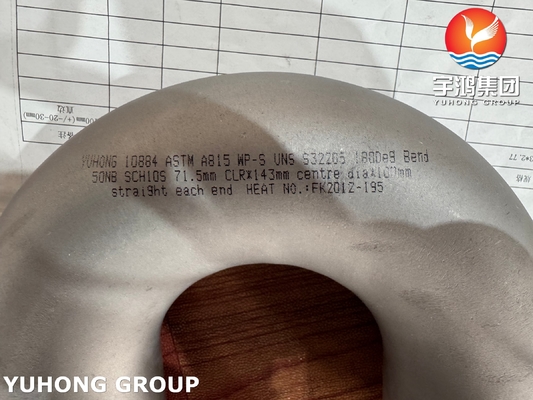

ASTM A815 WPS32205-S 180 Degree Return Bend For Chemical Processing Plants

ASTM A815 WPS32205-S refers to a 180-degree return bend made from duplex stainless steel UNS S32205 (also known as 2205) conforming to the ASTM A815 standard. Here’s a detailed breakdown:

1. Material ASTM A815 WP S32205-S

(1). Chemical Composition (ASTM A815 WP S32205-S)

The composition ensures corrosion resistance, strength, and weldability.

Note: Some traces of Copper (Cu) and Tungsten (W) may be present but are not mandatory.

(2). Mechanical Properties (ASTM A815 WP S32205-S)

Duplex 2205 offers high strength and toughness due to its austenitic-ferritic microstructure.

Additional Notes:

Heat Treatment: Solution annealed at 1025–1125°C (1875–2050°F) followed by rapid cooling.

Pitting Resistance Equivalent (PREN): ~35–40 (PREN = %Cr + 3.3(%Mo + 0.5%W) + 16%N).

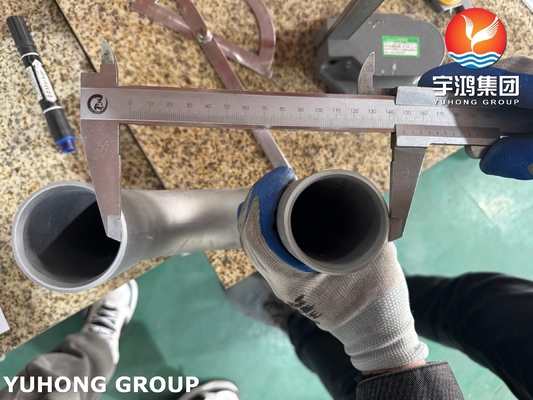

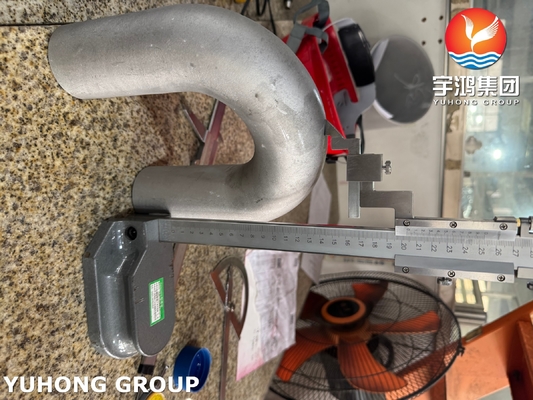

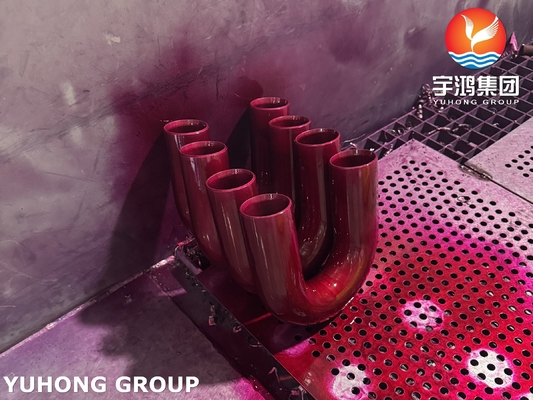

3. 180-Degree Return Bend

• A pipe fitting that changes direction by 180 degrees, forming a U-shape.
• Used to reverse flow direction in piping systems while maintaining a compact layout.
• Typically made via hot forming or cold bending processes.

4. Key Features

• Pressure Rating: Suitable for high-pressure applications.
• End Connections: Butt-welded ends for seamless integration into piping systems.
• Corrosion Resistance: Ideal for aggressive environments (e.g., seawater, acidic/alkaline media).
• Dimensional Compliance: Follows ASME B16.9 or other relevant standards.

5. Comparison with Other Materials

6. Key Standards & Specifications

• ASTM A815 – Covers duplex stainless steel fittings.
• ASME B16.9 – Dimensions for factory-made butt-welding bends.
• NACE MR0175/ISO 15156 – Approved for sour service (H₂S environments).

The ASTM A815 WP S32205-S Stainless Steel 180-Degree Return Bend (made from Duplex 2205, UNS S32205) is used in demanding environments where high strength, corrosion resistance, and pressure integrity are critical. Below are its key applications:

1. Oil & Gas Industry

• Offshore & Subsea Pipelines – Resists chloride stress corrosion cracking (SCC) in seawater.
• Downhole & Wellhead Equipment – Handles H₂S (sour gas) and CO₂ in aggressive well fluids.
• Flow Lines & Risers – High-pressure U-bends for directional changes in piping.

2. Chemical & Petrochemical Processing

• Acid & Alkaline Transport – Resists sulfuric, phosphoric, and organic acids.
• High-Temperature Lines – Used in heat exchangers, reactors, and condensers.
• Chloride-Rich Environments – Ideal for bleach, chlorine, and brine handling.

3. Desalination & Water Treatment

• Seawater Reverse Osmosis (SWRO) Plants – Resists pitting/crevice corrosion.
• Brine Recirculation Lines – 180° bends in high-salinity systems.

4. Power Generation

• Cooling Water Systems – Used in nuclear, thermal, and offshore power plants.
• Flue Gas Desulfurization (FGD) – Resists wet sulfuric acid environments.

5. Marine & Shipbuilding

• Ballast & Bilge Systems – Prevents corrosion in saltwater piping.
• Exhaust Scrubbers – Handles acidic washwater in emission control systems.

6. Pulp & Paper Industry

• Bleach Plants & Digesters – Withstands corrosive chlorine dioxide (ClO₂) liquors.

Why Choose Duplex 2205 (S32205) for 180° Return Bends?

✅ Superior Strength – 2x stronger than standard 304/316 stainless steel.
✅ Corrosion Resistance – Excellent against pitting, SCC, and erosion.
✅ Cost-Effective – Longer lifespan than austenitic steels in harsh conditions.
✅ Compact Design – 180° bends minimize space in piping layouts.
