ASTM A249 TP304 Welded Austenitic Steel Extruded Finned Tube For Heat Exchangers

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Fin Type:

Extruded Combined Metal Fin

Bare Tube Specification&Material:

ASTM A249 TP304

Application:

Air-cooled Exchangers, Refinery Air Cooler, Oil Coolers, Hydraulic Coolers, And Air Coolers

Fin Pitch:

1.6-10MM

Bare Tube Diameter:

8-51

Supply Ability:

According to Clients' requirements

Highlight:

304 Extruded Finned Tube

Welded Austenitic Steel Finned Tube

TP304 Extruded Finned Tube

Product Description

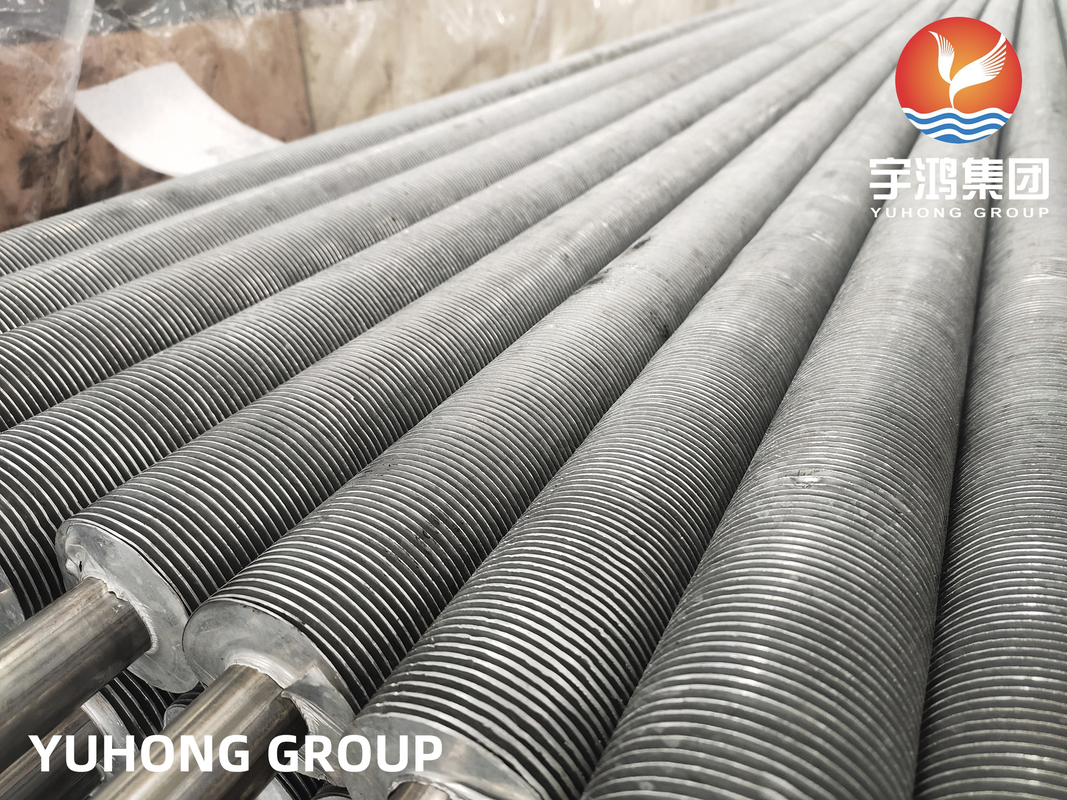

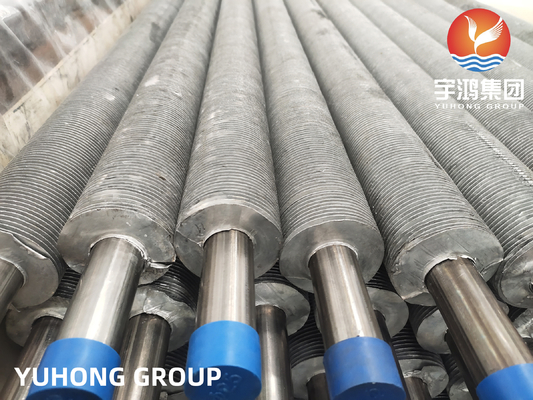

1. What is ASTM A249 TP304 Extruded Fin Tube?

ASTM A249 TP304 Extruded Fin Tube is a high-integrity heat transfer solution for corrosive and high-purity applications. It features a seamless austenitic stainless steel base tube (ASTM A249 TP304) with integrally extruded aluminum fins metallurgically bonded through high-pressure thermal processing. This monolithic design eliminates interfacial resistance, achieving 98% thermal contact efficiency while providing superior chloride corrosion resistance and FDA-compliant surface finish for pharmaceutical, food processing, and chemical systems up to 260°C (500°F).

2. Chemical & Mechanical Properties

Dimensional Specifications:

Bare Tube Diameter:9-51mm
Fin Height::<17mm	Fin Thickness: 0.2-0.4mm	Fin Pitch: 1.6-10mm	Tube Ends: Plain Ends / Beveled Ends
No Fin Area (Both Ends): As Customer’s Request and Drawing

Chemical Composition (%)

Element	C	Si	Mn	P	S	Cr	Ni
Range	≤ 0.08	≤ 1.00	≤2.00	≤ 0.045	≤0.030	18.0–20.0	8.0–11.0

Mechanical Properties

Tensile Strength	Yield Strength	Elongation	Hardness	Max Service Temp.
≥515 MPa	≥205MPa	≥35%	≤ 192 HB	260°C (500°F)

3. Key Applications & Competitive Advantages

· Pharmaceutical: Clean steam heat exchangers (FDA 21 CFR compliance).

· Food & Beverage: Pasteurizer coils for dairy/juice processing.

· Chemical Processing: HCl coolers with chloride resistance.

· HVAC: Hospital ventilation heating coils.

· Semiconductor: Ultra-pure water heat exchangers.

4. Why Choose ASTM A249 TP304 Extrurded Fin Tube?:

A:Company Competitiveness:

Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market.

B:Product Competitiveness:

· Zero Contamination Risk: Electropolished surface (Ra ≤0.4μm) per ASME BPE.
· 30+ Year Lifespan: Resists pitting in 100ppm chlorides (ASTM G48 Method A).
· Energy Saving: 40% higher HTC vs. welded fins (HTRI Field Data).
· Rapid Stock Delivery: 100+ FDA-compliant sizes (OD 19–63.5mm) in warehouse.

ASTM A249 TP304 Welded Austenitic Steel Extruded Finned Tube For Heat Exchangers 0
