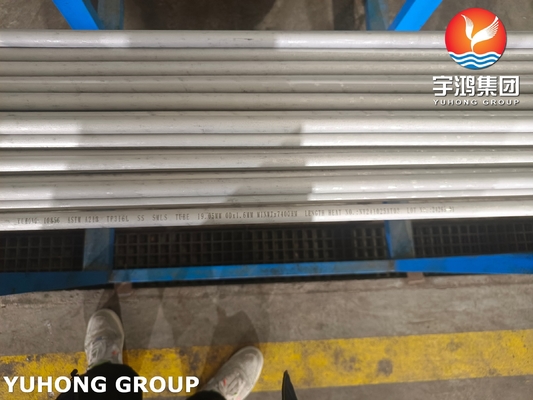

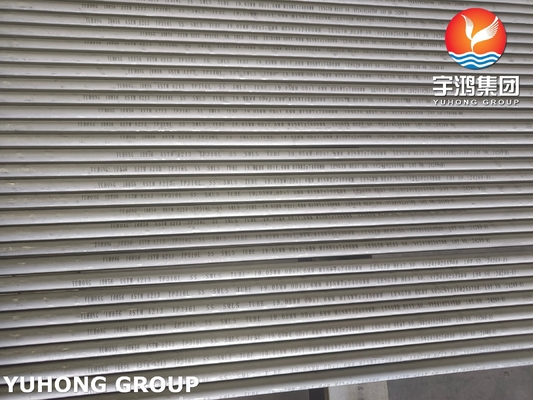

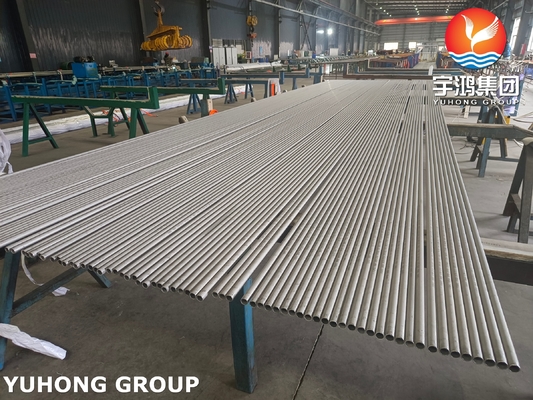

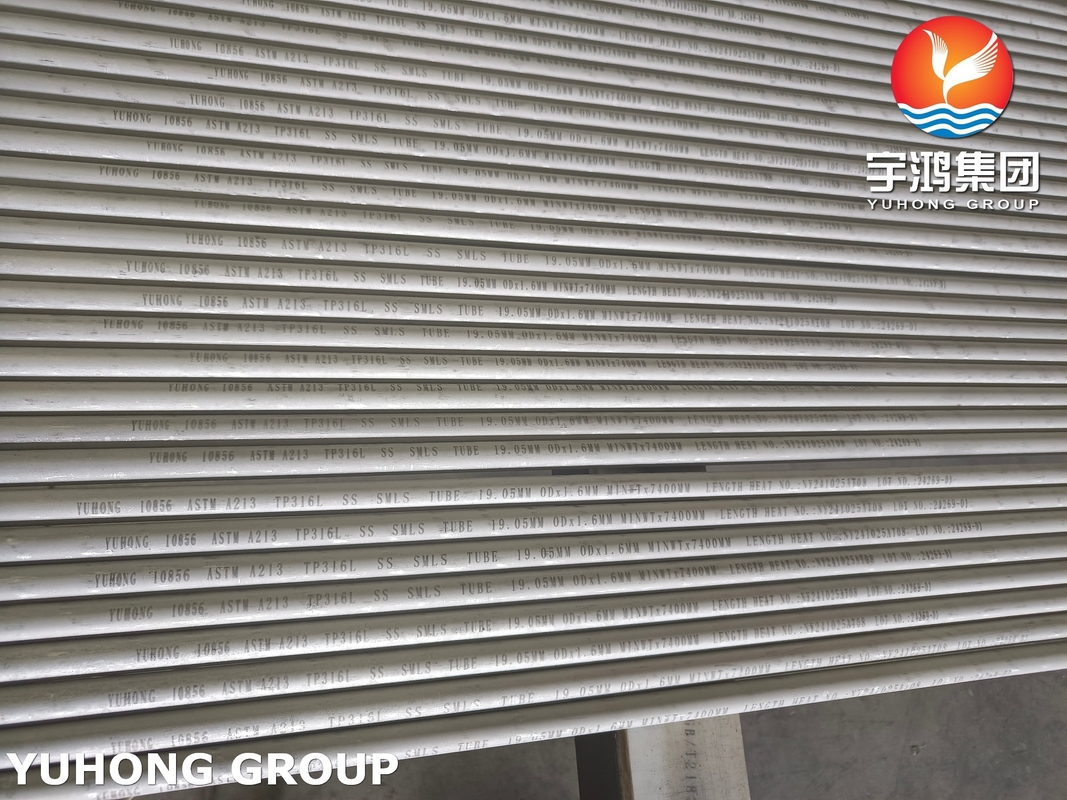

ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Bundles Tubes
ASME SA213/ASTM A213 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc.
| Chemical Composition (%) max | ||||||||||
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | N |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.-14.0 | 2.0-3.0 | ... |
A low-carbon (≤0.03%) variant of 316 stainless steel, offering improved corrosion resistance, especially in welded applications.
| Mechanical Properties | |||
| Tensile Strength, min | Yield Strength, min. | Elongation in 2 in. or 50mm, min. | Brinell/Vickers;Rockwell |
| 70ksi [ 485MPa ] | 25ksi [170MPa ] | 35% | 192HBW/200HV ;90HRB |
Austenitic Structure: Provides excellent toughness and high-temperature strength.
Key Features Suitable For Heat Exchangers
The A213 TP316L tube plays a crucial role in heat exchangers,condensers, and boilers due to its material properties and design.
TP316L has superior corrosion resistance,ideal for chemical, petrochemical, and marine heat exchangers.
TP316L has high-temperature performance,excellent weldability & fabrication.
Applications
| Heat Exchangers & Condensers |
| Boiler & Superheater Tubes (high-temperature/pressure environments) |
| Chemical Processing Equipment (resistant to acids, chlorides, and sulfides) |
| Food, Pharmaceutical, and Marine Industries |
