1. SA209 GR.T1 Boiler U Tube Standard & Purpose:

Governed by ASTM A209 / A209M ("Standard Specification for Seamless Carbon-Molybdenum Alloy-Steel Boiler and Superheater Tubes").

Specifically designed for use in boilers and superheaters operating at high temperatures and pressures.

2. SA209 GR.T1 Boiler U Tube Key Properties:

Enhanced High-Temperature Strength: The primary benefit of the molybdenum addition. Provides significantly better creep strength and resistance to deformation (sagging) at elevated temperatures compared to plain carbon steels (like A192/A210 Gr.A1/C).

Improved Oxidation Resistance: Slightly better resistance to scaling (oxidation) in steam environments than plain carbon steels.

Good Weldability: Generally considered readily weldable using appropriate procedures for low-alloy steels.

Good Formability: Can be bent and formed within standard practices for boiler tubes.

Mechanical Properties (Typical - Verify per Heat Treat Condition):

Tensile Strength: ≥ 415 MPa (60,000 psi)

Yield Strength: ≥ 205 MPa (30,000 psi)

Elongation: ≥ 30% (in 50mm / 2in)

3. SA209 GR.T1 Boiler U Tube Manufacturing & Processing:

Seamless: Mandatory. Tubes are produced without a welded seam, ensuring maximum integrity under pressure.

Heat Treatment: Tubes are supplied in one of the following conditions:

Normalized: Heated above the critical temperature and air-cooled. Most common for optimal strength and microstructure.

Stress Relieved: Heated to a temperature below the critical range to relieve stresses from cold working.

Normalized and Tempered: Normalized followed by tempering for specific toughness requirements.

4. SA209 GR.T1 Boiler U Tube Testing & Inspection:

Hydrostatic Test: Each tube is pressure tested.

Nondestructive Electric Test (NDT): Typically an eddy current test to detect imperfections.

Flattening Test, Flare Test, or Reverse Flattening Test: Performed on samples to check ductility and soundness.

Hardness Test: Optional per purchase agreement.

Chemical Analysis: Verified by the producer.

Tension Test: Verified by the producer.

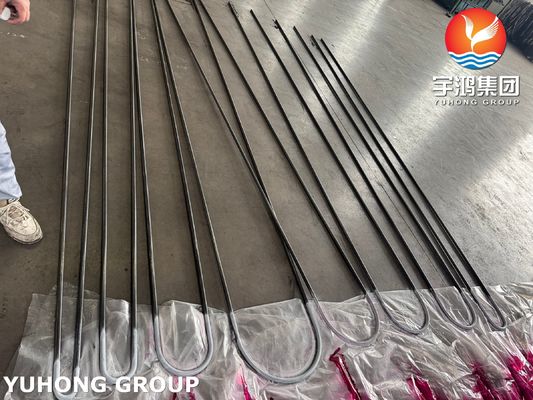

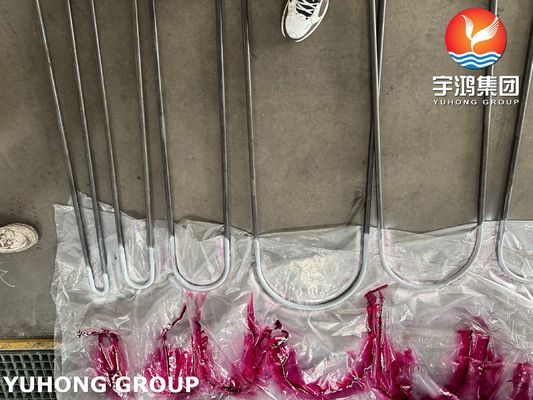

5. Mandatory Post-Bend Heat Treatment (Stress Relieving):

Cold bending induces significant residual stresses and work hardening in the bent region (especially the extrados - outer curve). These stresses can reduce creep life and promote premature failure at high temperatures.

Requirement: ASTM A209 mandates that all cold-bent tubes must be stress relieved after bending unless specifically exempted by the purchaser (exemption is rare and requires rigorous justification).

Process: Heating the bent tube section to a temperature below the lower critical transformation temperature (Ac1), typically in the range of 1100°F - 1250°F (595°C - 675°C), holding for a specified time (e.g., 1 hour per inch of wall thickness), followed by controlled cooling. This relaxes stresses without altering the base microstructure significantly.

6. SA209 GR.T1 Boiler U Tube Primary Applications:

Superheater Tubes: The most common application. Where steam is heated beyond its saturation temperature, requiring better high-temperature strength.

Reheater Tubes: Similar high-temperature environment as superheaters.

High-Temperature Boiler Sections: Sections of the boiler exposed to higher heat fluxes or temperatures than plain carbon steel can reliably handle long-term.

Operating Temperature Limit:

Generally suitable for metal temperatures up to approximately 1000°F (538°C). Beyond this, higher alloy steels (like T11, T22, T91) with chromium additions become necessary for better oxidation resistance and strength.

7. SA209 GR.T1 Boiler U Tube Key Identifier:

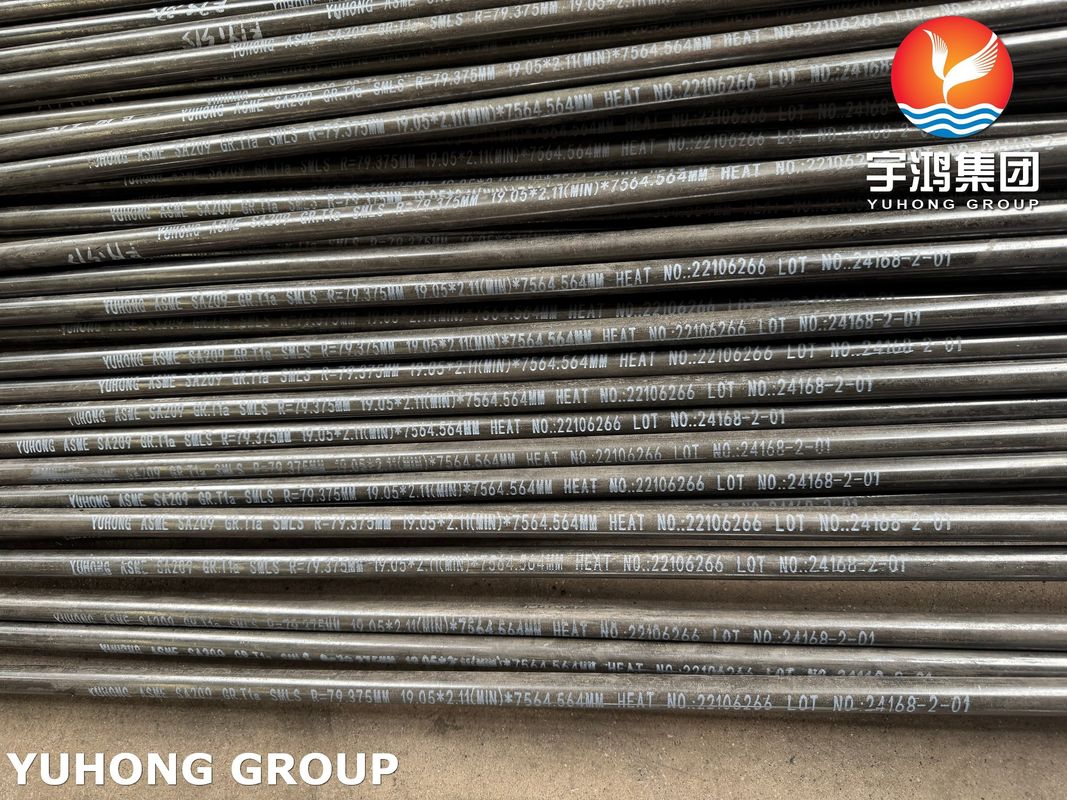

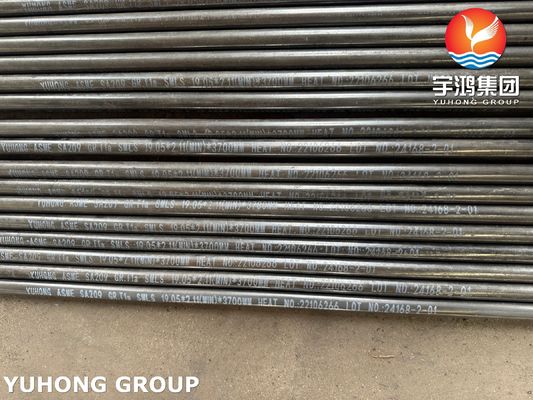

Tubes are typically marked with "A209", the Grade "T1", the manufacturer's name or symbol, the heat number, and size.

Common Equivalent Standards:

ASME: SA-209 / SA-209M (Identical to ASTM A209).

EN/DIN: Material No. 1.7220 / 25CrMo4 (Note: Composition is similar but not identical; EN 25CrMo4 has Chromium, A209 T1 does not).

In Summary:

ASTM A209 GR.T1 is a seamless, low-alloy boiler tube made from carbon steel with a significant molybdenum addition (0.44-0.65%). This molybdenum provides crucially improved strength at elevated temperatures compared to plain carbon steel tubes, making T1 the classic workhorse material for superheater and reheater sections in fossil fuel power plant boilers and industrial boilers operating within its temperature capability (up to ~1000°F / 538°C). It offers a good balance of high-temperature performance, weldability, and manufacturability.
