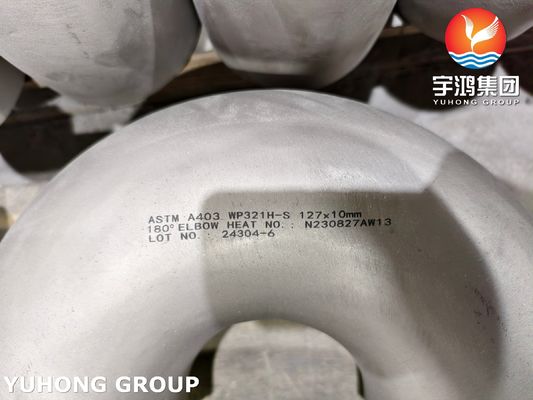

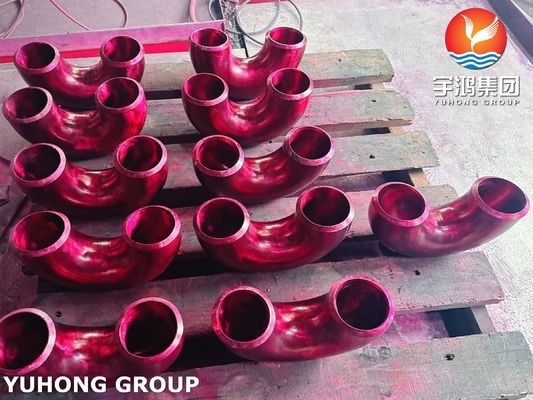

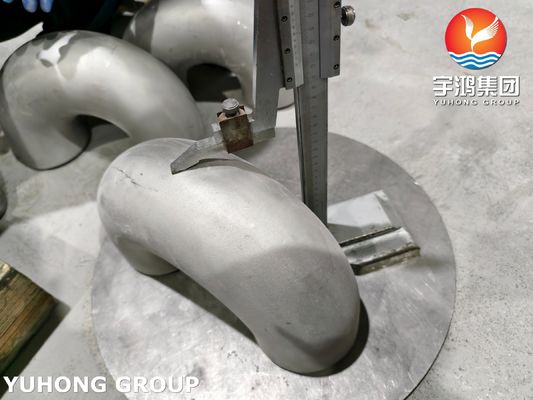

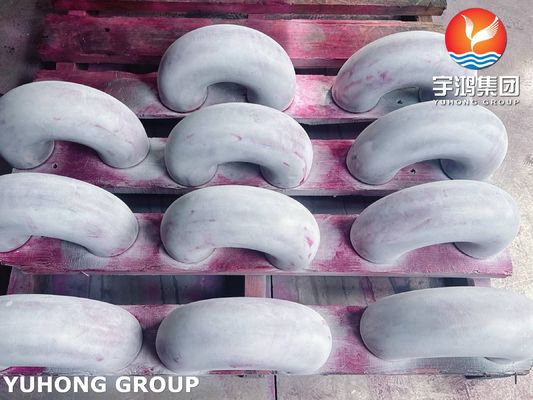

ASTM A403 WP321H-S Stainless Steel 180 Degree Return Bend For Oil & Gas Refineries

The A403 WP321H-S 180° Elbow is a high-performance pipe fitting designed for demanding industrial applications. Below is a detailed breakdown of its specifications, material properties, and typical uses:

1. Definition & Specifications

Standard: ASTM A403 (Standard for wrought stainless steel fittings for pressure piping).

Grade: WP321H (321H Stainless Steel, "H" denotes high carbon content for elevated temperature service).

Type: 180° Elbow (U-shaped bend that reverses flow direction by 180 degrees).

"S" Suffix: Indicates seamless construction (superior for high-pressure/temperature applications).

2. Material Properties (321H Stainless Steel)

Composition: Austenitic stainless steel with titanium (Ti) added to prevent chromium carbide precipitation (resists sensitization during welding/high-temp exposure).

Key Features:

• High-Temperature Strength: Carbon content (0.04–0.10%) enhances creep resistance (suitable for up to 900°C/1650°F).
• Corrosion Resistance: Resists oxidation, acids, and chlorides (better than 304/304H in many environments).
• Stabilized Alloy: Titanium reduces intergranular corrosion risks.

(a) Chemical Composition (ASTM A403 / ASTM A182 WP321H)

The chemical composition of 321H stainless steel must meet the following limits (weight %):

Key Notes on Composition:

Titanium (Ti) prevents chromium carbide precipitation (sensitization) during welding or high-temp exposure.

Higher carbon (C) improves creep resistance at elevated temperatures compared to standard 321.

(b). Mechanical Properties (ASTM A403 / ASTM A182 WP321H)

High-Temperature Performance:

Max Operating Temp: ~900°C (1650°F) (continuous service).

Oxidation Resistance: Excellent due to high Cr content.

Creep Strength: Superior to 304H/316H at temps above 600°C (1112°F).

3. Why Choose a Seamless ("S") 180° Elbow?

• Leak-Proof: No welded seams, reducing failure risks.
• High-Pressure Rating: Ideal for ASME B16.9/B16.11 piping systems.
• Smooth Flow: Minimizes turbulence in U-turn piping layouts.

4. Comparison to Similar Grades

5. Key Applications

Due to its corrosion resistance and high-temperature stability, this elbow is commonly used in:

a) High-Temperature & Corrosive Environments

• Chemical & Petrochemical Plants: Handling acids, chlorides, and other aggressive media.
• Oil & Gas Refineries: High-pressure piping systems, especially where sulfur compounds are present.
• Power Generation (Boilers, Superheaters): Steam lines and exhaust systems operating at elevated temperatures.

b) Food & Pharmaceutical Industries

• Sanitary piping systems where corrosion resistance and cleanability are critical.

c) Aerospace & Automotive Exhaust Systems

• High-temperature exhaust manifolds and piping.

d) Nuclear & Cryogenic Applications

• Used in certain reactor coolant systems due to its stability under radiation and thermal cycling.

Conclusion

The A403 WP321H-S 180° elbow is a critical component for systems requiring heat resistance, corrosion protection, and high structural integrity, especially in power generation, oil/gas, and chemical industries. Its seamless construction and titanium stabilization make it a reliable choice for extreme conditions.
