ASTM A335 P11 Serrated Fin Tube With Gr.11 Fin For Power Plant Boilers And Superheaters

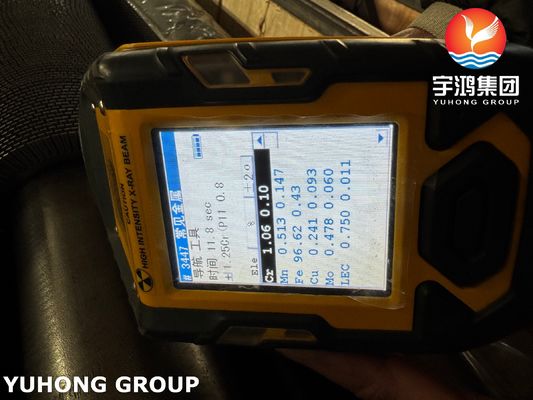

1. A335 P11 Base Tube Composition

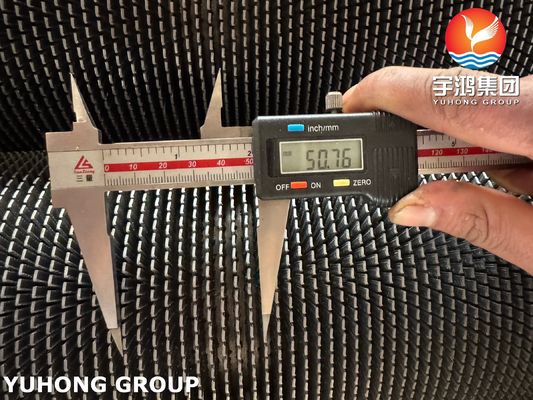

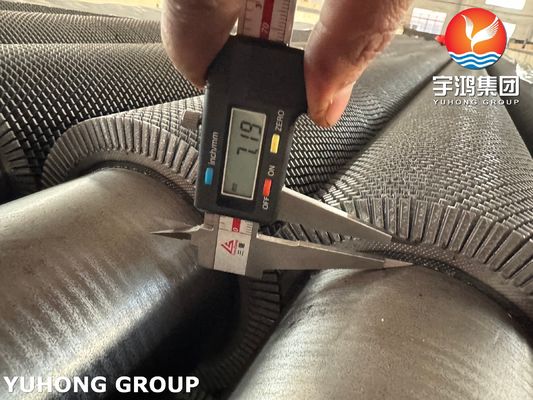

2. A335 P11 Serrated Fin Tube Design

Structure:

Fins are mechanically attached or welded to the A335 P11 base tube in a helical pattern with periodic notches (serrations).

Serrations increase surface area by 8–10× compared to bare tubes and disrupt thermal boundary layers, enhancing turbulence.

Thermal Efficiency:

Serrations create micro-vortices, improving heat transfer rates by 25–40% over smooth fins.

Ideal for viscous fluids (e.g., heavy oils) or low-velocity gases where boundary layer resistance is high.

3. A335 P11 Serrated Fin Tube Manufacturing Process

Base Tube Production:

Seamless manufacturing via hot extrusion, cold drawing, or rotary piercing to ensure uniform wall thickness (2–130 mm).

Heat treatment (annealing or normalizing + tempering) optimizes grain structure.

Fin Attachment:

Extrusion: Aluminum fins cold-forged onto the tube, creating a metallurgical bond.

Welding: High-frequency welding for stainless steel fins; preheating (150–200°C) required for P11 to avoid cracking.

Quality Control:

Hydrostatic testing and non-destructive exams (e.g., eddy current) ensure leak resistance.

4. A335 P11 Serrated Fin Tube Key Applications

Power Plants:
Boiler superheaters/reheaters (e.g., SA-335 Gr.P11 tubes in coal-fired plants).

Petrochemical Industry:
Crackers, reformers, and heat recovery units handling corrosive gases (e.g., H₂S) at 400–550°C.

Enhanced Recovery Systems:
Waste heat boilers where serrated fins mitigate fouling from ash/particulates.

5. A335 P11 Serrated Fin Tube FAQ

1.What is the maximum service temperature for A335 P11 fin tubes?

• Up to 593°C (1,100°F) for continuous service. Above 480°C (900°F), its chromium-molybdenum alloy resists oxidation and creep deformation.

2.Why choose serrated fins over smooth fins?

• 25–40% higher heat transfer due to turbulent airflow from serrations.
• 30% less fouling (ash/soot buildup) in dirty gas applications.
• Ideal for viscous fluids or low-velocity gases (e.g., exhaust systems).

3. Can A335 P11 handle corrosive environments?

• Yes, but with limits:Excellent against steam oxidation and sulfur compounds (e.g., H₂S in refineries).
• Avoid chloride-rich environments (risk of stress corrosion cracking above 400°C).

4. How are fins attached to the base tube?

• Extrusion: Aluminum fins cold-forged onto the tube (metallurgical bond).
• Welding: Stainless steel fins welded using HF techniques (requires 150–200°C preheat for P11).

5. Where is it used most?

• Power plant boilers/superheaters (coal/gas-fired).
• Petrochemical crackers and heat recovery steam generators (HRSG).
• Waste heat boilers with high particulate loads.

Conclusion

A335 P11 serrated fin tubes combine the high-temperature resilience of chromium-molybdenum alloy with optimized heat transfer from serrated fin geometry. They are critical in energy-intensive sectors like power generation and petrochemical processing, where efficiency and material durability are paramount. For detailed specifications (e.g., dimensions: 21.3–762 mm OD; schedules: SCH20–XXS), refer to ASTM/ASME standards.
