ASTM A213 T11 Seamless Tube Chemical Composition

ASTM A213 Material Standard:

Governed by ASME SA213 / ASTM A213. This specification covers seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.

"SA213" denotes the ASME BPVC (Boiler and Pressure Vessel Code) Section II material specification, which is essentially identical to the ASTM A213 specification. For pressure vessel construction (ASME BPVC Section I or VIII), the "SA" prefix is required.

Key Characteristic: Seamless

The tubes are manufactured without a longitudinal weld seam. This is achieved through processes like hot extrusion or rotary piercing followed by pilgering/cold drawing.

Why Seamless? Essential for high-pressure and high-temperature applications in boilers and heat exchangers. A welded seam is a potential weak point prone to failure under severe thermal cycling and stress; seamless construction eliminates this risk.

ASTM A213 T11 Seamless Tube Primary Application: Heat Exchangers (and Boilers)

Heat Exchangers: Specifically designed for use in the tubesheets of heat exchangers operating at elevated temperatures and pressures, commonly found in:

Petrochemical Refineries

Chemical Processing Plants

Power Generation (Heat Recovery Steam Generators - HRSGs, feedwater heaters)

Boiler Components: Also extensively used in:

Boiler Superheaters

Boiler Reheaters

Boiler Economizers (in sections requiring higher temperature resistance than carbon steel)

ASTM A213 T11 Seamless Tube Key Properties & Why Used:

Elevated Temperature Strength: Maintains good tensile and creep strength at temperatures significantly higher than carbon steel (typically up to ~650°C / 1200°F).

Oxidation Resistance: The chromium content provides much better resistance to scaling (oxidation) in steam service compared to carbon steel tubes, leading to longer service life.

Creep Resistance: The molybdenum content enhances resistance to slow, continuous deformation under stress at high temperatures (creep).

Good Fabricability & Weldability: T11 is generally considered weldable with proper procedures (preheat, post-weld heat treatment - PWHT).

Cost-Effectiveness: Offers a good balance between performance and cost compared to higher alloy steels like T22 (2.25Cr-1Mo) or stainless steels (TP304, TP316) for its applicable temperature range.

Manufacturing & Testing Requirements (Per SA213/A213):

Heat Treatment: T11 tubes are always supplied in the annealed condition. Annealing (heating and slow cooling) softens the steel, optimizes ductility, and produces the required microstructure (predominantly ferrite with some carbides).

Chemical Analysis: Strict composition limits for Carbon, Manganese, Phosphorus, Sulfur, Silicon, Chromium, Molybdenum, and other residual elements.

ASTM A213 T11 Seamless Tube Mechanical Testing:

Tensile Test: Minimum requirements for Tensile Strength, Yield Strength, and Elongation.

Hardness Test: Maximum hardness limits are specified to ensure proper ductility and weldability.

Hydrostatic Test: Each tube must withstand a minimum hydrostatic test pressure without leaking.

Nondestructive Examination (NDE):

Eddy Current Test: Mandatory on every tube to detect imperfections like cracks, seams, or inclusions.

Ultrasonic Test: Optional unless specified by the purchaser, used to detect larger internal or external imperfections.

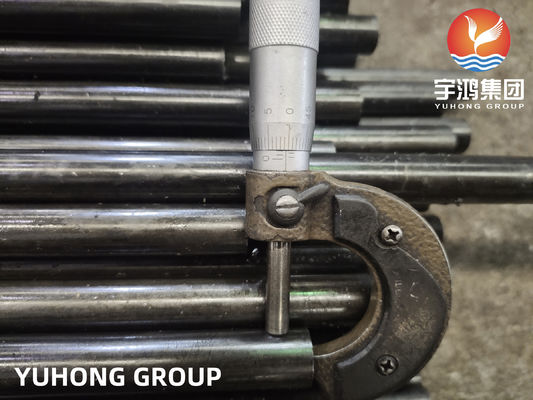

Dimensional Tolerances: Strict controls on Outside Diameter (OD), Wall Thickness (WT), and length tolerances.

Surface Finish: Tube surfaces must be smooth and free from scale and imperfections detrimental to performance.

ASTM A213 T11 Seamless Tube Certification & Marking:

Material Test Reports (MTRs) or Certified Mill Test Reports (CMTRs) are provided, certifying compliance with chemical, mechanical, and test requirements.

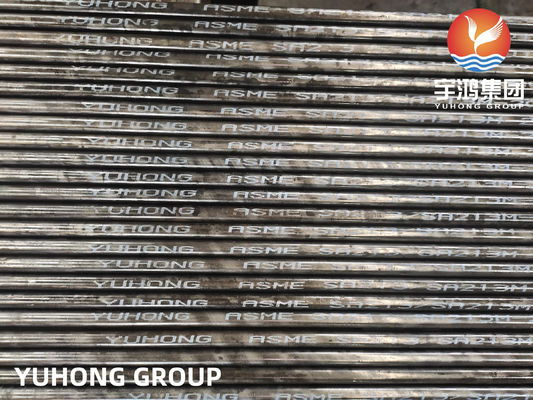

Tubes are typically marked with:

Manufacturer's Name or Brand

SA213 Specification

Grade (T11)

Heat Number (for traceability)

Size (e.g., OD x WT)

"S" denoting Seamless (though inherent in SA213 tube definition)

NDE method used (e.g., "E" for Eddy Current)

In Summary:

An SA213 T11 Seamless Heat Exchanger Tube is a seamless ferritic alloy steel tube made from 1.25% Chromium - 0.50% Molybdenum steel, manufactured according to the strict requirements of ASME SA213/A213. It is supplied in the annealed condition. Its primary use is in high-temperature and high-pressure heat exchangers and boiler components (like superheaters and reheaters), where its elevated temperature strength, oxidation resistance, creep resistance, and seamless integrity make it a reliable and cost-effective choice within its operational temperature range.
