ASTM A192 Heat Exchanger Tube Chemical Composition

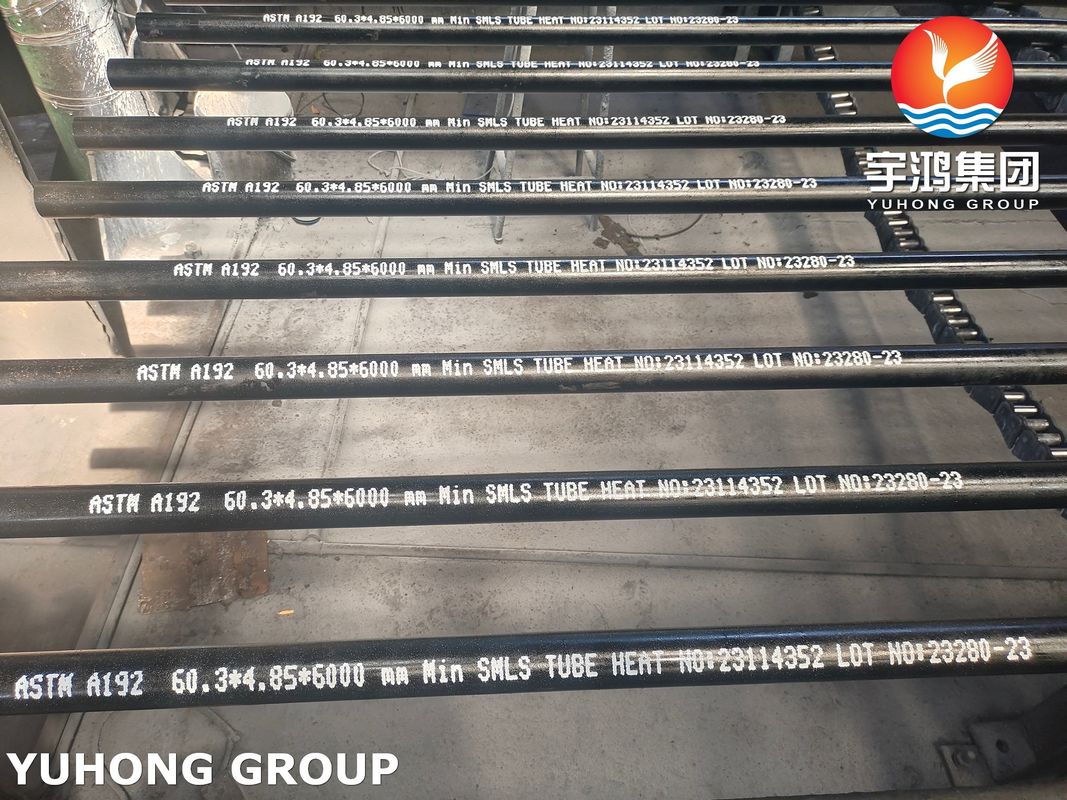

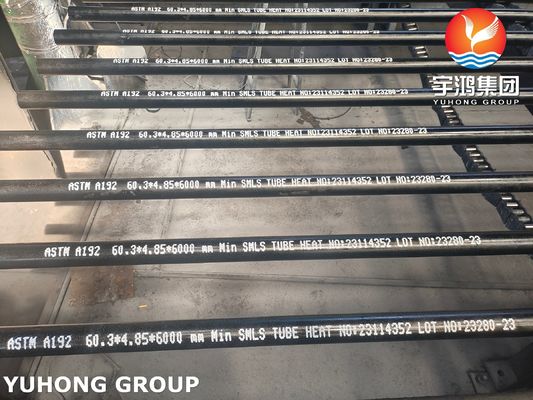

ASTM A192 Seamless Tube Core Definition:
ASTM A192 is a standard specification established by ASTM International covering minimum-wall-thickness, seamless carbon steel boiler and superheater tubes designed specifically for high-pressure service in heat exchangers, particularly water-tube boilers, superheaters, and heat exchangers where reliability under pressure is critical.

Key Characteristics & Requirements:

ASTM A192 Seamless Tube Manufacturing:

Seamless: Tubes are produced without a longitudinal weld seam, typically via hot rotary piercing followed by hot rolling or cold drawing. This eliminates a potential weak point, crucial for high-pressure integrity.

Cold Finished: Often cold-drawn to achieve precise dimensions, smooth surface finish, and enhanced mechanical properties.

Heat Treatment: Supplied in the normalized or stress-relieved condition. This heat treatment refines the grain structure, enhances strength and ductility, and relieves internal stresses from manufacturing.

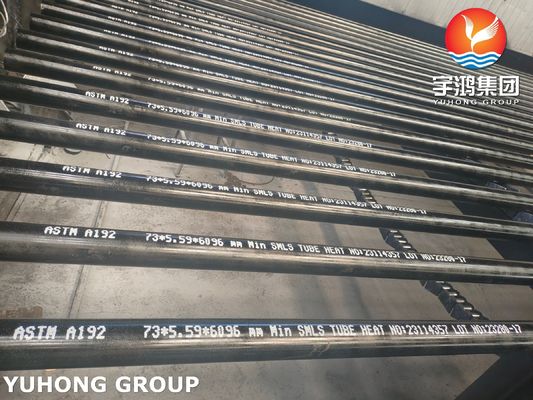

ASTM A192 Seamless Tube Dimensions & Tolerances:

Minimum Wall Thickness: This is the defining characteristic. The standard specifies minimum wall thicknesses for various outside diameters (OD). The actual wall thickness must be at least this minimum, but can be thicker (within tolerances). Tubes are often ordered based on their minimum wall.

Tolerances: Strict dimensional tolerances are specified for Outside Diameter (OD) and Wall Thickness to ensure proper fit and performance in tube sheets and during expansion/rolling.

Mechanical Properties:

Tensile Strength: Minimum requirement specified (e.g., min 47 ksi / 325 MPa).

Yield Strength: Minimum requirement specified (e.g., min 26 ksi / 180 MPa).

Elongation: Minimum percentage elongation required to ensure adequate ductility for bending and tube expansion during installation.

ASTM A192 Seamless Tube Testing & Inspection (Mandatory):

Hydrostatic Test or Nondestructive Electric Test (NDE): Every tube must be subjected to either a hydrostatic pressure test (to detect leaks) or an approved NDE method (like eddy current testing) to ensure soundness and leak-tightness.

Flattening Test: Samples are flattened to a specified distance to demonstrate ductility and the absence of flaws without cracking or laminations.

Flare Test: Samples are flared to a specified percentage increase in diameter to demonstrate ductility and suitability for expansion into tube sheets.

Hardness Test: Often performed to ensure consistency and correlate with tensile strength.

Tension Test: Determines tensile strength, yield strength, and elongation.

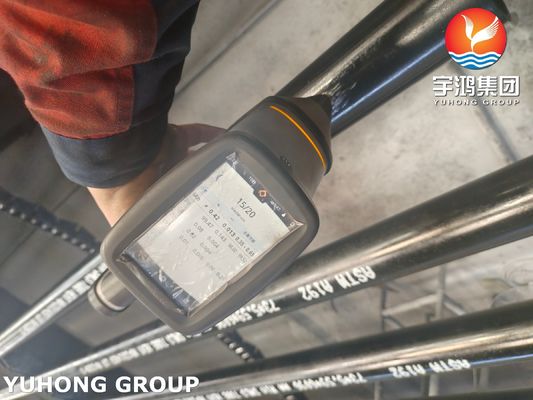

Chemical Analysis: Verifies the composition meets specified limits.

Visual Inspection: Checks for surface imperfections like seams, laps, cracks, or scale beyond acceptable limits.

Surface Condition:

Reasonably smooth finishes free from scale are required. Minor surface imperfections are allowed provided wall thickness remains above minimum and they don't penetrate deeply. Cleanliness is important for heat transfer efficiency.

ASTM A192 Seamless Tube Primary Applications:

High-Pressure Heat Exchangers: Especially where the tube-side fluid is under high pressure.

Water-Tube Boilers: Tubes containing water/steam mixture within the boiler furnace.

Superheaters: Tubes where saturated steam from the boiler drum is further heated (superheated) to higher temperatures.

Economizers: Sections preheating feedwater using flue gas heat.

Other High-Pressure Process Heat Exchangers: Where the combination of pressure rating, temperature capability, and cost-effectiveness of carbon steel is suitable.

Why Choose ASTM A192 Seamless Tube?

High Pressure Capability: Designed specifically for the demanding pressures inside boilers and superheaters.

Reliability: Seamless construction and rigorous testing ensure integrity under pressure.

Good Thermal Conductivity: Carbon steel efficiently transfers heat.

Weldability & Formability: The low-carbon composition facilitates welding and tube expansion.

Cost-Effectiveness: Compared to alloy steels, carbon steel offers a good balance of performance and cost for moderate-temperature, high-pressure steam/water service.

Summary:
ASTM A192 specifies seamless, low-carbon steel tubes with a defined minimum wall thickness, manufactured to precise dimensions, rigorously tested (hydro/NDE, flattening, flare, tension, chemistry), and heat treated. They are the workhorse material for high-pressure water/steam-containing tubes in boilers, superheaters, and similar heat exchangers operating at moderate temperatures, valued for their pressure integrity, heat transfer efficiency, and cost-effectiveness.
