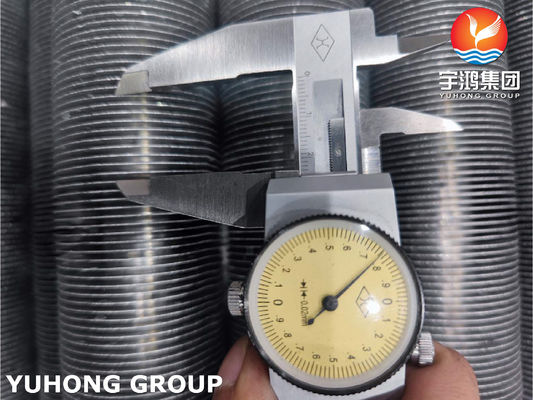

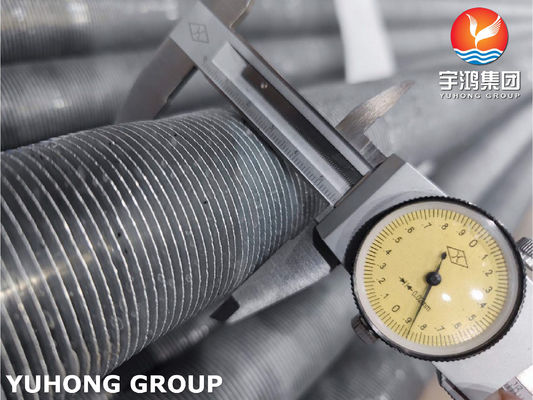

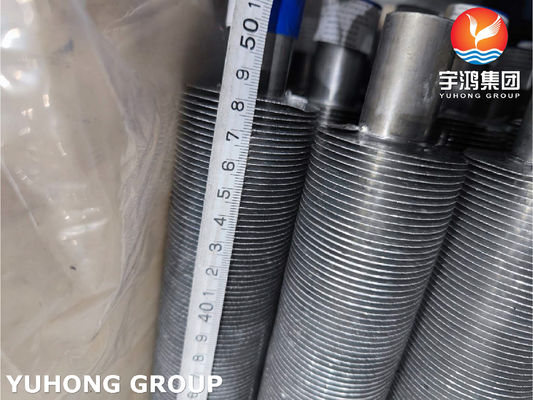

ASTM B163 Incoloy 825 Extruded Fin Tube With Aluminum Fin For Air-cooled Exchangers

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable

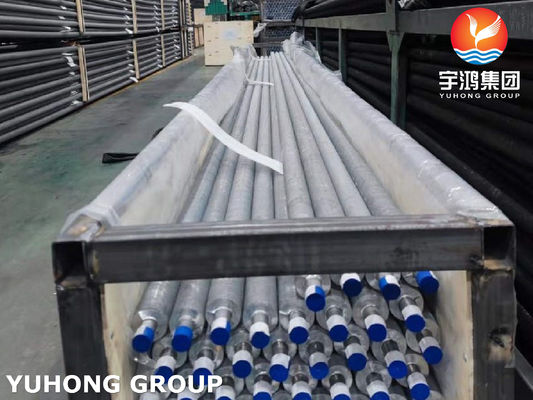

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Bare Tube Specification& Material:

ASTM B163 Incoloy 825

Bare Tube Diameter:

8mm-51mm

Fin Type:

Extruded Fin Tube

Application:

Air-cooled Exchangers, Refinery Air Cooler, Oil Coolers, Hydraulic Coolers, And Air Coolers

Supply Ability:

According to Clients' requirements

Product Description

1. What is ASTM B163 Incoloy 825 Extruded Fin Tube with Aluminum Fin?

The ASTM B163 Incoloy 825 Extruded Fin Tube with Aluminum Fin is a premium bimetallic heat transfer solution engineered for extreme environments. It combines a seamless nickel-iron-chromium alloy base tube (ASTM B163 Incoloy 825) with integrally extruded aluminum fins through a high-pressure thermal process. This monolithic structure eliminates interfacial resistance, achieving 98% metallurgical bonding for unmatched thermal efficiency (45% higher than welded fins) and corrosion resistance in acidic, chloridic, and high-temperature applications up to 260°C (500°F).

2. Chemical & Mechanical Properties

Chemical Composition (Incoloy 825 Base Tube per ASTM B163)

Element	Content (%)	Key Function
Nickel (Ni)	38–46	Acid resistance
Chromium (Cr)	19.5–23.5	Oxidation resistance
Iron (Fe)	≥ 22	Matrix stability
Molybdenum (Mo)	2.5–3.5	Pitting resistance
Copper (Cu)	1.5–3.0	Sulfuric acid resistance
Titanium (Ti)	0.6–1.2	Stabilization
Carbon (C)	≤ 0.05	Weldability

Mechanical Properties (System Performance)

Property	Incoloy 825 Base	Aluminum Fin
Tensile Strength	≥ 586 MPa	186 MPa
Yield Strength	≥ 241 MPa	145 MPa
Max Service Temp.	540°C	260°C
Corrosion Resistance	★★★★★ (H₂SO₄, HCl, phosphoric acid)	★★★☆ (Anodized)
Thermal Expansion	14.0 μm/m·°C	23.6 μm/m·°C

3. Key Applications & Competitive Advantages

· Chemical Processing: Heaters in sulfuric acid regeneration units, HCl coolers.

· Marine & Offshore: Seawater-cooled condensers on ships/rigs (resists pitting/crevice corrosion).

· Waste-to-Energy: Boiler tubes in waste incinerators (handles HCl/SO₂ flue gases).

· Oil Refining: Crude oil preheaters in CDU/VDU units.

· LNG Processing: Cryogenic heat exchangers (-196°C to 200°C thermal cycling).

4. Why Engineers Prefer Our Extruded Tubes:
· Zero Thermal Barrier: 30% higher heat flux vs. welded fins (per HTRI Journal).
· Fail-Safe Design: Eliminates fin detachment risk in vibration/vacuum service.
· Lifecycle Cost Saving: 2x longer service life than carbon steel tubes in HCl vapor.
· Customization: Fin height (12–25 mm), thickness (0.8–2.0 mm), and helix angle optimization.

ASTM B163 Incoloy 825 Extruded Fin Tube With Aluminum Fin For Air-cooled Exchangers 0
