ASTM A249 TP304 L-Type Wound Finned Tube With Al1060 For HVAC Systems

Brand Name:	Yuhong
MOQ:	200-500KGS
Price:	Negotiable

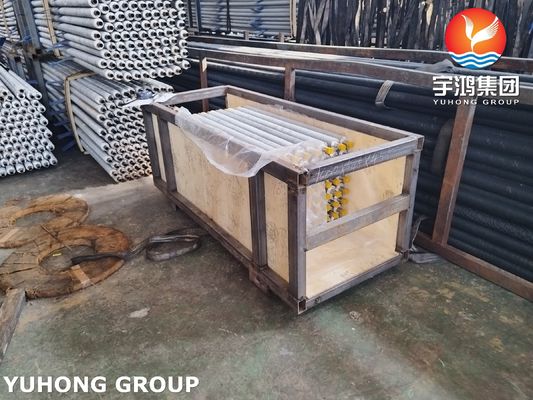

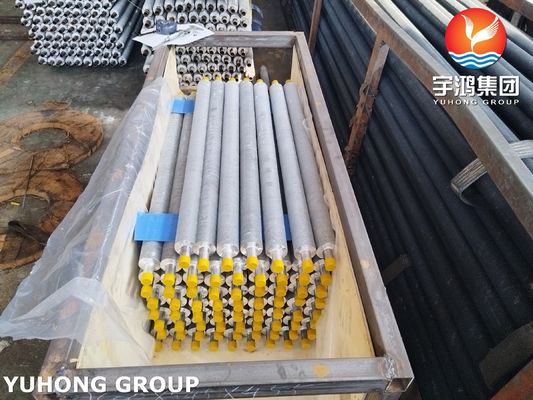

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Bare Tube Diameter:

16-63 MM

Fin Pitch:

2.1-5 MM

Fin Height:

<17 MM

Fin Thick:

~0.4 MM

Application:

HVAC Systems, Industrial Cooling, Air Coolers And Heat Exchangers

Bare Tube Specification&Material::

ASTM A249 TP304

Supply Ability:

According to Clients' requirements

Highlight:

HVAC Systems Spiral Finned Tube

Al1060 Spiral Finned Tube

ASTM A249 Spiral Finned Tube

Product Description

1. What is ASTM A249 TP304 L-Type Wound Finned Tube with Al1060?

The ASTM A249 TP304 L-Type Wound Finned Tube is a high-performance heat transfer component engineered for corrosive and high-vibration environments. It consists of a welded austenitic stainless steel base tube (ASTM A249 TP304, 18–20% Cr, 8–10.5% Ni) spirally wound with Aluminum 1060 fin strips (99.6% Al) using an L-foot mechanical locking process. The "L-Type" design features fin roots extruded into precision grooves on the tube surface under high pressure, creating a seamless, gap-free bond that eliminates thermal resistance and prevents fin loosening. This hybrid structure combines TP304’s chloride resistance with Al1060’s ultra-high thermal conductivity (235 W/m·K), ensuring reliability in aggressive media.

2. Chemical & Mechanical Properties

Chemical Properties

Component	Chemical Composition	Key Features
ASTM A249 TP304 Base Tube	• Cr: 18–20%, Ni: 8–10.5%, C: ≤0.08%, Mn: ≤2.0%, Fe: Balance.	• Excellent pitting/crevice corrosion resistance. • Withstands organic acids and chlorides.
Aluminum 1060 Fins	• Al: 99.6% min, Fe+Si: ≤0.40%, Cu: ≤0.05%.	• Superior thermal conductivity (235 W/m·K). • Non-toxic and oxidation-resistant.
Synergy	• Anodized fin roots prevent galvanic corrosion at steel-aluminum interfaces.	• Stable in pH 3–12 environments.

Mechanical Properties

Component	Mechanical Performance	Key Features
ASTM A249 TP304 Base Tube	• Tensile Strength: 515–860 MPa • Yield Strength: 205 MPa (min) • Hardness: 70–90 HRB.	• Pressure rating: 25 MPa at 150°C. • Cryogenic toughness (-196°C).
Aluminum 1060 Fins	• Tensile Strength: 70–110 MPa • Elongation: 15–25% • Hardness: 23 HB.	• Lightweight (2.71 g/cm³) for 30% weight reduction.
Bond Performance	• Shear Strength: ≥40 MPa. • Vibration Resistance: No fin loosening at 50 Hz.	• Thermal cycling stable (ΔT 300°C, 5,000 cycles).

3. Key Applications

·Chemical Processing: Sulfuric acid coolers, chlorine condensers, and solvent reactors.

·Food & Beverage: CIP-compliant pasteurizers and fermentation tanks (FDA/3-A certified).

·Power Plants: Flue gas heat recovery boilers and economizers.

·Marine Systems: Seawater-cooled condensers and desalination units.

·HVAC/R: Industrial chillers and heat pumps for humid environments.

4. Why Choose This L-Type Finned Tube?
·15% Higher Heat Transfer vs. standard spiral fin tubes.
·Zero Fin Lift-Off: L-foot locking ensures permanent bonding.
·40% Lighter than solid fin designs, reducing structural costs.
·Certified Quality: ASTM A249, ASME SA-249, ISO 9001, and PED 2014/68/EU.
·20-Year Service Life in saltwater/acid vapor environments.

ASTM A249 TP304 L-Type Wound Finned Tube With Al1060 For HVAC Systems 0
