ASTM A213 T9 Alloy Steel Seamless Furnace and Heat Exchanger Tubes

Brand Name:	Yuhong
Model Number:	ASTM A213 T9
MOQ:	1TON
Price:	Negotiable
Packaging Details:	Ply-wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Furnace And Heat Exchanger Tubes

Standard:

ASTM A213

Material:

Size And Length:

According To Clients' Need

Packing:

Ply-wooden Case

For Heat Exchanger / Boiler / Furnaces,etc

Supply Ability:

1000 tons/month

Highlight:

Heat Exchanger Alloy Steel Seamless Tubes

Furnace Alloy Steel Seamless Tubes

ASTM A213 T9 Seamless Tubes

Product Description

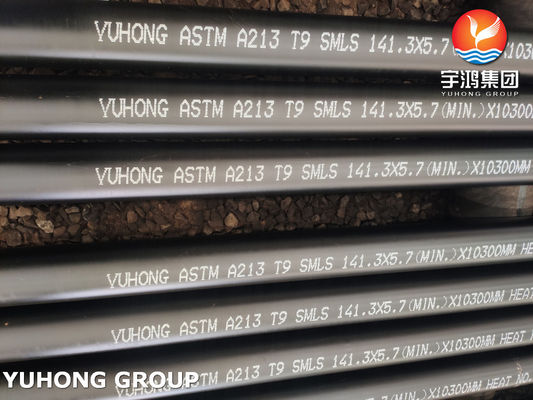

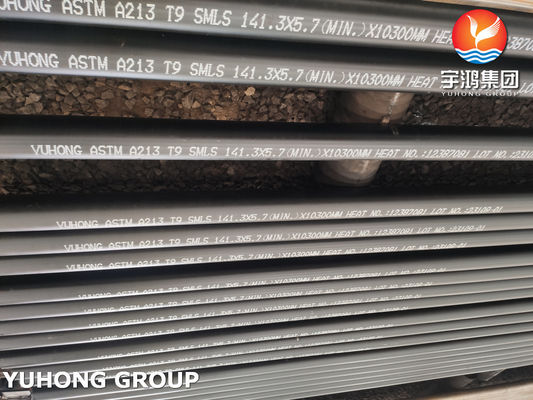

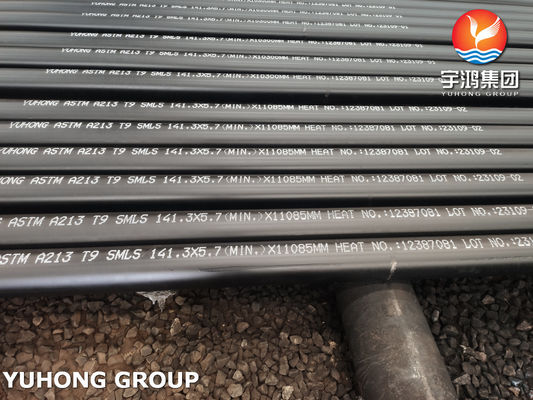

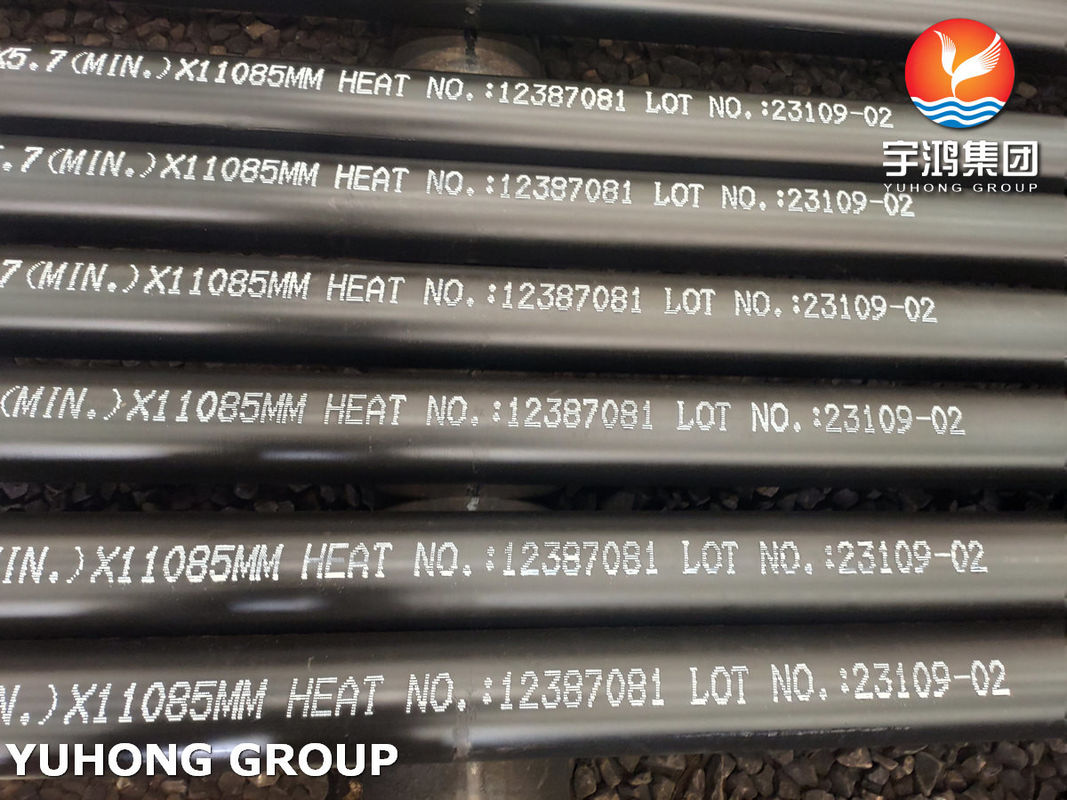

ASTM A213 T9 Alloy Steel Seamless Furnace and Heat Exchanger Tubes

ASME SA213/ASTM A213 This speciﬁcation covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, TP321, etc. ASTM A213 T9 (SA213 T9) is a chromium-molybdenum (Cr-Mo) alloy steel specifically designed for high-temperature and high-pressure environments. Its unique composition (9% Cr, 1% Mo) provides excellent oxidation resistance, creep strength, and corrosion resistance.

Chemical Composition (%) max

Carbon: 0.15

Manganese: 0.30-0.60

Phosphorus: 0.025

Sulfur: 0.025

Silicon: 0.25-1.00

Chromium: 8.0-10.0

Molybdenum: 0.90-1.10

Mechanical Properties

Subcritical Annealing /Tempering Temperature,min or range : 1250 °F [ 675°C ]

Tensile Strength, min. : 60ksi [415MPa ] ; Yield Strength, min.: 30ksi [ 205MPa ]

Elongation in 2 in. or 50mm, min.: 30% ; Brinell/Vickers: 179HBW/190HV ; Rockwell: 89HRB

Advantages

Better Oxidation Resistance than T11/T22 at higher temps.

Higher Creep Strength compared to carbon steel.

Good Weldability (though pre/post-weld heat treatment is needed).

Cost-Effective compared to stainless steels (e.g., 304H, 321H) for certain temp ranges.

Applications

Power Generation (Boilers & Superheaters)

Superheater & Reheater Tubes: T9 tubes withstand steam temperatures up to 650°C (1200°F) without excessive scaling.

Boiler Tubes: Used in high-pressure boilers where carbon steel would fail due to oxidation.

Heat Recovery Steam Generators (HRSGs): Resists thermal fatigue in combined-cycle power plants.

Petrochemical & Refinery Applications

Furnace Tubes & Heat Exchangers: Handles sulfur-rich environments better than low-alloy steels.

Catalyst Tubes in Refineries: Resists carburization and hydrogen attack at high temps.

Chemical Processing Plants

High-Temperature Process Piping: Used where corrosive gases or steam are present.

Thermal Cracking Units: Maintains strength under cyclic heating conditions.

ASTM A213 T9 Alloy Steel Seamless Furnace and Heat Exchanger Tubes 0
