Corrugated Fin Tubes Stainless Steel TP310S For Heat Exchangers

Brand Name:	Yuhong
Model Number:	TP310S
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Type:

Corrugated Fin Tubes

Material:

TP310S

Size And Length:

According To Clients' Need ( Length 500mm Min )

Radiator / Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Stainless Steel Corrugated Fin Tubes

TP310S Corrugated Fin Tubes

Heat Exchangers Corrugated Fin Tubes

Product Description

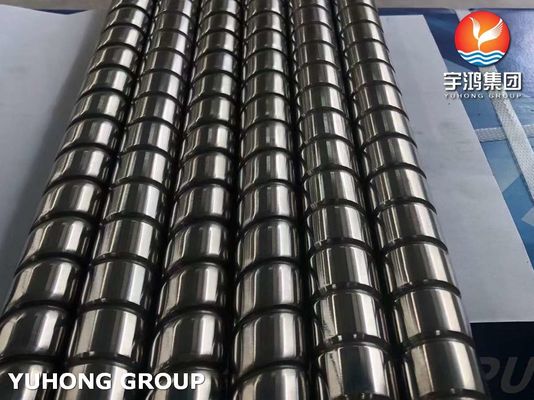

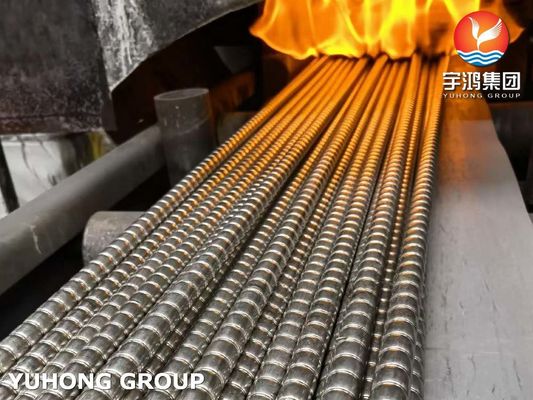

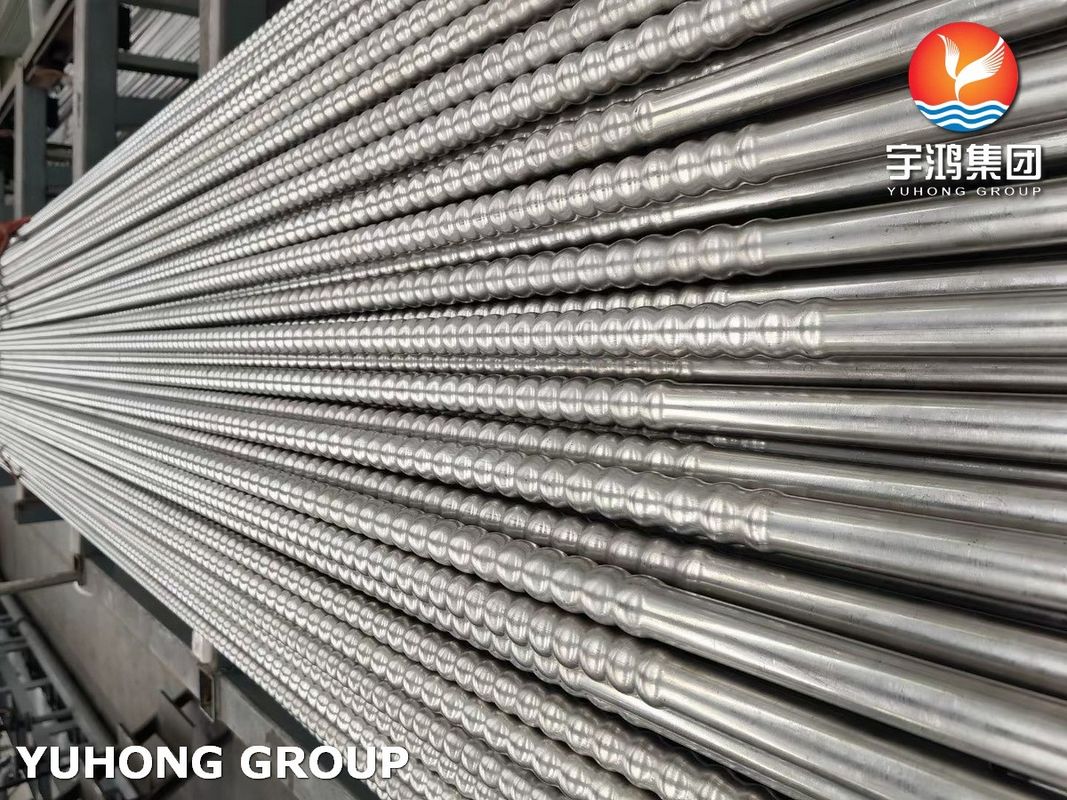

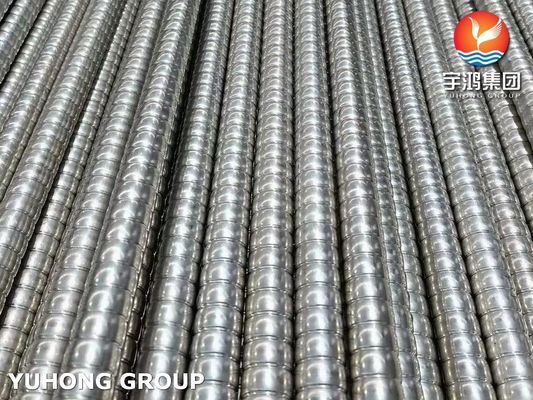

Corrugated Fin Tubes Stainless Steel TP310S For Heat Exchangers

Difinition

Corrugated fin tubes are specialized heat exchange components used in various industrial applications, particularly in heat exchangers. They consist of a tube with fins that are corrugated or wavy in shape, which enhances heat transfer efficiency. TP310S is a high-grade austenitic stainless steel known for its excellent oxidation resistance, high-temperature strength, and corrosion resistance. Corrugated fin tubes made from stainless steel TP310S play a critical role in heat exchangers, particularly in high-temperature and corrosive environments.

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni	Mo
TP310S	0.08	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0	0.75

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP310S	75ksi (515 MPa)	30ksi (205 MPa)	35%

Key Properties of TP310S Stainless Steel

Oxidation Resistance: It forms a protective chromium oxide layer, which prevents oxidation and scaling at high temperatures.

Mechanical Strength: It retains its mechanical properties even at elevated temperatures, ensuring durability and reliability.

High-Temperature Resistance: TP310S can withstand temperatures up to 1100°C (2012°F), making it ideal for applications involving extreme heat.

Corrosion Resistance: TP310S is highly resistant to corrosion from acids, alkalis, and other aggressive chemicals, making it suitable for harsh environments.

Advantages of TP310S Corrugated Fin Tubes In Heat Exchangers

TP310S is ideal for heat exchangers operating in aggressive environments, such as those involving sulfur compounds, chlorides, or high-temperature steam.

The corrugated fin design increases the surface area for heat transfer, improving the overall efficiency of the heat exchanger.The corrugated design helps reduce fouling (deposits on the heat transfer surfaces) by promoting turbulence, which minimizes the buildup of contaminants.

In environments where the heat exchanger is exposed to corrosive gases, acids, or high-temperature oxidation (e.g., flue gases in boilers or chemical processing), TP310S ensures long-term durability and prevents degradation.

TP310S is specifically chosen for applications where the heat exchanger operates at very high temperatures, such as in power plants, petrochemical industries, or waste heat recovery systems.

Applications

Power Generation / Petrochemical Industry / Waste Heat Recovery / High-Temperature Furnaces / Aerospace and Nuclear Industries
