ASTM A249 TP316L Stainless Steel Welded Tubes For Marine Engineering

Brand Name:	Yuhong
Model Number:	ASME SA249 TP316L
MOQ:	1TON
Price:	Negotiable
Packaging Details:	Ply-wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Stainless Steel Welded Tubes

Standard:

ASTM A249

Material:

TP316L

Size And Length:

According To Clients' Need

For Heat Exchanger / Reactors / Furnaces / Piping Systems,etc

Packing:

Ply-wooden Case

Supply Ability:

1000 tons/month

Highlight:

TP316L Stainless Steel Welded Tubes

ASTM A249 Stainless Steel Welded Tubes

Marine Engineering Stainless Steel Welded Tubes

Product Description

ASTM A249 TP316L Stainless Steel Welded Tubes For Marine Engineering

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni	Mo
TP316L	0.03	2.00	0.045	0.030	1.00	16.0-18.0	10.0-14.0	2.0-3.0

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP316L	70ksi (485 MPa)	25ksi (170 MPa)	35%

ASME SA249 This speciﬁcation covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes. ASTM A249 TP316L welded tubes play a critical role in marine engineering due to their exceptional corrosion resistance, durability, and ability to withstand harsh marine environments.

Corrosion Resistance: High resistance to chloride-induced pitting and crevice corrosion.

Durability: Long service life in harsh marine environments.

Mechanical Strength: Capable of withstanding high pressures and mechanical stress.

Hygienic Qualities: Suitable for systems requiring clean and uncontaminated fluids.

Applications For Marine Engineering

Seawater Desalination Systems

Role: Used in heat exchangers, condensers, and piping systems.

Reason: Resistant to chloride-induced corrosion, ensuring long-term performance in seawater environments.

Offshore Oil and Gas Platforms

Role: Utilized in pipelines, structural components, and hydraulic systems.

Reason: Withstands corrosive seawater, high pressures, and extreme weather conditions.

Shipbuilding and Repair

Role: Used in cooling systems, fuel lines, and exhaust systems.

Reason: Provides excellent resistance to saltwater corrosion and mechanical stress.

Marine Heat Exchangers

Role: Key component in heat exchangers for cooling and heating systems.

Reason: Maintains efficiency and durability in corrosive seawater environments.

Others for example: Subsea Equipment,Marine Propulsion Systems,etc

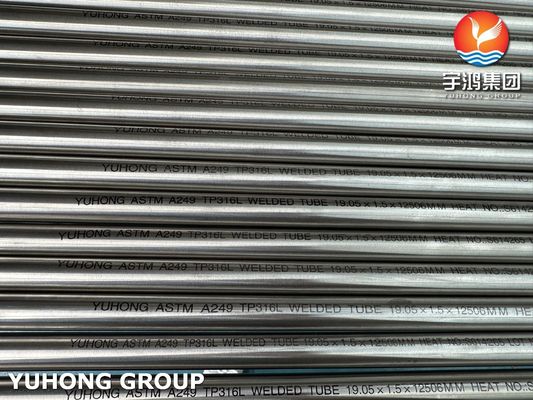

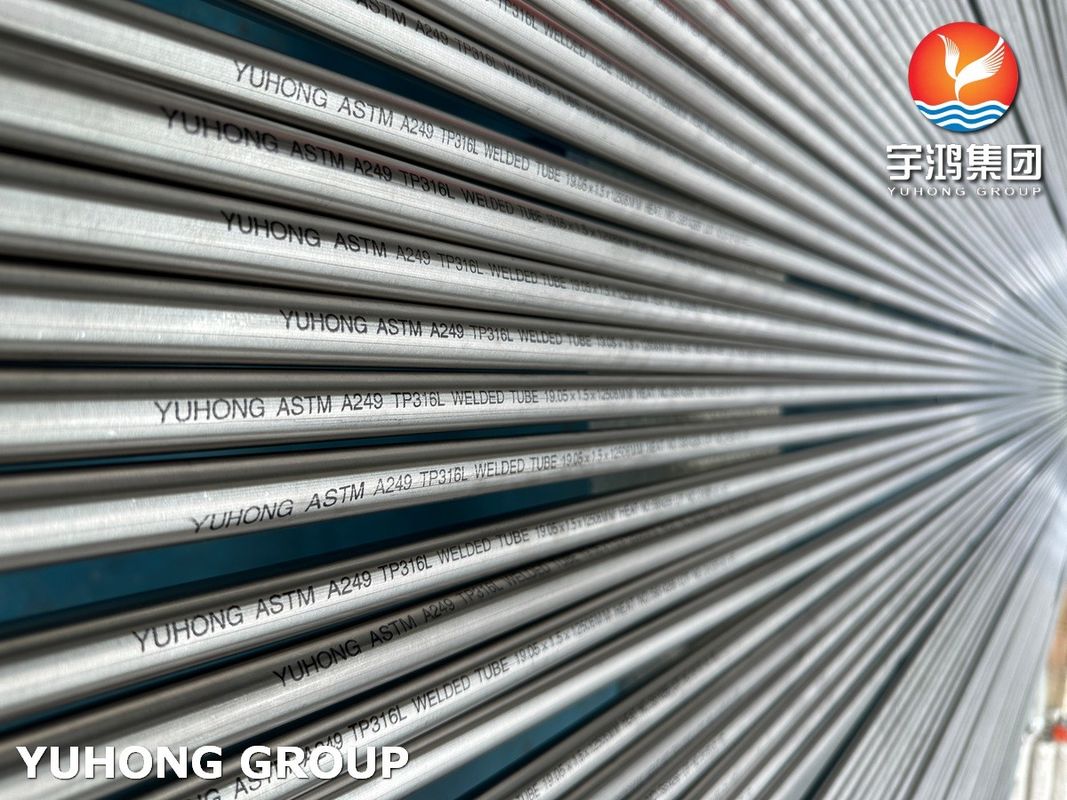

ASTM A249 TP316L Stainless Steel Welded Tubes For Marine Engineering 0

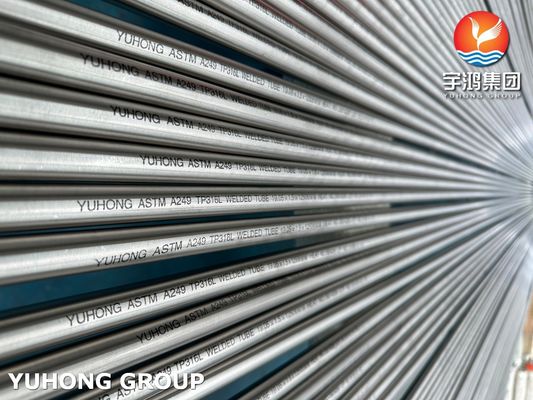

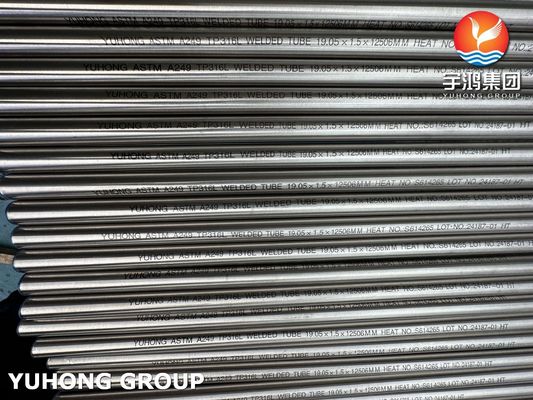

ASTM A249 TP316L Stainless Steel Welded Tubes For Marine Engineering 1
