ASME SA249 TP304 Stainless Steel Welded Tubes For Heat Exchanger Equipment

Brand Name:	Yuhong
Model Number:	ASME SA249 TP304
MOQ:	1TON
Price:	Negotiable
Packaging Details:	Ply-wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Heat Exchanger Tubes

Heat Exchanger Tubes Standard:

ASME SA249

Heat Exchanger Tubes Material:

TP304

Heat Exchanger Tubes Size And Length:

According To Clients' Need

Heat Exchanger Tubes Use:

For Heat Exchanger / Boiler / Furnaces,etc

Heat Exchanger Tubes Packing:

Ply-wooden Case

Supply Ability:

1000 tons/month

Highlight:

TP304 Stainless Steel Welded Tubes

ASME SA249 Stainless Steel Welded Tubes

Product Description

ASME SA249 TP304 Stainless Steel Welded Tubes For Heat Exchanger Equipment

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni
TP304	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP304	75ksi (515 MPa)	30ksi (205 MPa)	35%

ASME SA249 This speciﬁcation covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes. TP304 steel, a common austenitic stainless steel containing 18% chromium and 8% nickel, known for its excellent corrosion resistance and mechanical properties.

Key Features Suitable For Heat Exchangers

Corrosion Resistance: SA249 welded tubes, especially those made from TP304 or TP316L stainless steel, offer excellent resistance to corrosion caused by fluids, chemicals, and high-temperature environments. This ensures long-term durability and reliability in heat exchanger applications.

High-Temperature Strength: These tubes maintain their structural integrity and mechanical properties at elevated temperatures, making them ideal for heat exchangers operating under high thermal stress.

Thermal Conductivity: Stainless steel tubes provide efficient heat transfer, which is essential for the effective operation of heat exchangers.

Leak Resistance: The welded construction of A249 tubes ensures a tight seal, minimizing the risk of leaks and cross-contamination between fluids.

Pressure Resistance: These tubes are designed to withstand high internal and external pressures, making them suitable for demanding heat exchanger applications.

Cleanability and Hygienic Properties: The smooth surface of SA249 tubes prevents fouling and makes them easy to clean, which is particularly important in industries like food, pharmaceuticals, and chemicals.

Applications In Heat Exchangers

Industrial Heat Exchangers: Used in chemical plants, refineries, and power generation facilities to transfer heat between process fluids.

HVAC Systems: Employed in heating, ventilation, and air conditioning systems for efficient heat exchange.

Food and Beverage Industry: Used in pasteurizers, sterilizers, and other heat exchange equipment where hygiene and corrosion resistance are critical.

Marine and Offshore: Utilized in heat exchangers for cooling systems in ships and offshore platforms, where resistance to saltwater corrosion is essential.

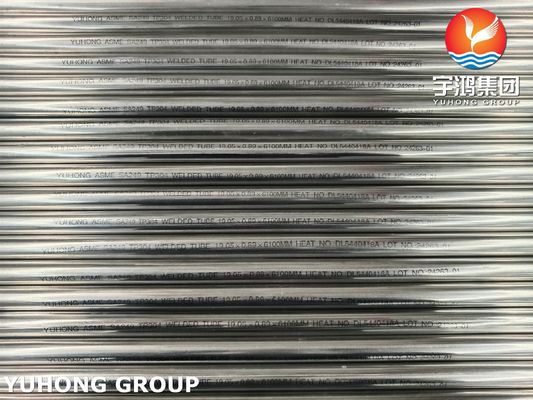

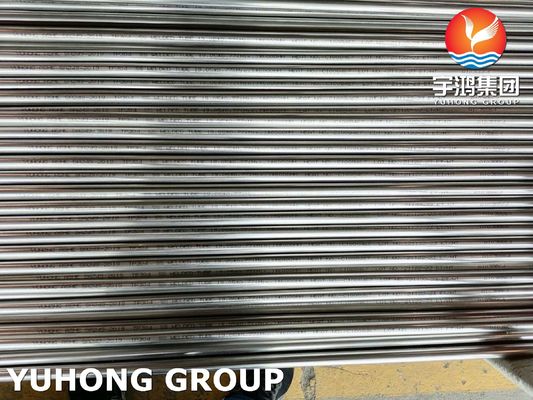

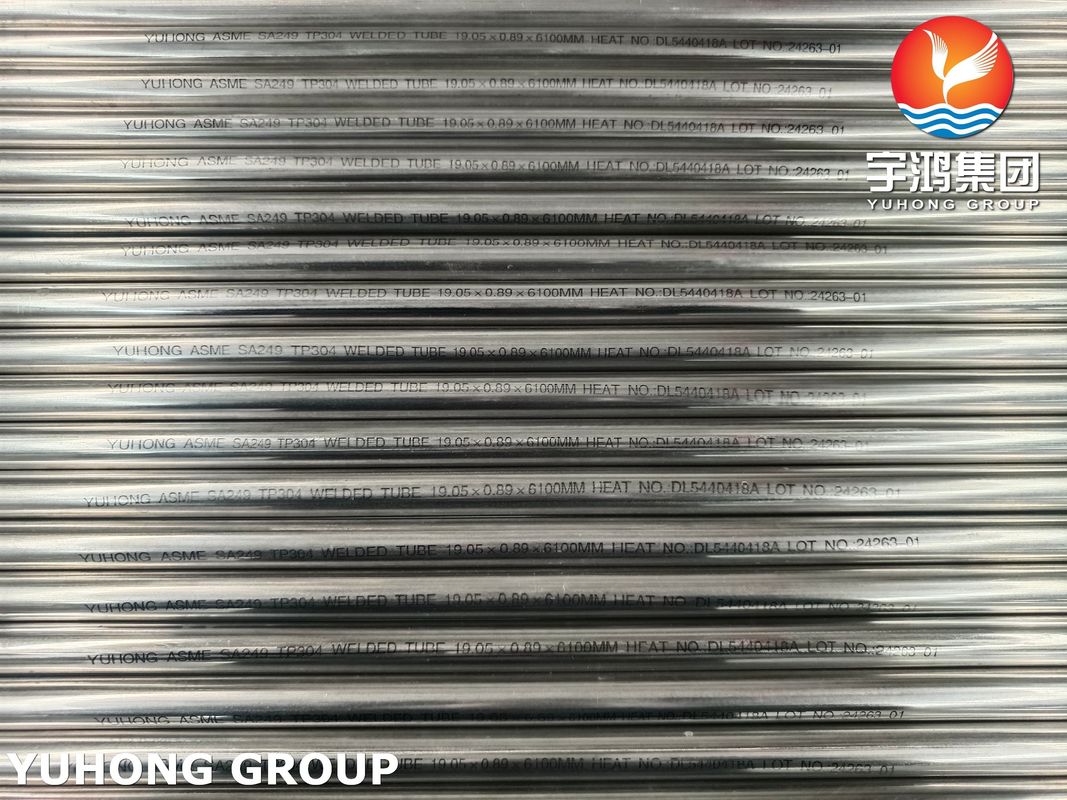

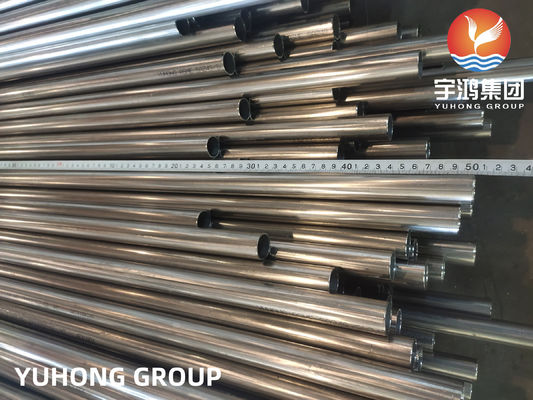

ASME SA249 TP304 Stainless Steel Welded Tubes For Heat Exchanger Equipment 0

Ratings & Review

Overall Rating

4.3

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

33%

4 stars

67%

3 stars

2 stars

1 stars

All Reviews

Pieter

South Africa Dec 17.2025

Helpful (4)

With high firebox temps and some sour gas in the mix, regular carbon tubes don't last. These have been solid.

A*a

Morocco Nov 20.2025

Helpful (1)

The material compliance with ASTM A269 and the use of TP316L grade give us confidence in its durability and safety.

Y*t

Kazakhstan Apr 19.2025

Helpful (5)

Using these in oil and gas heat exchangers. Checked the material reports and everything is perfect. These extruded tubes have high strength, making installation a breeze. The seller was patient and helped with all our technical questions.
