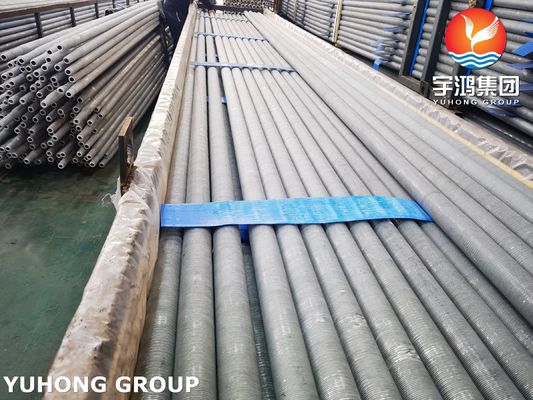

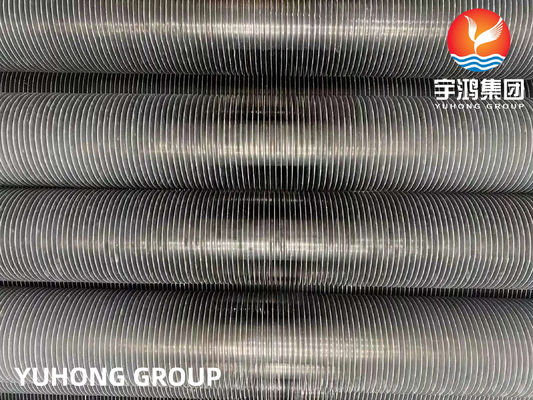

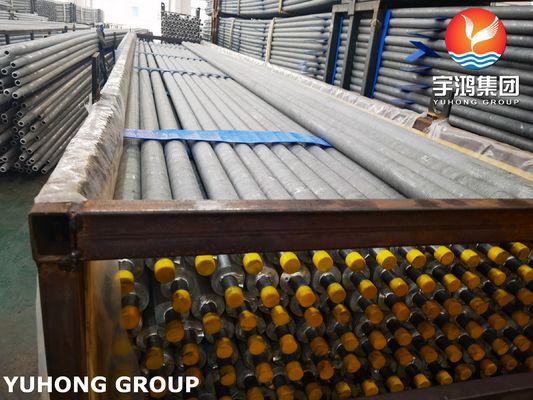

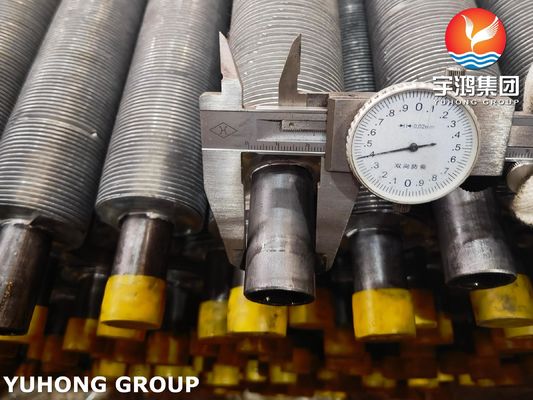

Name: Carbon Steel ASTM A179 Extruded Fin Tube With Al-1060 For Air Cooled Condenser
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASTM A179
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Tube Material:

A179

Fin Material:

Al1060, Al1100

Fin Type:

Extruded

Fin Height:

15.875mm

Fin Thickness:

0.4mm

FPI:

Highlight:

Carbon Steel A179 Extruded Fin Tube

Air Cooled Condenser Extruded Fin Tube

Aluminium 1060 Extruded Fin Tube

Product Description

Carbon Steel ASTM A179 Extruded Fin Tube With Al-1060 For Air Cooled Condenser

Key Features:

Base Tube Material: Carbon Steel A179, offering good strength, heat transfer properties, and cost-effectiveness, commonly used in air-cooled condenser systems.
Fin Material: Aluminum 1060, providing excellent thermal conductivity, corrosion resistance, and light weight, ideal for high-efficiency heat transfer in air-cooled condensers.
Fin Type: Extruded Fins, designed to enhance heat dissipation by maximizing surface area for air-to-surface heat exchange.
Application: Specifically engineered for air-cooled condensers, helping to cool gases or fluids in industrial, HVAC, and power generation systems.

Technical Specifications:

Property	Base Tube (Carbon Steel A179)	Fin Material (Aluminum 1060)
Outer Diameter (OD)	19.05 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.2 mm - 3.0 mm	-
Fin Thickness	-	0.5 mm - 1.5 mm
Fin Height	-	10 mm - 40 mm
Fin Attachment	Extruded and bonded to base tube	-

Chemical Composition:

Element	Carbon Steel A179 (Base Tube)	Aluminum 1060 (Fin Material)
Carbon (C)	≤ 0.10%	≤ 0.03%
Manganese (Mn)	0.30% - 0.60%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Chromium (Cr)	≤ 0.30%	-
Nickel (Ni)	≤ 0.40%	-
Aluminum (Al)	-	≥ 99.0%

Mechanical Properties:

Property	Carbon Steel A179 (Base Tube)	Aluminum 1060 (Fin Material)
Tensile Strength	335 - 485 MPa	70 - 110 MPa
Yield Strength	≥ 205 MPa	35 - 55 MPa
Elongation	≥ 30%	≥ 20%

Advantages:

Efficient Heat Transfer: The extruded fin design maximizes surface area, increasing heat dissipation and improving overall performance in air-cooled condensers.
Corrosion Resistance: Aluminum 1060 fins are resistant to corrosion, providing a long-lasting and durable solution for air-cooled systems.
Cost-Effective: Carbon steel A179 base tube is a cost-effective material choice while maintaining good mechanical properties.
Lightweight and Durable: Aluminum fins reduce the overall weight of the system while maintaining strength and heat transfer efficiency.

Applications:

Air-Cooled Condensers: Ideal for use in cooling applications in HVAC systems, petrochemical plants, and power generation plants.
Chillers: For efficient cooling in industrial refrigeration systems.
Heat Exchangers: Used in applications where efficient air-based heat dissipation is required.
HVAC Systems: Cooling systems for both residential and commercial buildings.

Carbon Steel ASTM A179 Extruded Fin Tube With Al-1060 For Air Cooled Condenser 0
