Extruded Fin Tube

Extruded Fin Tube With Base Tube ASTM A269 TP304 AL1060 Fin Applied For Heat Exchanger

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Ms. Ada Zhu (Asian Marketing Seller)

ada@steelseamlesspipe.com

+8619906384797

Contact Now

Extruded Fin Tube With Base Tube ASTM A269 TP304 AL1060 Fin Applied For Heat Exchanger

Brand Name:	Yuhong
Model Number:	ASTM A269 TP304
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply - Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Standard:

ASTM A269，ASME SA269，JIS G3459，JIS G3459,UNS S30400

Base Tube Material Grade::

TP304,TP304L,TP304H,TP321

Type:

Extruded

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Single Metal ，Gombined Metal,Low Fin Tube,T-Type Fin Tube,Bamboo Tube,Corrugated Tube

Fin Material:

Aluminum , Copper

Supply Ability:

10000 Tons/Month

Highlight:

AL1060 Fin Extruded Fin Tube

Extruded Fin Tube ASTM A269

Heat Exchanger Extruded Fin Tube

Product Description

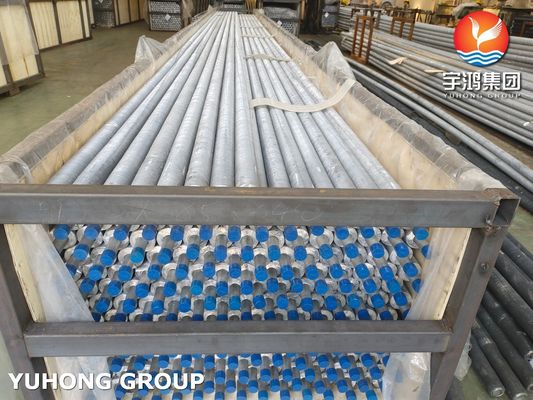

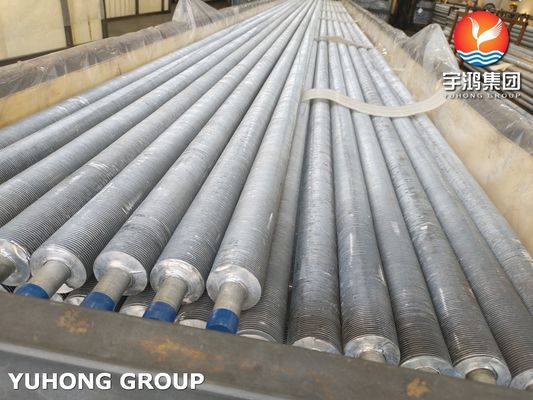

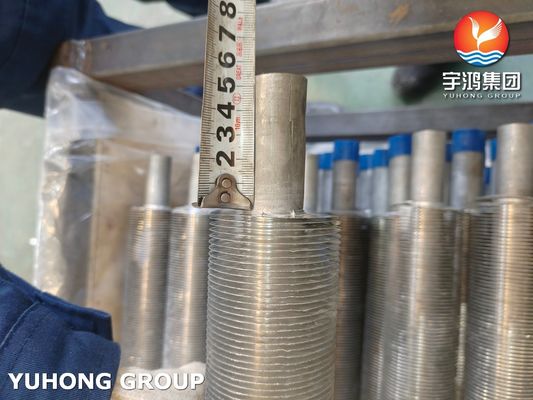

Extruded Fin Tube With Base Tube ASTM A269 TP304 AL1060 Fin Applied For Heat Exchanger

Extruded Tube is an efficient and compact heat exchange device with the following characteristics and application areas.The extruded finned tube greatly increases the heat transfer area through its fin structure, thereby improving the heat exchange efficiency.

The fins of the extruded finned tube are tightly integrated with the base tube, forming an efficient heat conduction path and achieving efficient heat exchange.

Corrosion resistance: The materials commonly used for extruded finned tubes, such as aluminum, copper, or stainless steel, have good corrosion resistance, allowing them to adapt to harsh working environments.

Fin Tube Type :

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tueb	16-63	2.1~5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube t-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube corrugated tube	16-51	8.0~30	<2.5	/
Wound	L/KL/LL type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studded fin tube	25-219	8~30	5~35	φ5-20

Chemical composition:

ASTM A269 TP304 Chemical Composition (%)

Result

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

18.0~20.0

8.0~11.0

2.0-3.0

Applications:

HVAC system
Drying kiln
Evaporators
Condensers
Refineries
Radiators/Heat sinks

Extruded Fin Tube With Base Tube ASTM A269 TP304 AL1060 Fin Applied For Heat Exchanger 0
