ASTM A179 Extruded Fin Tubes With AL1060 Fins Extruidos Tubos Aletados

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Type:

Extruded Finned Tubes

Standard:

ASTM A179

Material:

Base Tubes A179 And AL1060 Fins

Length:

According To Clients' Need

Size And Details:

According To Clients' Need

Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Extruidos Extruded Fin Tubes

ASTM A179 Extruded Fin Tubes

Al1060 Extruded Fin Tubes

Product Description

ASTM A179 Extruded Fin Tubes With AL1060 Fins , Extruidos Tubos Aletados

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H / HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	φ5-20

Extruded Finned Tubes

Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation.The general materials of base tubes about the extruded finned tube are carbon steel, copper, alloy, stainless steel ; the general materials of fins about the extruded finned tube are copper, aluminum 1060/1070, aluminum alloy 6063/6061.Therefore, it is generally divided into four categories: steel aluminum composite finned tubes; copper aluminum composite finned tubes; pure aluminum composite finned tubes, pure copper composite finned tube.

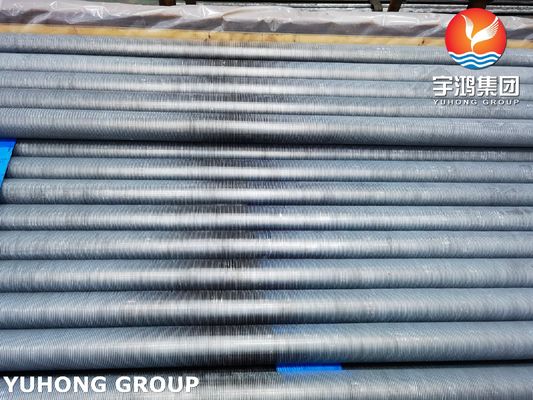

ASTM A179 Extruded Fin Tubes With AL1060 Fins Extruidos Tubos Aletados 0

Advantages of Steel Aluminum Composite Extruded Finned Tubes

The processing technology of steel and aluminum cold-rolled fin tube consists of aluminum tube and steel pipe being processed into bimetal composite tube, and then forming fin after mechanical cold rolling. Based on the physical characteristics of aluminum tube, the tube with steel tube as the core and the cold rolled aluminum fin are made into a finned tube. Widely used in steel, petroleum, chemical industry, machinery, shipbuilding, power stations and hospitals and food industries.

Composite finned tubes have the following characteristics:

1. High heat transfer performance, small contact thermal resistance;

2. The contact area between the fin and the pipe is large, the fit is tight and reliable;

3. Good corrosion resistance, stable long-term use performance;

4. The fin has good rigidity and is not easy to deform.

This page let's talk about ASTM A179 carbon steel extruded finned tubes with AL1060 fins.

Detailes of ASTM A179 Base Tubes ( Generally with min. wall thickness )

ASTM A179 This speciﬁcation covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

Chemical Composition (%) max

Grade	C	Mn	P	S
A179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
A179	47ksi (325 MPa)	26ksi (180 MPa)	35%

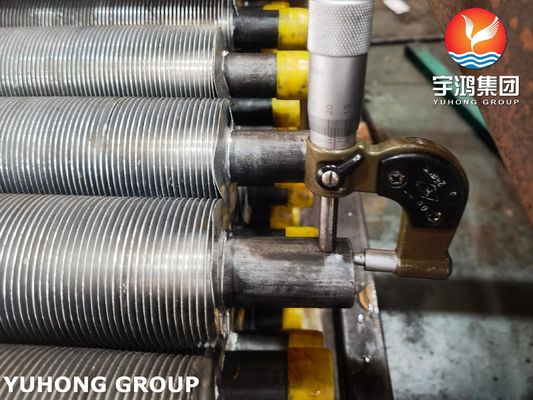

ASTM A179 Extruded Fin Tubes With AL1060 Fins Extruidos Tubos Aletados 1

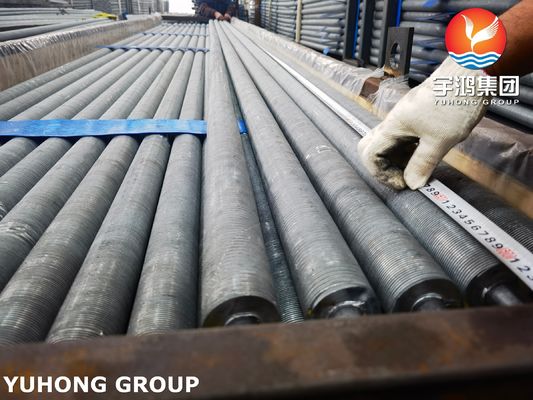

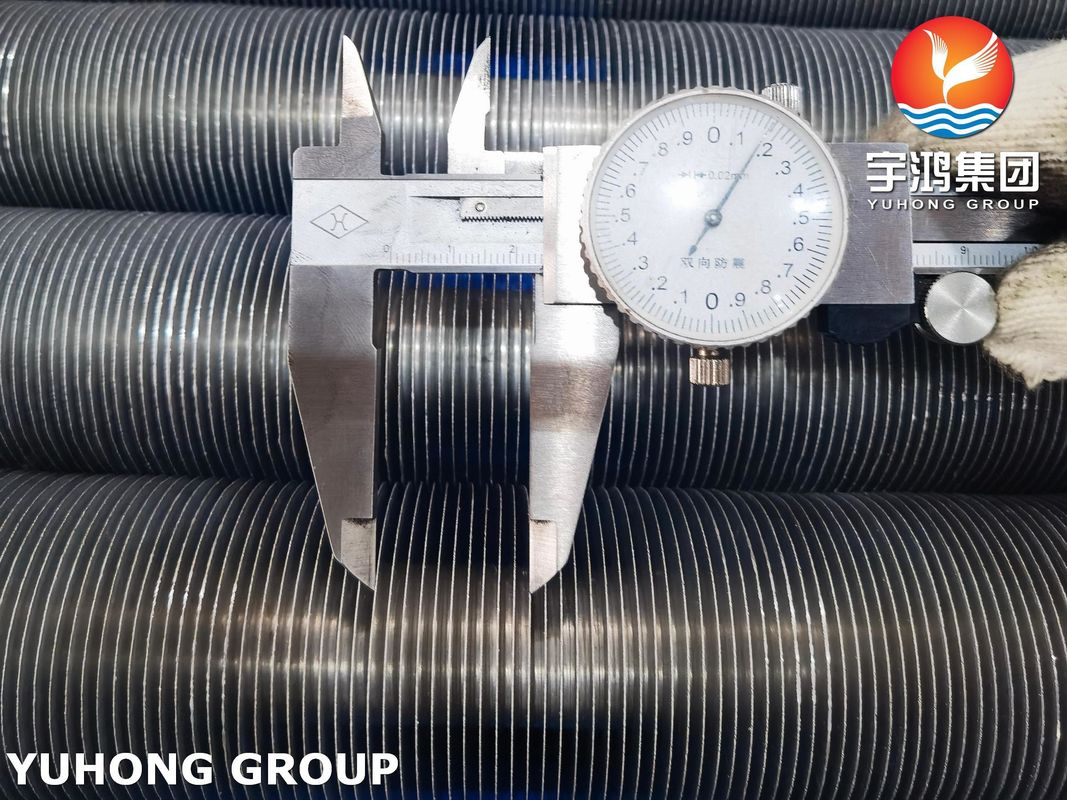

ASTM A179 Extruded Fin Tubes With AL1060 Fins Extruidos Tubos Aletados 2
