Extruded Fin Tube ASME SA179 , Fin Material AL 1060 , For Air Cooler

Brand Name:	Yuhong
Model Number:	Extruded Fin Tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	STEEL FRAME CASE
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Features:

High Efficiency, Corrosion Resistance, Easy To Clean

Base Tube Standard:

ASTM A179, ASME SA179

Fin Materials:

Aluminium

Max. Working Temperature:

545 °F（285 °C）

Bare Tube Diameter(MM):

8 - 51 Mm

Fin Pitch(MM):

1.6 - 30 Mm

Fin Height(MM):

＜17 Mm

Fin Thick(MM):

0.2 - 0.4 Mm

Supply Ability:

10000 TONS PER MONTH

Highlight:

ASME SA179 Extruded Fin Tube

AL 1060 Extruded Fin Tube

Air Cooler Extruded Fin Tube

Product Description

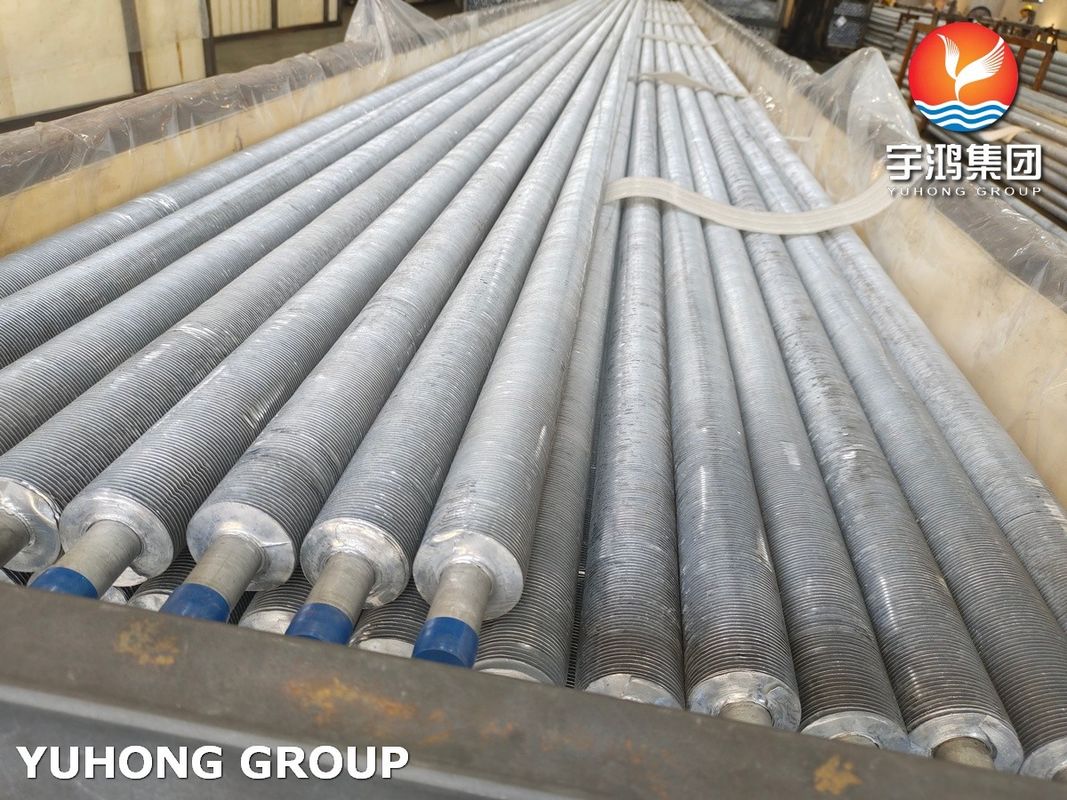

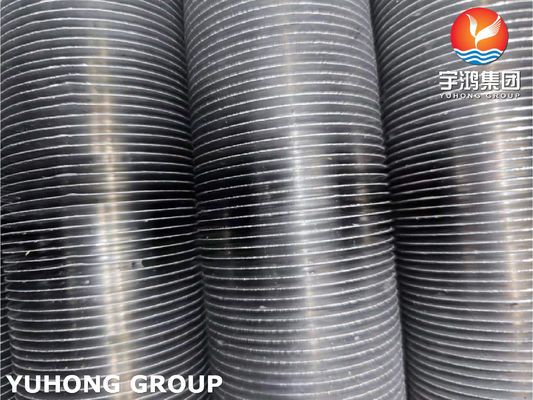

Extruded Fin Tube ASME SA179 , Fin Material AL 1060 , For Air Cooler

Extruded Finned Tube

This fin type is formed from bi-metallic tube consisting of an aluminium outer tube and an inner tube of almost any material. The fin is formed by rolling material from outside of the exterior tube to give an integral fin with excellent haet transfer properties and longevity. Extruded fin offers excellent corrosion protection of the base tube.

MATERIAL COMBINATIONS

Core Tube

Carbon steels, low-alloy steels, stainless steels, brass, copper, copper-nickel alloys, aluminium bronze, nickel-alloys, as well as exotic grades.

Exterior Tube & Fins

Generally Aluminium (different grades available)

FIELDS OF APPLICATION

• the petroleum, chemical and petrochemical industries

• natural gas treatment

• the steel industry: blast furnace and converter cooling systems

• power generation: steam turbine exhaust condensing – contact condensing with cooling of circulating condensate – fossil and nuclear power plants

• air conditioning (freon, ammonia, propane)

• incineration of household refuse

• compressor coolers, etc.

Who are we?

We are one of China's TOP 3 fin tube factories with 45 production lines. With rich experience in exporting to related markets and experience in manufacturing and exporting of finned tubes, YUHONG GROUP has been trusted and relied upon by some of the largest companies around the world.
We have confidence that you could choose us because we have:

• High production capacity and On-time delivery;

• Complete inspection and flaw detection equipment&procedures;

• Professional technical documents (Sample MTC, ITP, inspection reports, kinds of certificates for your reference);

• Best service&Responsible attitude.
