EN10216-2 TC2 P235GH CS Heat Exchanger Tube For Condenser

Brand Name:	Yuhong
Model Number:	Seamless tube
MOQ:	1 PC
Price:	Negotiable

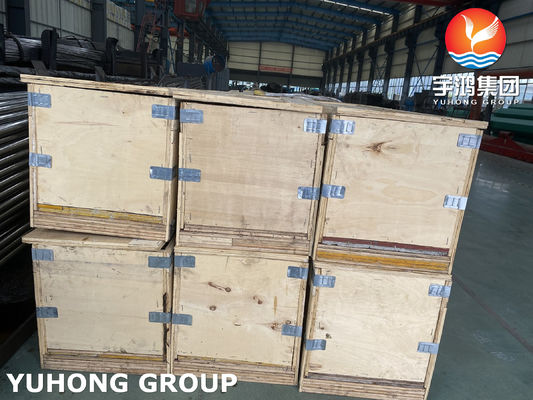

Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

P235GH

Standard:

EN10216-2

ET, UT, HT, PT, PMI

Size OD:

31.75 ~ 165.2mm

Size Thickness:

2~20mm

Size Length:

Max.: 34m/pc

Supply Ability:

10000 Tons/Month

Highlight:

P235GH Heat Exchanger Tube

EN10216-2 Heat Exchanger Tube

Condenser Heat Exchanger Tube

Product Description

EN10305-1 E235+N Heat Exchanger Tube For Condenser Application

EN 10216-2 is a European standard for seamless steel tubes used for pressure purposes in various industrial applications. The "EN" designation means it's a European Norm standard, while the "10216-2" specifies that the tube is intended for use in high-pressure systems. The standard specifies technical delivery conditions for seamless tubes intended for use in pressure equipment, including heat exchangers, boilers, and other pressure vessels.

TC2 designation refers to the steel tube's manufacturing process and delivery conditions. P235GH is often used in heat exchangers, boilers, and other applications that require good mechanical properties at moderate temperatures.

Chemical Composition:

Grade

EN10216-2

P235GH

0.12% max

0.30–0.60%

0.10–0.30%

0.025% max

0.30% max

Mechanical Properties:

Grade

Tensile Strength

Yield Strength

Elongation

Impact Strength

EN10216-2 P235GH

360–500 MPa

≥ 235 MPa

≥ 24%

≥ 27 J at 20°C

(Charpy V-notch test)

Applications:

Heat Exchangers: This steel grade is commonly used in the construction of heat exchangers, including those in power plants, chemical plants, and refineries, where fluids or gases need to be cooled or heated efficiently.
Boilers: P235GH is often used in the production of tubes for steam boilers and water-tube boilers that operate at moderate temperatures and pressures.
Pressure Vessels: P235GH is suitable for use in pressure vessels, where moderate strength and heat resistance are required but extreme corrosion resistance is not critical.
Piping Systems: P235GH is used for piping systems in applications where pressure resistance, heat resistance, and mechanical properties at higher temperatures are necessary, such as in oil and gas pipelines, steam systems, and petrochemical industries.
Power Generation: The tubes are also found in power generation facilities, particularly in systems that handle steam, water, and other fluids at elevated temperatures.

EN10216-2 TC2 P235GH CS Heat Exchanger Tube For Condenser 0
