Stainless Steel Seamless Tube ASME SA213 TP304 1.4301 SUS304 For Petrochemical

Brand Name:	Yuhong
Model Number:	TP304, 1.4301, SUS304
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

TP304, 1.4301, SUS304

Standard:

ASME SA213 , ASTM A213

Type:

Coil, Straight, U Bend

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Petrochemical Stainless Steel Seamless Tube

ASME SA213 Stainless Steel Seamless Tube

SUS304 Stainless Steel Seamless Tube

Product Description

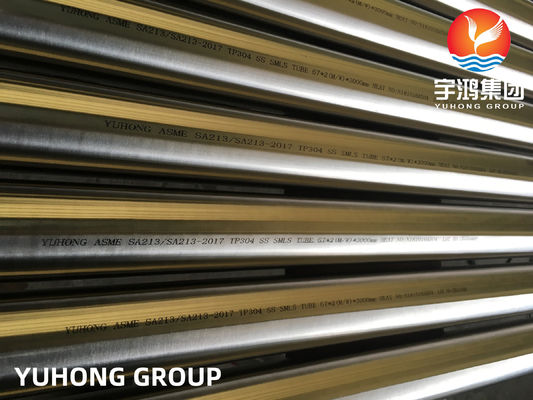

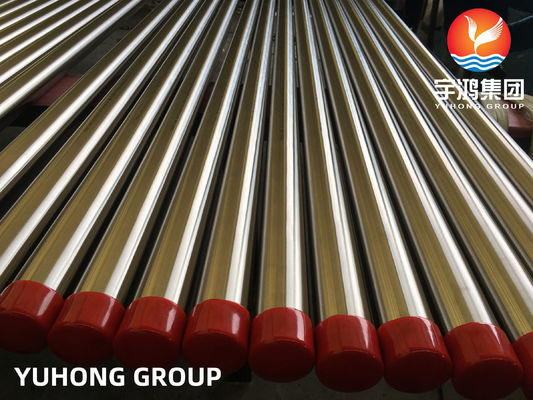

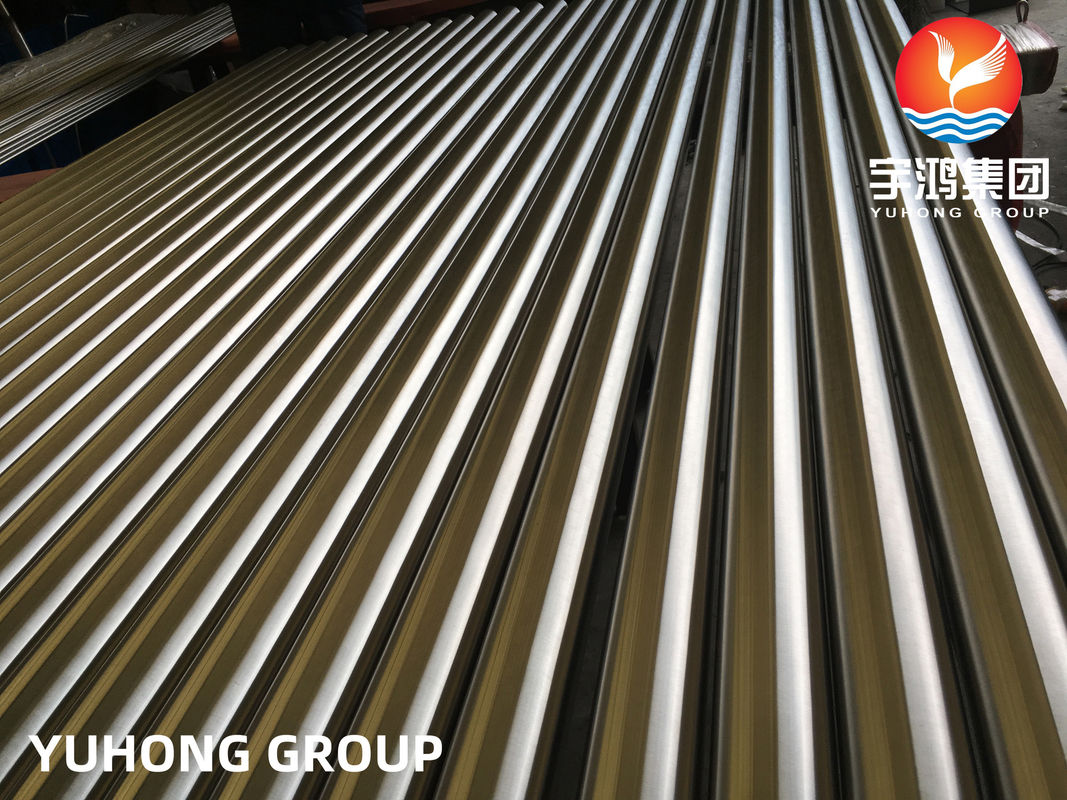

Stainless Steel Seamless Tube, ASTM SA213 TP304 (1.4301, SUS304) For Petrochemical Application

The designation ASME SA213 indicates that the tube meets the specifications set by the American Society of Mechanical Engineers (ASME) for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat exchanger tubes. ASME SA213 outlines the necessary testing procedures, including hydrostatic tests, non-destructive testing, and dimensional inspections, to verify the quality and safety of the tubes.

TP304 has good resistance to a wide range of corrosive environments, although it may not be suitable for chloride-containing environments, which can lead to pitting corrosion. TP304 is a type of austenitic stainless steel, primarily composed of iron, chromium (18-20%), and nickel (8-10.5%). This composition gives it excellent corrosion resistance and good weldability.

Chemical Composition:

Grade	Cr	Ni	C
SA213 TP304	18.0–20.0%	8-10.5%	≤ 0.08%

Mechanical Properties:

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
SA213 TP304	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Applications:

1. Chemical Processing:

Heat Exchangers:Suitable for handling mild chemicals and moderate temperatures. Provides reliable performance in less aggressive environments.
Process Piping: Used in systems requiring moderate corrosion resistance.

2. Food and Beverage Industry

Processing Equipment: Resists corrosion from food acids and maintains hygiene. Ideal for dairy and beverage systems.

3. Water Treatment

Condenser Tubes:Effective in systems exposed to fresh water. Ensures longevity and reliability.

4. HVAC Systems

Coils and Heat Exchangers:Efficient in heat transfer applications. Offers durability in moderate temperature environments.

5. Pharmaceutical Industry

Process Equipment:Ensures cleanliness and resists corrosion in sensitive processes.

Stainless Steel Seamless Tube ASME SA213 TP304 1.4301 SUS304 For Petrochemical 0
