ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube

Brand Name:	Yuhong
Model Number:	TP347, TP347H
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material Grade:

TP347H, TP347

Standard:

ASME SA213, ASTM A213

Ends:

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Stainless Steel Heat Exchanger Tube Seamless

ASME SA213 TP347H Heat Exchanger Tube

sus Seamless Heat Exchanger Tube

Product Description

Stainless Steel Heat Exchanger Tube,ASME SA213 TP347H Seamless Tube , Heat Exchanger Application

TP347H exhibits superior strength and creep resistance at elevated temperatures, making it suitable for high-stress applications. Can withstand temperatures up to approximately 1,200°F (650°C), making it ideal for high-temperature applications. ASME SA213 TP347H Stainless Steel Heat Exchanger Tube is designed for high-temperature applications, offering enhanced corrosion resistance and mechanical strength. Made from TP347H stainless steel, it contains higher carbon content and is stabilized with niobium to prevent carbide precipitation.

Chemical Composition:

Grade

TP347H

17.0-19.0%

9.0-13.0%

≥ 10x C content,

typically 0.2–0.7%

0.04-0.10%

Mechanical Properties:

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP347H	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 95 HRB

Applications:

1. Chemical Processing

Heat Exchangers:Ideal for handling high-temperature and corrosive chemicals.Ensures consistent performance and longevity.
Reactors:Maintains stability and efficiency in chemical reactions.

2. Power Generation

Boilers and Superheaters:Effective in high-temperature steam service.Enhances plant efficiency and longevity.

3. Petrochemical Industry

Refinery Applications:Suitable for systems handling high-pressure steam and corrosive substances.Provides long-term reliability and efficiency.

4. Aerospace Industry

Exhaust Components:Withstands high temperatures and corrosive conditions.Ensures long-lasting performance in aerospace applications.

5. Industrial Heating

Furnaces and Kilns:Withstands severe thermal cycling.Provides long-lasting support in high-heat environments.

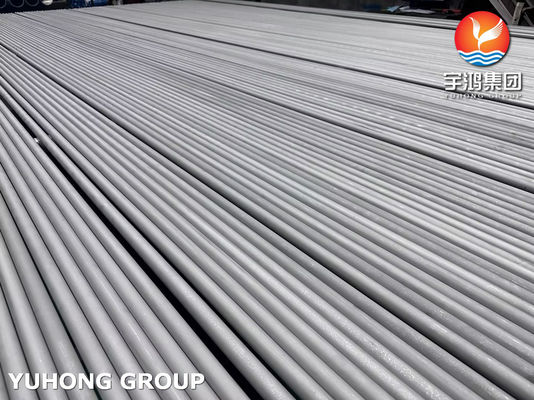

ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube 0
