ASTM A312 TP304H Stainless Steel Serrated Finned Tubes for Waste Heat Recovery

Brand Name:	YUHONG
Model Number:	Serrated Finned Tubes
MOQ:	Depend
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS

Fin Tubes Type:

Serrated Finned Tubes

Serrated Finned Tubes Material:

ASTM A312 TP304H Stainless Steel Base Pipes

Serrated Finned Tubes Size:

By Costomers' Requirements

Serrated Finned Tubes Length:

By Costomers' Requirements

Serrated Finned Tubes Application:

Waste Heat Recovery (WHR) Systems,Process Heat Exchangers,furnaces,etc.

Serrated Finned Tubes Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Product Description

ASTM A312 TP304H Stainless Steel Serrated Finned Tubes for Waste Heat Recovery

Chemical Composition (%) Maximum

Grade	C	Mn	P	S	Si	Cr	Ni
TP304H	0.04-0.10	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP304H	75ksi (515 MPa)	30ksi (205 MPa)	35%

TP304H is a high-carbon 304 grade stainless steel conforming to ASTM A312. It is characterized by excellent strength and structural stability at high temperatures, with a continuous operating temperature up to 500°C. It resists thermal fatigue and deformation under frequent temperature fluctuations, making it ideal for the high-temperature gas conditions in waste heat recovery systems.And austenitic stainless steel exhibits strong resistance to oxidation, sulfur-containing gases, weak acid condensation, and mild chloride corrosion. It effectively prevents rusting, pitting, and material degradation in gaseous environments, extending its long-term service life.

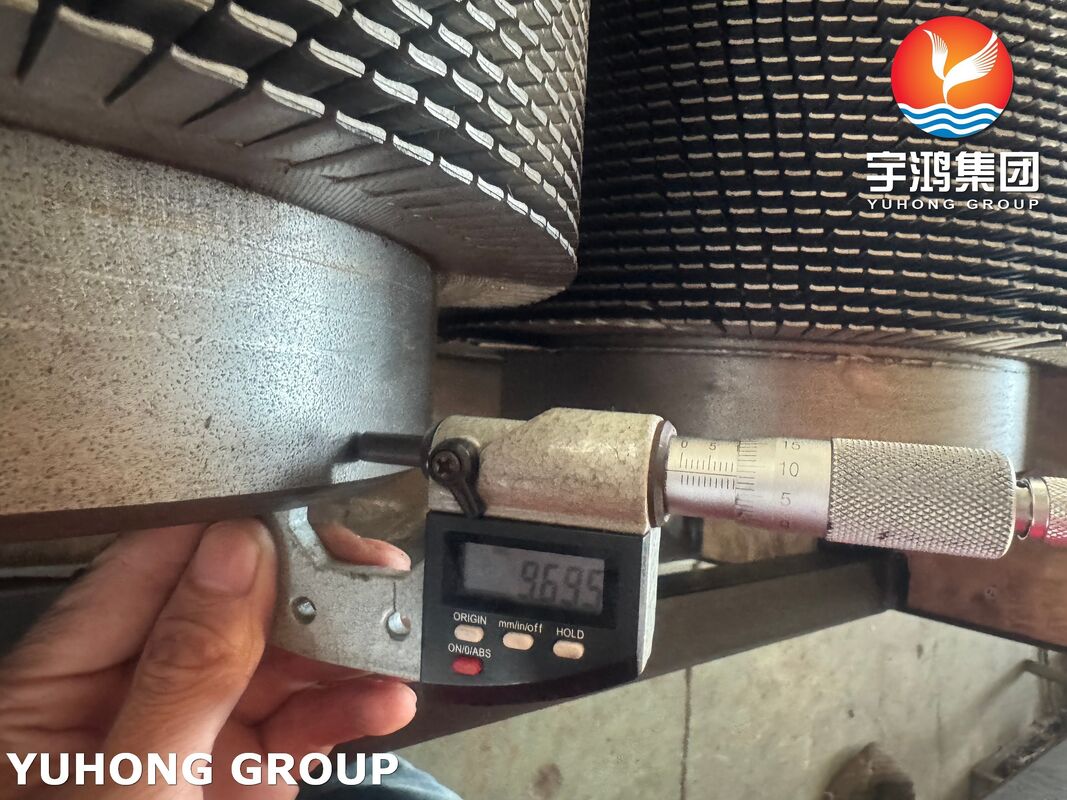

ASTM A312 TP304H Stainless Steel Serrated Finned Tubes for Waste Heat Recovery 0

Core Advantages of Stainless Steel HF Welded Finned Solid Tubes in Furnace Service

ASTM A312 TP304H The serrated end structure disrupts the fluid boundary layer, enhancing fluid-gas turbulence. Compared to ordinary thin tubes and bare tubes, it improves heat transfer efficiency by 20%–30%. The extended heat exchange zone significantly enhances waste heat capture capacity, maximizing energy recovery.The finely serrated groove profile reduces dust adhesion and surface accumulation. It effectively handles exhaust gases from boilers, industrial furnaces, and incinerators, reducing cleaning frequency and maintenance costs.

This type of finned tube is manufactured using high-frequency resistance welding, with the fins firmly attached to the base tube without gaps or separation. The entire assembly withstands fluid and gas impacts and mechanical vibrations during operation, ensuring stable and safe long-term operation.

Key Application For Waste Heat Recovery

Heat Recovery Steam Generators (HRSG):It can recover heat from high-temperature waste gas to generate steam, which can be used for power generation, industrial production, or heating.

Boiler Auxiliary Heat Exchangers:Economizers/Air Preheaters

Industrial Furnace & Kiln Waste Heat Systems

Incinerator Waste Heat Recovery Units

Process Exhaust Heat Recovery in Chemical & Petrochemical Industry

Central Heating & District Energy Systems

ASTM A312 TP304H Stainless Steel Serrated Finned Tubes for Waste Heat Recovery 1
