ASTM B338 Gr.7 Titanium Tube for Heat Exchanger and Condenser

• YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

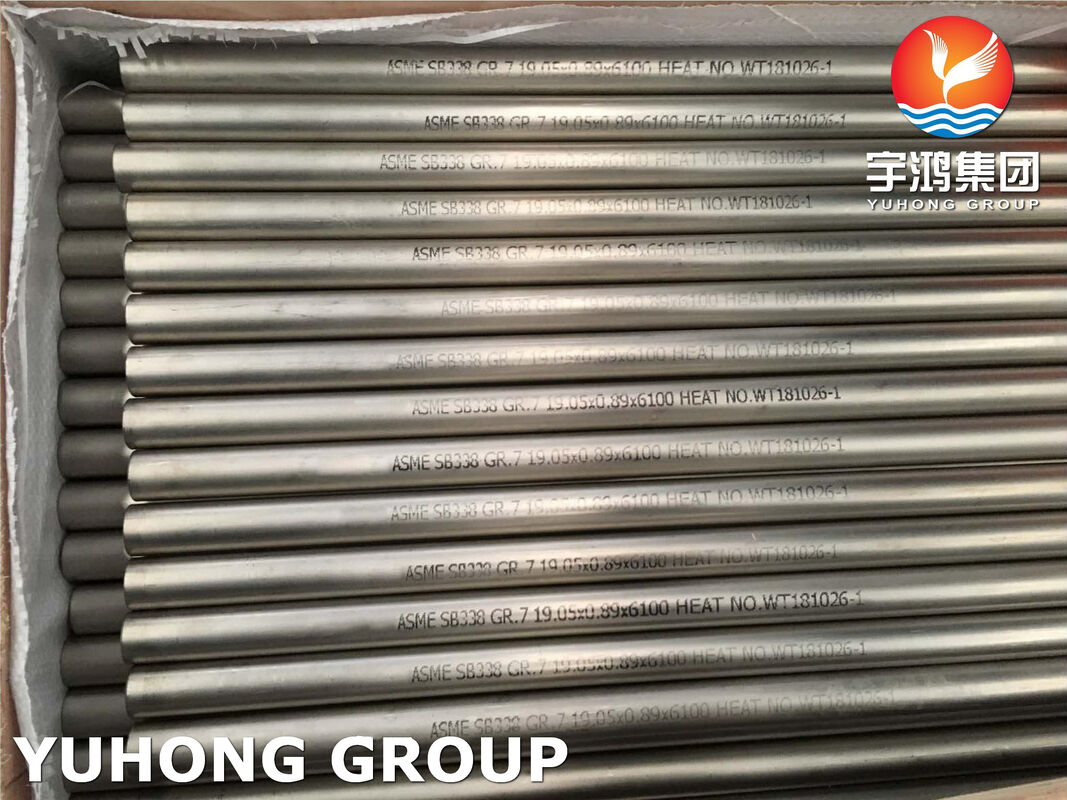

ASTM B338 Gr.7 (UNS R52400) Seamless and Welded Titanium Tube For Heat Exchanger and Condenser

ASTM B338 Gr.7 (UNS R52400) seamless and welded titanium tubes are palladium-enhanced alpha titanium alloy tubes specifically designed for heat exchangers and condensers in highly corrosive environments. These tubes combine the inherent corrosion resistance of commercially pure titanium (Grade 2) with 0.12-0.25% palladium addition, significantly improving resistance to reducing acids (e.g., hydrochloric/sulfuric acid) and localized corrosion. Available in both seamless (cold-worked) and welded forms, they exhibit minimum yield strength of 275 MPa (40 ksi) and exceptional thermal conductivity, making them ideal for shell-and-tube heat exchangers, seawater cooling systems, and chemical processing equipment where stainless steels or copper alloys fail prematurely.

1.Chemical & Mechanical Properties

Mechanical Properties

2. Key Adventages

Material Properties

• Excellent Corrosion Resistance: Especially resistant to chlorides, acidic/alkaline media (e.g., seawater, chemical fluids).
• Ti-0.2Pd Alloy (Grade 7): Palladium addition enhances resistance in reducing environments.

Mechanical Performance

• High Strength & Lightweight: Tensile strength ≥ 345 MPa, yield strength ≥ 275 MPa, density only 60% of steel.
• Good Ductility: Elongation ≥ 20% (seamless) / ≥ 15% (welded) in 4D gauge length.

Thermal Performance

• High Thermal Conductivity: Ideal for heat transfer applications in exchangers/condensers.
• Heat Resistance: Stable operation up to 300°C (depends on environment).

Product Forms

• Seamless Tubes: No weld seams, higher pressure resistance for critical applications.
• Welded Tubes: Cost-effective, reliability verified by bend tests.

3. Key Applications

• Oil & Gas: Refinery hydrogenation units / LNG heat exchangers / Pipeline heating systems
• Chemical Industry: Chlor-alkali equipment / Pickling line heat exchangers / PTA production units
• Power Generation: Nuclear plant condensers / FGD systems in coal plants / Geothermal heat exchangers
• Marine Engineering: Desalination plants / Offshore platform cooling systems / Naval vessel heat exchangers
• Aerospace: Aircraft engine oil coolers / ECLSS (Environmental Control Systems)
• Environmental: Flue gas scrubbers / Wastewater evaporators / Hazardous waste pyrolysis units
