ASTM A312 TP304H Serrated Fin Tubes，The Corrosion-Resistant Solution for Extreme Environment Waste Heat Recovery

Product Overview

ASTM A312 TP304H serrated fin tubes represent the optimal technical solution for waste heat recovery applications in highly corrosive environments or temperatures exceeding 650°C. While the initial investment is higher than carbon steel alternatives, the significantly extended service life, reduced maintenance requirements, and consistent performance in challenging conditions deliver superior lifecycle economics.

The combination of TP304H's inherent corrosion resistance, high-temperature stability, and the heat transfer enhancement provided by the serrated fin design creates a solution that is not merely "better" but often the only technically viable option for recovering energy from corrosive or high-temperature industrial exhaust streams. In applications such as waste incineration, biomass energy, and chemical processing, where conventional materials fail rapidly, TP304H serrated fin tubes transform previously unviable heat recovery opportunities into reliable, long-term energy savings.

I. Why ASTM A312 TP304H is Essential: Material Characteristics for Extreme Conditions

ASTM A312 TP304H represents a high-temperature variant of the widely used 304 stainless steel, specifically engineered for elevated temperature service with enhanced creep strength. Unlike standard 304 stainless steel (with carbon content limited to 0.08% maximum), TP304H maintains a controlled carbon content of 0.04–0.10%, which significantly improves its high-temperature mechanical properties while retaining excellent corrosion resistance.

Key Material Properties:

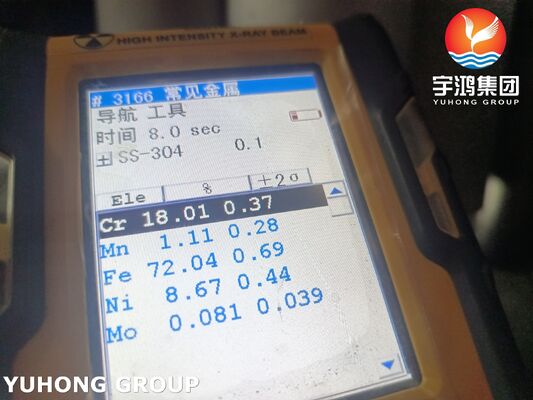

• Chemical Composition: 18% Cr, 8% Ni, 0.04–0.10% C, with minimal impurities (P≤0.045%, S≤0.030%)
• High-Temperature Performance:
  • Maximum continuous service temperature: 870°C (1600°F)
  • 10⁵-hour creep rupture strength at 700°C: 75 MPa
  • Oxidation resistance up to 925°C in intermittent service
• Corrosion Resistance:
  • Excellent resistance to organic acids, chromic acid, nitric acid
  • Superior chloride stress corrosion cracking resistance compared to 304L (but still limited above 60°C in high-chloride environments)
  • Resistant to pitting and crevice corrosion in most industrial atmospheres

The elevated carbon content in TP304H (compared to 304L) provides critical advantages in high-temperature applications:

• Formation of chromium carbides at grain boundaries is minimized through proper heat treatment
• Higher carbon content improves creep strength without significantly compromising corrosion resistance
• Maintains ductility and toughness after long-term high-temperature exposure

Unlike carbon steel or low-alloy steel options (like A192 or T22), TP304H does not suffer from catastrophic oxidation at elevated temperatures—its chromium content forms a self-healing Cr₂O₃ protective layer that prevents further oxidation. This characteristic makes it indispensable in environments where oxidation resistance is paramount.

II. Physical Durability: Performance in Extreme Environments

Waste heat recovery systems operating in corrosive or high-temperature environments face multiple challenges that TP304H serrated fin tubes are specifically designed to address:

Engineering Enhancement Measures:

• Controlled Welding Parameters: Precise HF welding settings to avoid sensitization (425–815°C range)
• Post-Weld Annealing: 1050°C solution treatment followed by rapid quenching to restore corrosion resistance
• Surface Passivation: Nitric acid treatment to enhance the protective oxide layer
• Temperature Monitoring: Critical to maintain wall temperatures above acid dew point but below sensitization range

Conclusion:
In highly corrosive environments (chlorides, acids, salts) or temperatures exceeding 650°C, TP304H serrated fin tubes can operate safely for 10–15 years with proper design, whereas carbon steel alternatives would fail within months. The material's self-protecting oxide layer and austenitic structure provide unmatched durability in these extreme conditions.

III. Serrated Fin Advantages on Stainless Steel Base: Precision Engineering for Maximum Efficiency

While the serrated fin design principle remains consistent across materials, its implementation on TP304H stainless steel presents unique advantages and considerations in extreme environments:

Technical Considerations for Stainless Steel HFW:

• Higher electrical resistivity requires adjusted HF welding parameters
• Lower thermal conductivity necessitates precise heat input control
• Risk of sensitization (chromium carbide precipitation) between 425–815°C requires post-weld solution annealing
• Surface preparation is critical to ensure proper oxide layer removal before welding

IV. Primary Application Areas: Where TP304H Serrated Tubes Are Indispensable

1. Municipal Solid Waste Incineration (MSWI) Systems

• Critical Challenge: Flue gas contains high concentrations of HCl (5,000–10,000 ppm), SO₂, and heavy metals at 400–550°C
• TP304H Advantage:
  • Resists chlorine-induced corrosion where carbon steel would fail within weeks
  • Maintains structural integrity despite frequent thermal cycling during waste composition changes
  • Serrated design prevents sticky ash deposition common in MSWI systems
• Performance Data:
  • A European waste-to-energy plant reported 8 years of operation without tube replacement
  • Acid dew point corrosion eliminated by maintaining wall temperatures >140°C
  • Heat recovery efficiency increased by 32% compared to carbon steel alternatives

2. Biomass and Waste-to-Energy Plants

• Critical Challenge: High alkali metal content (K, Na) in flue gas causes severe corrosion and fouling
• TP304H Advantage:
  • Superior resistance to alkali-induced corrosion compared to carbon steel
  • Serrated fins disrupt the deposition of sticky potassium chloride and sulfate compounds
  • Higher temperature capability allows operation in critical 450–550°C range where corrosion is most severe
• Performance Data:
  • A Scandinavian biomass plant achieved 7.2 years of continuous operation
  • Maintenance intervals extended from 6 to 18 months compared to T22 alternatives

3. Chemical and Petrochemical Process Heaters

• Critical Challenge: Processing streams containing sulfur compounds, chlorides, and organic acids
• TP304H Advantage:
  • Resists corrosion from sulfuric acid dew point (as low as 100°C)
  • Maintains integrity in mixed acid environments where carbon steel would rapidly degrade
  • Serrated design compensates for lower heat transfer coefficient compared to carbon steel
• Performance Data:
  • A Gulf Coast refinery reported 12 years of service in a sulfur recovery unit economizer
  • No significant wall thinning observed after 10 years of operation

V. Comparative Advantages: Why Choose TP304H Over Alternatives?

Economic Analysis (60 MW Waste-to-Energy Plant):

• Initial investment: 40% higher than carbon steel alternative
• Annual maintenance cost: 65% lower due to reduced cleaning and replacement needs
• Service life: 10+ years vs. 2–3 years for carbon steel in same environment
• Net present value (10-year horizon): 2.3× higher than carbon steel alternative

VI. Implementation Guidelines: Ensuring Optimal Performance

Critical Design Considerations:

• Temperature Control: Maintain wall temperatures above acid dew point but below sensitization range (425–815°C)
• Welding Quality Control: Implement strict procedures to prevent sensitization during manufacturing
• Material Grading: Use TP304H only where necessary; transition to more economical materials in less severe sections
• Cleaning Strategy: Design appropriate soot-blowing system to match the specific fouling characteristics
• Corrosion Monitoring: Install probes to track wall thickness and corrosion rates in critical areas

Quality Assurance Requirements:

• ASTM A312 compliance verification
• Intergranular corrosion testing per ASTM A262 Practice E
• 100% eddy current testing of weld zones
• Solution annealing verification through microstructure examination
