| Brand Name: | Yuhong |
| Model Number: | ASTM A334 GR.1 |
| MOQ: | 100KGS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton/month |

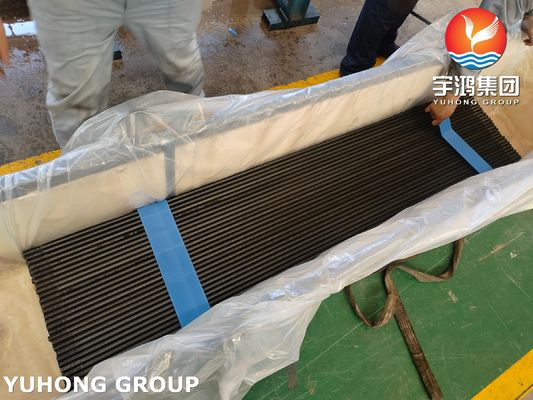

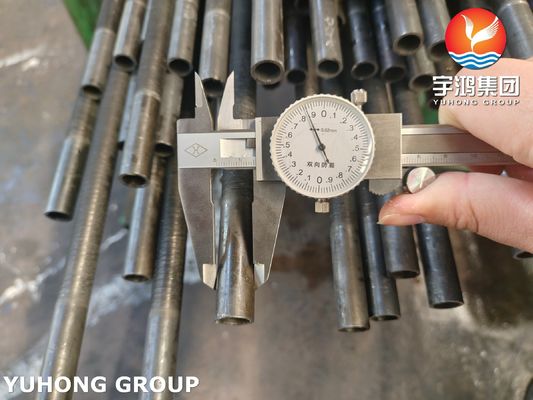

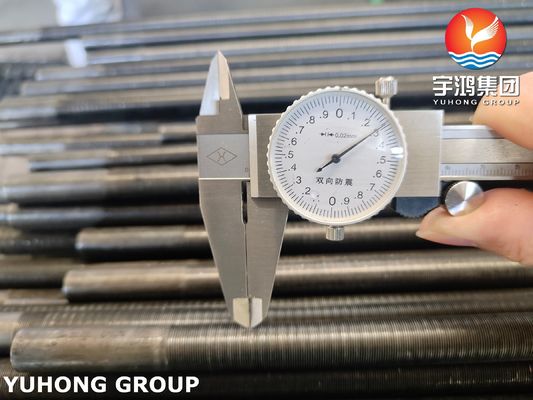

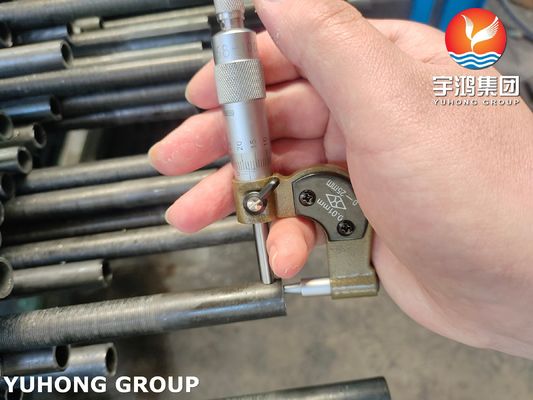

ASTM A334 Gr.1 Alloy Steel Integral Low Fin Tube for Enhanced Heat Transfer
Description:
Integral low fin tubes are produced by cold rolling the outer surface of a seamless tube to form uniform fins directly from the base material. Since the fins are an integral part of the tube wall (not added separately), this structure ensures excellent thermal conductivity, mechanical strength, and resistance to fin detachment.
ASTM A334 Grade 1 alloy steel integral fin tubes are designed for efficient heat transfer in low-temperature and moderate-pressure applications, such as air coolers, condensers, and heat exchangers used in petrochemical and power industries.
Materials:
Base Tube: Alloy Steel ASTM A334 Grade 1 (Seamless)
Key Advantages:
Fins are integral with tube wall — no risk of detachment
Excellent thermal contact and heat transfer performance
Good mechanical strength and pressure resistance
Suitable for low-temperature applications
Long service life and easy maintenance
Chemical Composition of ASTM A334 Grade 1
| Element | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| Composition (%) | ≤0.30 | 0.40–1.06 | ≤0.025 | ≤0.025 | ≤0.10 |
Mechanical Properties of ASTM A334 Grade 1
| Value / Property | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| Unit | MPa | MPa | % |
| Requirement | ≥ 415 | ≥ 240 | ≥ 30 |
Comparison Between ASTM A179 and ASTM A334 Gr.1 Low Fin Tubes
| Feature / Type | A179 Low Fin Tube | A334 Gr.1 Low Fin Tube |
|---|---|---|
| Material | Carbon Steel | Alloy Steel |
| Tensile Strength (MPa) | ≥ 325 | ≥ 415 |
| Temperature Range | Normal to moderate temperature | Low temperature service |
| Corrosion Resistance | Standard | Better |
| Thermal Conductivity | Higher | Slightly lower |
| Typical Use | Air coolers, condensers | Low-temperature heat exchangers |
Applications:
Air Cooled Heat Exchangers
Condensers
Low-temperature Heat Exchangers
Petrochemical and Power Generation Equipment
