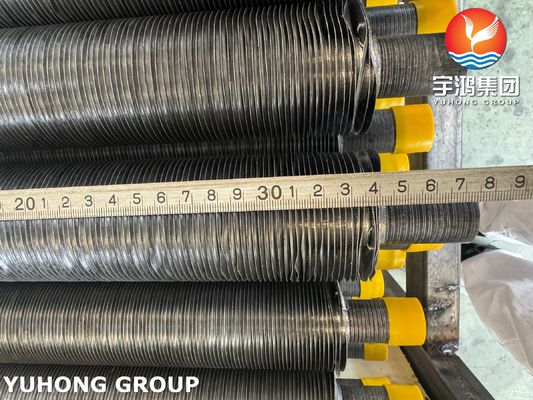

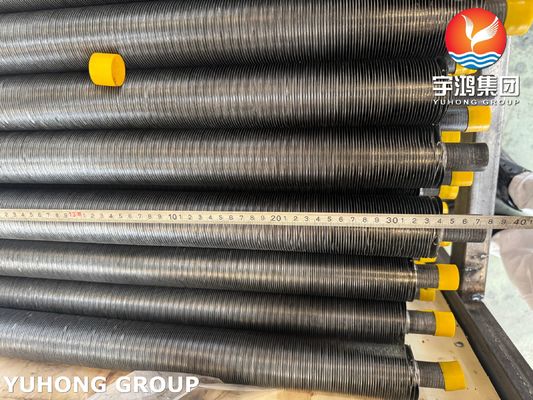

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Tubesheet

Sales Dept.

sales@steelseamlesspipe.com

+8613819835483

Contact Now

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with Plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Fins:

AL1060

Base Tube Material:

Fin Material:

AL1060

Fin Thk:

0.4mm

Fin Materials:

Aluminium, Copper

HT/ECT

Application:

Air Cooler

Supply Ability:

1000 ton/month

Highlight:

Wound Fin Tube ASME SA179

Aluminum Strip Fin Tube

Heat Exchanger Fin Tube

Product Description

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger

Product Description

KL-type wound fin tubes are produced by tightly wrapping an aluminum strip around the base carbon steel tube under controlled tension. During the process, the base of the aluminum strip is simultaneously knurled and wound, ensuring a tight mechanical bond between the fin and the tube. This structure provides good heat transfer efficiency and prevents fin loosening during service. KL-type fin tubes are widely used in heat exchangers, air coolers, and condensers where cost-effective and efficient thermal performance is required.

Chemical Composition (ASME SA179 Base Tube)

Element	C	Mn	P (max)	S (max)
Content (%)	≤ 0.06	0.27–0.63	0.035	0.035

Mechanical Properties (ASME SA179 Base Tube)

Property	Requirement
Tensile Strength	≥ 325 MPa
Yield Strength	≥ 180 MPa
Elongation	≥ 35%
Hardness	≤ 72 HRB

Chemical Composition (Aluminium 1060 Fin Strip)

Element	Al	Si	Fe	Cu	Mn	Zn	Others (each)	Others (total)
Content (%)	≥ 99.6	≤ 0.25	≤ 0.35	≤ 0.05	≤ 0.03	≤ 0.05	≤ 0.03	≤ 0.10

Fins Type:

KL-Type (Knurled + Wrapped)
Aluminum strip wound onto the tube with knurled base for enhanced bonding
Available in various fin heights and pitches as per design.

Fin Tube Types

Feature / Type	L Type	KL Type	G Type	Extruded Type
Bonding Method	Wrapped, L-foot	Knurled + Wrapped	Groove + Embedded Fin	Aluminium Sleeve Extruded
Fin-Tube Contact	Moderate	Good	Excellent	Excellent
Heat Transfer	Moderate	Good	Good–Excellent	Excellent
Temperature Resistance	Low–Moderate	Moderate	High	High
Mechanical Strength	Fair	Better than L	High	Very High
Cost	Low	Low–Medium	Medium	High
Typical Use	Basic air coolers	General air coolers	Petrochemical / Refineries	Offshore / Harsh Environments

Advantages

Economical and efficient finning method
Improved mechanical bonding between fin and tube compared to L-type
Good heat transfer efficiency
Suitable for moderate temperature applications
Widely applied in heat exchangers for air cooling, power generation, and petrochemical industries

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger 0

Ratings & Review

Overall Rating

3.7

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

4 stars

67%

3 stars

33%

2 stars

1 stars

All Reviews

Juan

Argentina Feb 18.2026

Helpful (2)

The finning is tight — you can tell they used a proper cold-forming process because the fins don't move at all when you try to wiggle them. We've had issues before with other suppliers where the fins would come loose after a few thermal cycles, but these ones feel solid.

Ivan Volkov

Russian Federation Nov 11.2025

Helpful (3)

As an engineer in Siberia, I tested these fin tubes in extreme cold (-30°C). The ASTM A213 T11 steel performed well with no thermal cracks, and cooling efficiency met expectations (88%). That said, the Russian-language documentation had translation errors in technical terms, causing minor confusion during installation.

Kumar

India Nov 8.2025

Helpful (2)

No corrosion issues so far, though we're running below dew point carefully. Installation was straightforward—tube sheets lined up, ends clean, rolling into the header went smooth.
