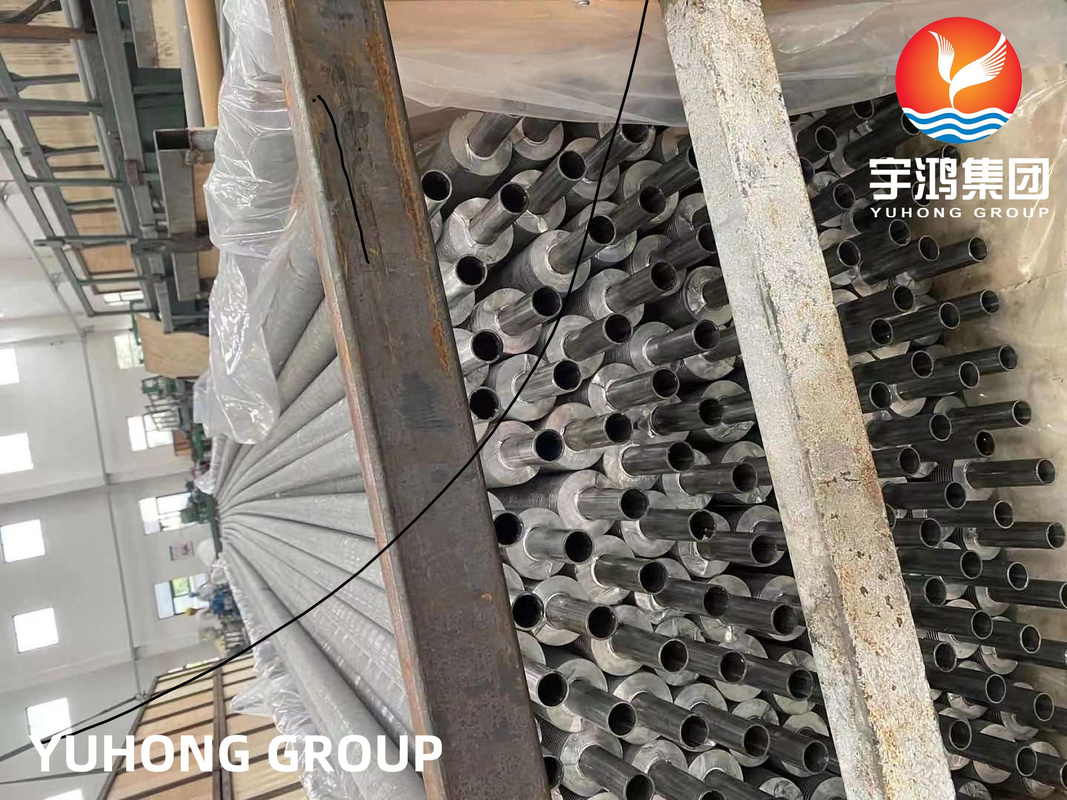

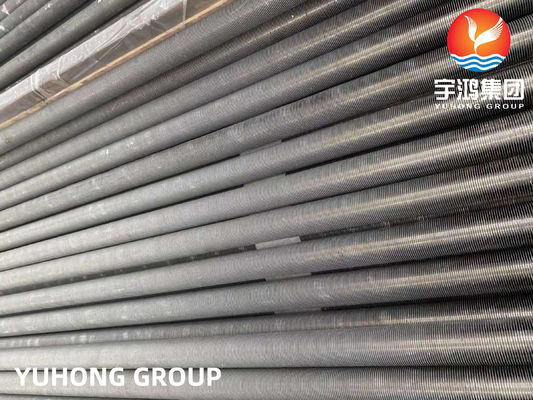

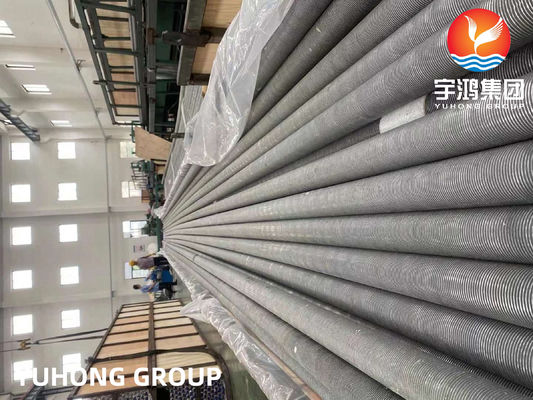

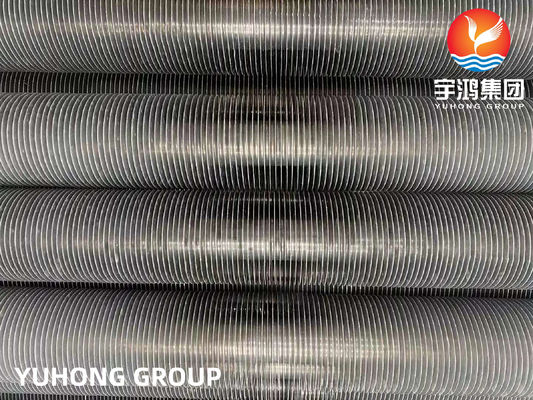

Extruded Fin Tube Stainless Steel ASTM A269 TP304 With Al1060 For Air Cooler
Product Overview
An Air Cooler Tube ASTM A269 TP304 Extruded Fin Tube with Aluminum 1060 is a bimetallic tube designed for optimal heat transfer in demanding environments. It combines the corrosion resistance and strength of a stainless steel core with the superior thermal conductivity and light weight of aluminum fins.
| Element | C (max) | Mn (max) | P (max) | S (max) | Si (max) | Cr | Ni |
|---|---|---|---|---|---|---|---|
| Content (%) | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0–20.0 | 8.0–11.0 |
| Items | General Materials | Popular ASTM Materials |
| Core Tube Material | Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc. |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti, A789 S31803/S2205 etc... 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2 |
| Fins Material | 1. Aluminum Alloy 2. Copper. |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) 2. Copper. |
Superior Bond Integrity: Creates a permanent, metallurgical bond with very low contact resistance, maximizing heat transfer.
Durability: The fins are robust, resistant to damage, and will not loosen under thermal cycling or vibration.
High-Temperature Capability: The bond remains stable at higher operating temperatures compared to other fin types (like L-footed).
Power Generation: Turbine lube oil coolers, closed-loop water coolers.
Oil & Gas: Cooling and condensing process streams in refineries and petrochemical plants.
Compressor Systems: Aftercoolers and intercoolers.
Chemical Processing: Cooling various process fluids.
HVAC & Industrial Cooling: For large-scale industrial chillers.
