| Brand Name: | Yuhong |
| Model Number: | ASME SA335 P22 |
| MOQ: | 100KGS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton/month |
ASME SA335 P22 Alloy Steel Seamless Pipe Serrated Fin Tube For HRSG System
Product Description

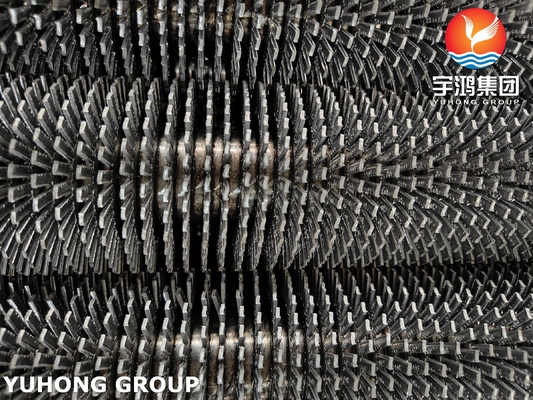

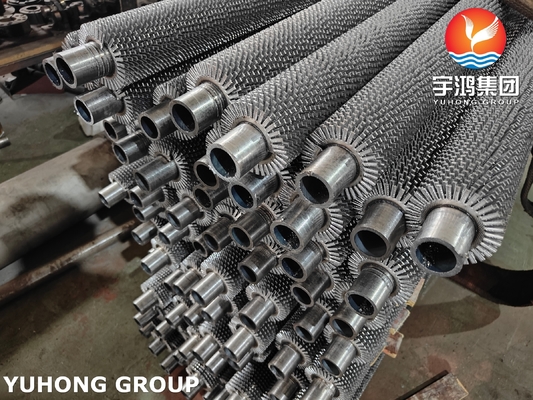

ASME SA335 P22 alloy steel seamless pipe serrated fin tube is manufactured by attaching serrated fin strips onto the base tube surface through high-frequency welding (HFW). The serrated fins are slit along their length to create small interruptions, which significantly improve turbulence and heat transfer efficiency. This makes the product highly suitable for Heat Recovery Steam Generator (HRSG) systems, boilers, and furnaces, where high-temperature and high-pressure performance is essential.
| Element | C | Mn | P (max) | S (max) | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| Content (%) | 0.05–0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.50–1.00 | 1.90–2.60 | 0.87–1.13 |
| Property | Requirement |
|---|---|
| Tensile Strength | ≥ 415 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 30% |
| Hardness | ≤ 163 HB |
Enhanced heat transfer: serrated fins break boundary layers, improving heat transfer efficiency
High-temperature resistance: P22 alloy steel performs well in elevated temperature environments
Strong metallurgical bonding: HFW ensures excellent fin-to-tube attachment strength
Durability: withstands oxidation, creep, and thermal cycling in HRSG systems
Optimized for waste heat recovery and HRSG systems
Higher efficiency compared with solid fins due to turbulence effect
Reliable long-term performance under high pressure and temperature
Cost-effective solution for large-scale power plant applications
Applications
HRSG systems in power plants
Waste heat recovery boilers
Petrochemical and refinery heaters
Industrial furnaces and process heaters
Economizers and superheaters
