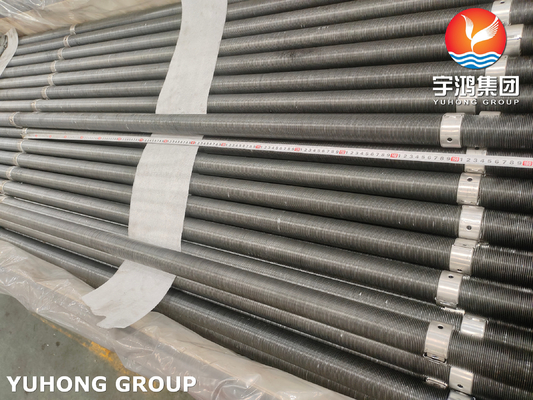

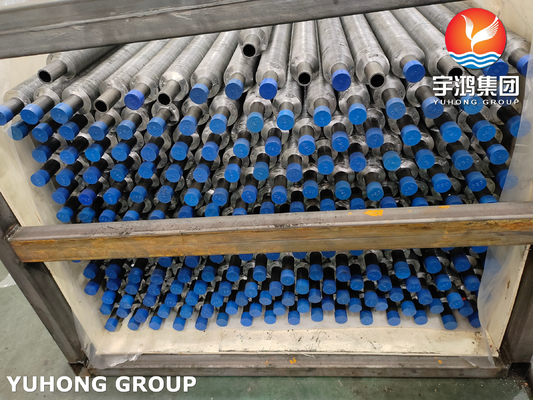

ASTM A179 Embedded Finned Tube with Al1060/Al1100 Fins is a type of heat exchanger tube designed for enhanced heat transfer efficiency. Here's a breakdown of its key components and characteristics:

1. Base Tube (ASTM A179)

Material: Low-carbon steel (seamless cold-drawn)

Standard: ASTM A179 specifies the requirements for seamless cold-drawn low-carbon steel tubes used in heat exchangers and condensers.

Properties: Good thermal conductivity, corrosion resistance (in certain environments), and mechanical strength.

(1). Chemical Composition (Weight %)

Notes:

Low carbon content improves weldability and reduces brittleness.

Low sulfur & phosphorus minimize hot cracking and improve ductility.

(2). Mechanical Properties

Notes:

Cold-drawn process enhances strength and surface finish.

High elongation ensures good formability for bending and expansion.

Annealed/Stress-Relieved condition improves dimensional stability.

2. Fins (Al1060 / Al1100)

• Material:

Al1060: 99.6% pure aluminum, excellent thermal conductivity (~230 W/m·K), good corrosion resistance.

Al1100: 99.0% pure aluminum, slightly less conductive than Al1060 but still highly efficient.

• Fin Type: Embedded (L-footed, G-footed, or KL-footed fins)

The fins are mechanically embedded into grooves on the outer surface of the steel tube, ensuring strong bonding and optimal heat transfer.

This method prevents air gaps between the fin and tube, improving thermal performance.

3. Key Features & Applications

High Heat Transfer Efficiency: The aluminum fins significantly increase the surface area, improving heat exchange.

Corrosion Resistance: Aluminum fins provide good resistance to oxidation and mild corrosive environments.

Strong Bonding: The embedded fin design ensures durability under thermal cycling and mechanical stress.

This type of finned tube is ideal for applications requiring efficient heat transfer in moderate-temperature environments, where aluminum's lightweight and high thermal conductivity are beneficial. The embedded fin design ensures long-term reliability and performance.

Applications of ASTM A179 Embedded Finned Tube with Al1060/Al1100 Fins

This type of finned tube is widely used in heat exchange systems where efficient thermal transfer, lightweight construction, and corrosion resistance are required. Below are the key applications:

1. Power Plants & Energy Recovery Systems

• Economizers: Preheats feedwater using waste flue gas heat.
• Air Preheaters: Recovers heat from exhaust gases to improve boiler efficiency.
• Condensers: Cools steam back into water in thermal power cycles.

2. Petrochemical & Oil Refineries

• Process Heaters & Coolers: Transfers heat in refining operations.
• Gas Cooling Systems: Cools hydrocarbon gases in pipelines.
• Waste Heat Recovery Units (WHRUs): Captures excess heat from exhaust streams.

3. HVAC & Refrigeration

• Air Handling Units (AHUs): Cools/heats air in commercial HVAC systems.
• Chiller Tubes: Enhances refrigerant heat exchange.
• Heat Pumps: Improves efficiency in geothermal and air-source systems.

4. Industrial Process Heating & Cooling

• Drying Systems: Used in food, paper, and textile industries.
• Chemical Reactors: Maintains temperature control in reactors.
• Compressed Air Coolers: Reduces air temperature after compression.

5. Marine & Offshore Applications

• Seawater Coolers: Cools engine systems (with proper corrosion protection).
• Desalination Plants: Used in multi-stage flash (MSF) evaporators.

6. Renewable Energy Systems

• Biomass Boilers: Recovers heat from combustion gases.
• Solar Thermal Plants: Acts as heat exchangers in concentrated solar power (CSP) systems.

Key Advantages for These Applications

✔ High Thermal Efficiency (Aluminum fins increase surface area).
✔ Lightweight & Compact (vs. solid steel or extruded fin tubes).
✔ Good Corrosion Resistance (Al1060/Al1100 resists oxidation).
✔ Mechanically Robust (Embedded fins prevent detachment under stress).
