ASTM A376 TP347H Solid Fin Tube Alloy Steel Seamless Tube For Convection Coil Tube

Brand Name:	Yuhong
Model Number:	ASTM A376 TP347H
MOQ:	100 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden case with iron frame
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, CCS, BV, LR, DNV

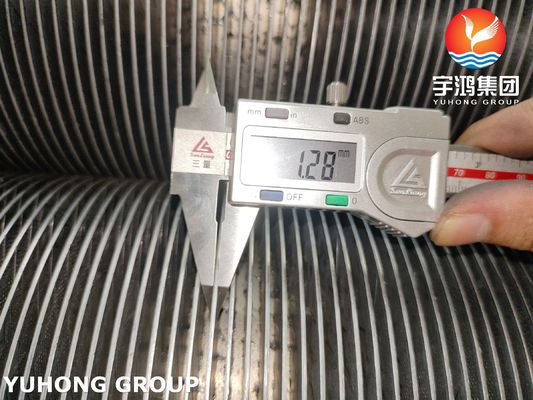

Fin Thk:

1.3mm

Base Tube Material:

TP347, TP347H, 1.4550

Tube Type:

Seamless

Fin Type:

Solid Fin

Production Process:

Cold Drawn

Base Tube OD:

141.3MM

Tube Standard:

ASTM A376

Supply Ability:

1000 tons per month

Highlight:

Solid Fin Tube Convection Coil

Solid Fin Seamless Tube

TP347H Solid Fin Seamless Tube

Product Description

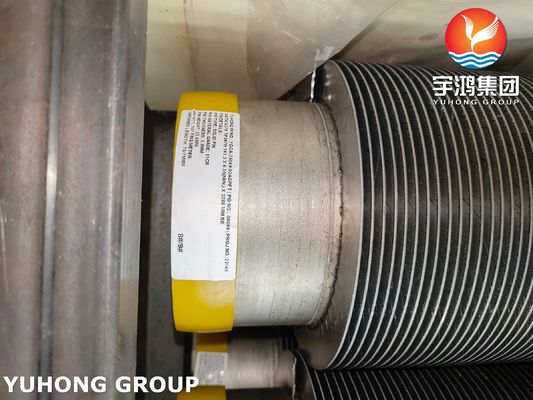

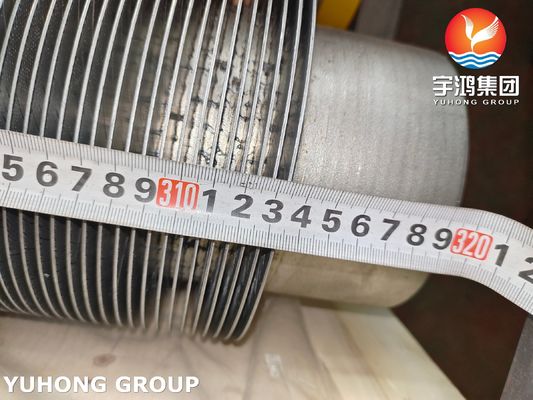

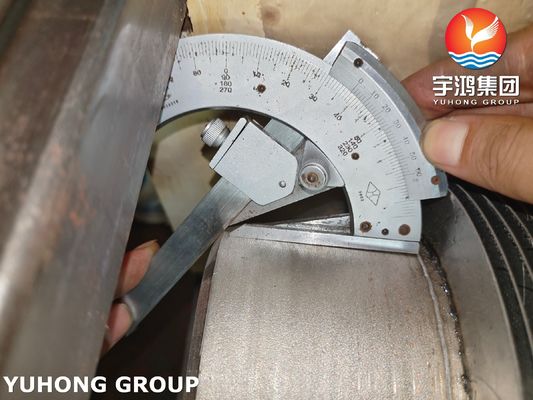

Alloy Steel Seamless Tube ASTM A376 TP347H, Solid Fin Tube, For Convection Coil Tube

Product Introduction

The ASTM A376 TP347H Solid Fin Tube is made from high-temperature austenitic stainless steel (347H), designed for high-performance heat transfer in convection sections of furnaces and boilers. The solid fin is welded directly onto the tube surface using High Frequency Welding (HFW) or manual processes, creating a durable structure capable of operating under extreme thermal and corrosive conditions.

Chemical Composition – ASTM A376 TP347H

Element	Content (%)
C	0.04 – 0.10
Mn	≤ 2.00
P	≤ 0.045
S	≤ 0.030
Si	≤ 1.00
Cr	17.0 – 19.0
Ni	9.0 – 13.0
Nb (Cb)	10 × C min.
Fe	Balance

Mechanical Properties – TP347H

Property	Value
Tensile Strength	≥ 515 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 35%
Hardness	≤ 217 HBW
Max. Service Temp	~ 1000°C (1830°F)

Advantages

Excellent High-Temperature Strength
Ideal for use in superheater and reheater tubes in power plants.
Enhanced Creep Resistance
Nb-stabilization makes 347H superior under prolonged high-heat exposure.
Superior Corrosion & Oxidation Resistance
Maintains integrity in flue gas environments with high sulfur content.
Solid Fin Structure
Provides mechanical durability, long service life, and efficient heat transfer.
Weldable and Formable
Supports complex U-bends and coil configurations for compact convection sections.

Applications

Mainly used in high-temperature heat recovery and energy conversion systems, such as:

Furnace Convection Coils
Power Plant Boilers
Petrochemical Reheaters
Waste Heat Recovery Units
Refinery Heater Tubes

ASTM A376 TP347H Solid Fin Tube Alloy Steel Seamless Tube For Convection Coil Tube 0
