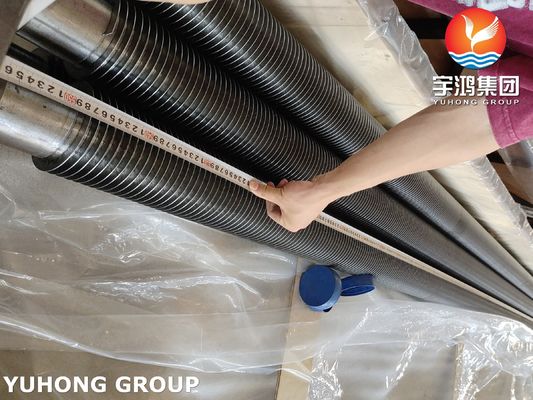

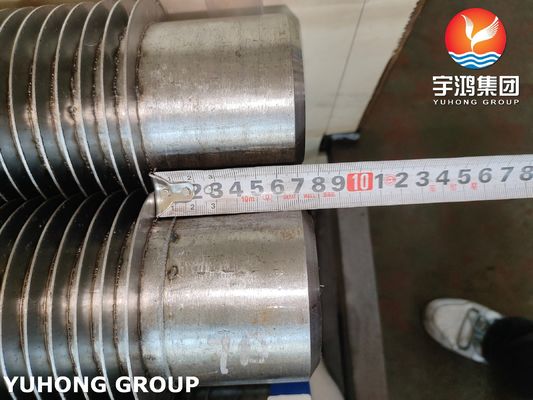

ASTM A335 P22 HFW Solid Finned Tube with 11-13Cr Fins For Power Plant Boilers

The ASTM A335 P22 HFW (High-Frequency Welded) Solid Finned Tube with 11-13% Chromium (Cr) Fins is a high-performance heat exchanger tube designed for extreme conditions in industrial applications. Below is a detailed breakdown of its components, manufacturing process, and key characteristics:


1. Base Tube: ASTM A335 P22 (Grade P22)

• Material: Low-alloy steel (2.25% Chromium, 1% Molybdenum).
• Standard: ASTM A335 (Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service).
• Manufacturing Process: HFW (High-Frequency Welded) – A precision welding technique that creates a strong, near-seamless bond, suitable for high-pressure applications.

(1). Chemical Composition (Weight %)

Notes:

Key Alloys: The 2.25% Cr-1% Mo composition provides excellent creep resistance and high-temperature strength.

Impurity Control: Low S and P minimize brittleness at elevated temps.

(2). Mechanical Properties

Notes:

High-Temp Performance: Retains strength up to 600°C (short-term exposure to 650°C).

Creep Resistance: Designed for long-term service under stress at 450–600°C (e.g., power plant piping).

(3). Heat Treatment

• Normalization: Heated to 900–970°C, air-cooled for uniform grain structure.
• Tempering: Followed by heating to 675–775°C to reduce brittleness.
• Result: Optimized balance of strength and ductility.

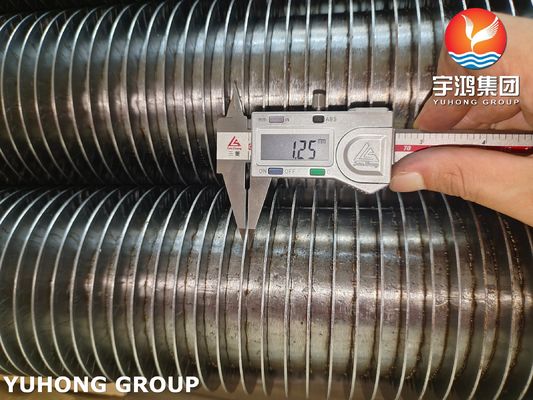

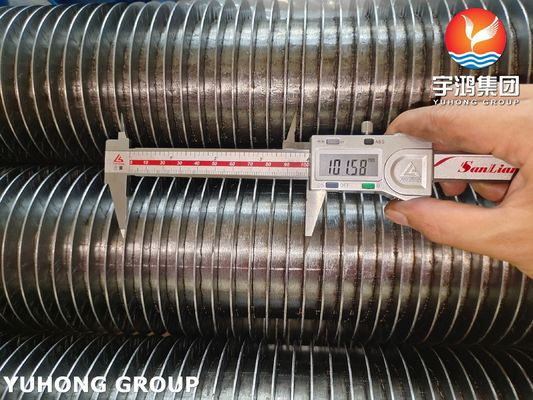

2. Fins: 11-13% Chromium Steel

• Material: Stainless steel with 11-13% Cr (similar to grades like 409, 410, or 405 stainless steel).
• Fin Type: Solid fins (mechanically bonded or welded to the base tube).
• Properties:
• High-temperature oxidation resistance (superior to aluminum fins).
• Corrosion resistance against sulfur (H₂S), chlorides, and flue gas.
• Erosion resistance to fly ash/particulates (critical in coal-fired plants).

3. Manufacturing Process

• Tube Production:

P22 steel strip is formed into a tube and welded using HFW for a uniform, high-strength joint.

• Fin Attachment:

Solid fins are helically wound or embedded into the tube surface.

• Bonding Methods:

High-pressure extrusion (for integral fins).

Resistance welding (for welded fins).

Knurling/Grooving (to enhance fin adhesion).

• Post-Treatment:

Stress relieving/annealing to ensure stability under thermal cycling.

4. Key Features & Advantages

The ASTM A335 P22 HFW (High-Frequency Welded) solid finned tube with 11-13% chromium (Cr) fins is a specialized heat exchanger component designed for high-temperature, high-pressure, and corrosive environments. Below are its key applications and advantages:

1. Primary Applications

(1) Power Plant Boilers & Heat Recovery Steam Generators (HRSG)

• Used in superheaters, reheaters, and economizers where high-pressure steam (up to 100+ bar) and temperatures (450–600°C) are present.
• Resistant to flue gas corrosion (sulfur, chlorides) due to the 11-13% Cr fins.

(2) Petrochemical & Refinery Processes

• Fired heaters, reformers, and cracking furnaces where high-temperature hydrocarbons or process gases (e.g., in ethylene plants) require efficient heat transfer.
• The chromium-rich fins resist oxidation and sulfidation in sulfur-rich environments.

(3) Waste Heat Recovery Systems

• Recovers energy from high-temperature exhaust gases (e.g., in cement kilns, steel plants).
• The HFW (High-Frequency Welded) P22 base tube ensures structural integrity under thermal cycling.

(4) Combined Cycle & Cogeneration Plants

• Used in gas turbine exhaust ducts or heat exchangers where aggressive exhaust gases (NOx, SOx) demand corrosion-resistant fins.

 2. Why ASTM A335 P22 HFW Tube + 11-13% Cr Fins?

(a) Base Tube (ASTM A335 P22)

Material: Low-alloy steel (2.25Cr-1Mo) with excellent creep resistance at high temps.

HFW Process: Provides a seamless-like structure with high pressure tolerance.

Operating Range: Suitable for 500–600°C, common in power/process industries.

(b) 11-13% Chromium Fins

Oxidation Resistance: Withstands scaling at high temps (better than aluminum fins).

Corrosion Resistance: Resists sulfidation (H₂S) and chloride-induced pitting.

Mechanical Strength: Higher durability than pure Al/Cu fins in abrasive gas flows.
