ASTM A213 T5 Embedded G Fin Tube For Heat Exchanger And Air Cooler

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Bare Tube Specification&Material:

ASTM A213 T5

Fin Tpye:

Embedded Fin Tube, G Type Fin Tube

Application:

Heat Exchanger, Air Cooler, Condensers, Evaporators

Bare Tube Diameter:

16-63mm

Fin Height:

<17mm

Fin Pitch:

~0.4mm

Fin Thick:

2.1mm-5mm

Supply Ability:

According to Clients' requirements

Highlight:

Embedded G Fin Tube

Heat Exchanger G Fin Tube

Air Cooler G Fin Tube

Product Description

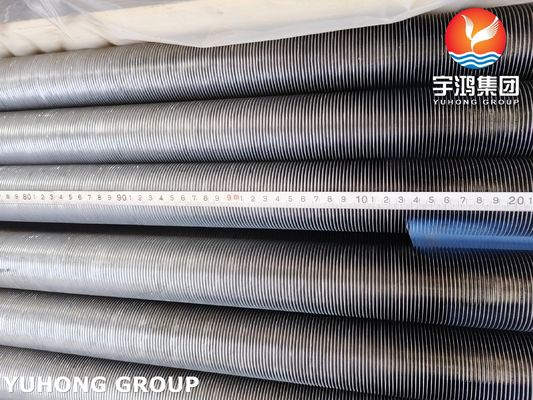

ASTM A213 T5 Embedded G Fin Tube For Heat Exchanger And Air Cooler

1. What is ASTM A213 T5 Embedded G Fin Tube?
ASTM A213 T5 Embedded G Fin Tube is a high-integrity heat transfer solution for extreme hydrogen and sulfur environments. It features a seamless chromium-molybdenum alloy steel base tube (ASTM A213 T5, UNS K41545) with spiral G-type fins mechanically embedded into precision-grooved surfaces. This interlocking design achieves 360° metallurgical contact, eliminating thermal resistance while providing unmatched resistance to hydrogen embrittlement and sulfidation up to 593°C (1,100°F). Ideal for hydrocrackers, reformers, and syngas coolers.

2. Chemical & Mechanical Properties

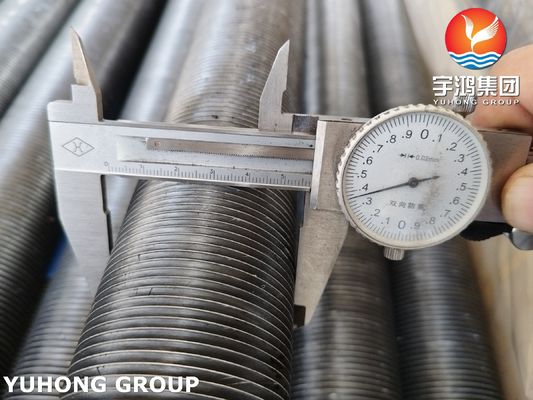

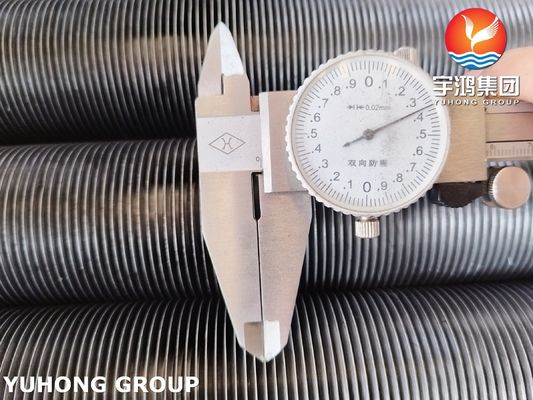

Dimensional Specifications:

Bare Tube Diameter:16-63mm
Fin Height::<17 mm	Fin Thickness: ~0.4 mm	Fin Pitch: 2.1-5mm	Tube Ends: Plain Ends / Beveled Ends
No Fin Area (Both Ends): As Customer’s Request and Drawing

Chemical Composition (%)

Element	C	Mn	P	S	Si	Cr	Mo	Others
Range	≤0.15	0.30~0.60	≤0.025	≤0.025	≤0.50	4.00~6.00	0.45~0.65	Balance (Fe)

Mechanical Properties

Tensile Strength: Rm (MPa)	Yield Strength: Rp 0.2 (MPa)	Elongation: A (%)	Hardness(HB)	Max Service Temp.
≥415	≥205	≥30	≤ 179	593°C (1,100°F)

3. Key Applications & Competitive Advantages

· Hydroprocessing Units: Heaters in hydrocrackers/hydrodesulfurization reactors.

· Syngas Coolers: Transfer line exchangers for coal-to-chemical plants.

· Refinery Reformers: Convection sections in continuous catalytic reformers (CCR).

· Hydrogen Plants: Waste heat boilers for steam methane reformers.

· Coker Units: Vapor recovery exchangers.

4.Why Choose ASTM A213 T5 Embedded G Fin Tube:

A:Company Competitiveness:

Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market.

B:Product Competitiveness:

· Zero Hydrogen Attack: Certified per NACE MR0103 for H₂S service.
· 100% Fin Retention: Embedded fins withstand 50+ thermal cycles (ASME Sec. VIII Div.1).
· Cost Saving: 25% lower lifecycle cost vs. welded alloy fins.
· Customization: No-fin zones, beveled ends, and test coupons per client specs.

ASTM A213 T5 Embedded G Fin Tube For Heat Exchanger And Air Cooler 0
