ASME SA335 P9 Alloy Steel HFW Solid Finned Tube With Carbon Fin For Heat Exchangers

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable

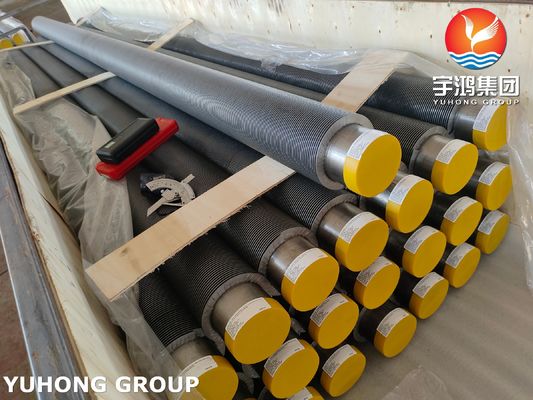

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Bare Tube Diameter:

16-219MM

Bare Tube Specification&Material:

ASME SA335 P9

Fin Pitch:

3-25MM

Fin Height:

5-30MM

Fin Thick:

0.8-3MM

Application:

Power Plant, Air Preheaters, Boiler, Heat Exchangers, Refrigeration And Air Conditioning Systems

Supply Ability:

According to Clients' requirements

Highlight:

SA335 Solid Finned Tube

Alloy Steel Solid Finned Tube

Product Description

1.What is ASME SA335 P9 Alloy Steel HFW Solid Finned Tube with Carbon Fin?

ASME SA335 P9 HFW Solid Finned Tube with Carbon Fin is a high-temperature solution engineered for sulfur-rich environments. It combines a seamless chromium-molybdenum alloy steel base tube (ASME SA335 P9) with helically wound solid carbon steel fins bonded via high-frequency welding (HFW). This robust design delivers exceptional resistance to sulfidation and oxidation up to 600°C (1,112°F), making it ideal for refinery heaters, coker units, and high-sulfur flue gas applications.

2.Chemical & Mechanical Properties

Dimensional Specifications:

Base Tube O.D:15.88–325 mm

Fin Height::

6–50.8 mm

Fin Thickness:

0.8–3.0 mm

Fin Pitch: As Customer’s Request

Tube Ends: Plain Ends / Beveled Ends

No Fin Area (Both Ends): As Customer’s Request And Drawing

Chemical Composition (%)

SA335 P9 Base Tube Chemical Composition (%)
Element	C	Mn	P	S	Si	Cr	Mo	Others
Range	≤0.15	0.30~0.60	≤0.025	≤0.025	0.50~1.00	8.00~10.00	0.90~1.10	Balance (Fe)

Mechanical Properties

Property	SA335 P9 Base Tube	Carbon Steel Fin
Tensile Strength	≥ 415 MPa	≥ 400 MPa
Yield Strength	≥ 205 MPa	≥ 250 MPa
Elongation	≥ 30%	≥ 23%
Hardness	≤ 179 HB	≤ 150 HB
Max Service Temp.	600°C (1,112°F)	400°C (752°F)
Sulfidation Resistance	★★★★★ (Per NACE RP0472)	★★☆

3.Key Applications

· Refinery Heaters: Convection sections in crude/vacuum distillation units.

· Delayed Cokers: Transfer line exchangers handling 500°C+ vapors.

· Coal-Fired Plants: Economizers for high-sulfur flue gas (SO₂ > 3,000 ppm).

· Chemical Processing: Sulfuric acid regeneration heaters.

· Petrochemical: Hydrogen reformer effluent boilers.

4.Why Choose ASME SA335 P9 Alloy Steel HFW Solid Finned Tube :

A:Company Competitiveness:

Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market.

B:Product Competitiveness:

· 5X Sulfidation Life: Outperforms carbon steel tubes per API RP939-C.
· Zero Fin Detachment: HFW ensures >120 MPa bond strength (AWS D17.1).
· Cost Efficiency: Carbon steel fins reduce cost by 40% vs. alloy fins.
· Rapid Delivery: 30% stock coverage for standard sizes (OD 19–102mm).
