A179 Wound L Type Fin Tube Carbon Steel Seamless Tube For Air Cooler

Brand Name:	Yuhong
Model Number:	A179
MOQ:	100 kgs
Price:	Negotiable
Packaging Details:	Ply-wooden case with iron frame
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, CCS, DNV, LR

Base Tube Material:

Aluminum 1060

Fin Wall Thickness:

~0.4mm

Fin Tube Test:

HT/ET

Heat Transfer Efficiency:

Excellent

Type:

Spiral Wound Fin Tubes L Type

Size And Details:

According To Clients' Need

Base Tube Standard:

ASTM A179 , ASME SA179

Tube Type:

Seamless

Highlight:

Wound Fin Tube A179

Air Cooler Wound Fin Tube

L Type Wound Fin Tube

Product Description

Carbon Steel Seamless Tube A179, Wound Fin Tube, L Type Fin Tube, For Air Cooler

Product Specifications

Attribute	Value
Base Tube Material	Aluminum 1060
Fin Wall Thickness	~0.4mm
Fin Tube Test	HT/ET
Heat Transfer Efficiency	Excellent
Type	Spiral Wound Fin Tubes L Type
Size And Details	According to clients' need
Base Tube Standard	ASTM A179 , ASME SA179
Tube Type	Seamless

Product Overview

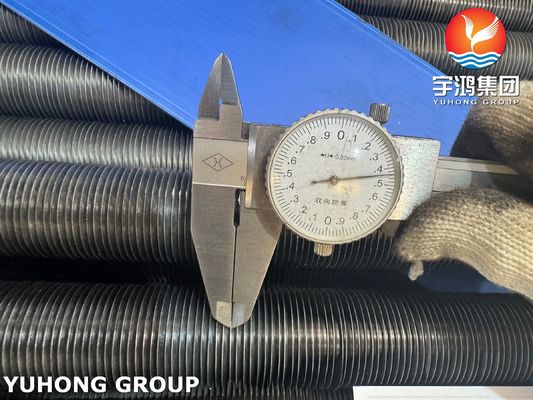

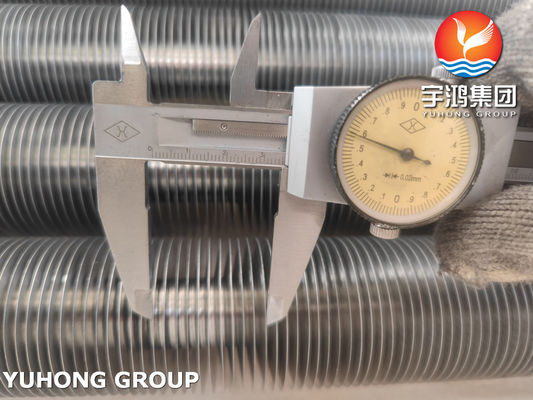

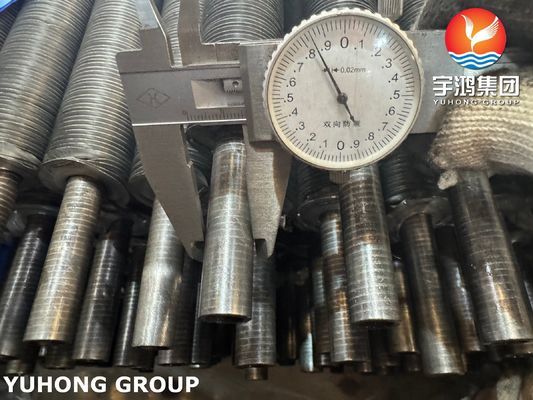

This L Type Wound Fin Tube is made using ASTM A179 carbon steel seamless tube as the base tube and a high-purity aluminum strip (typically Al1060) as the fin. The L-type fin is tightly wound and mechanically bonded onto the base tube to maximize contact surface, promoting efficient heat transfer and corrosion resistance. It is a reliable solution for air cooler systems in industrial plants.

Chemical Composition

Base Tube - ASTM A179 (Carbon Steel)

Element	C (%)	Mn (%)	P (%)	S (%)
Content	0.06-0.18	0.27-0.63	≤0.035	≤0.035

Fin - Al1060 (Aluminum Strip)

Element	Al (%)	Si (%)	Fe (%)	Cu (%)	Zn (%)
Content	≥99.6	≤0.25	≤0.35	≤0.05	≤0.05

Mechanical Properties

ASTM A179 Base Tube

Property	Value
Tensile Strength	≥325 MPa
Yield Strength	≥180 MPa
Elongation	≥35%
Hardness	≤72 HBW

Key Advantages

Tight Wound Fins: L-type fins are tightly wrapped with overlapping feet, offering enhanced heat transfer and good corrosion protection at the base.
Economical: Simple and cost-effective design for moderate operating conditions.
Improved Heat Efficiency: Enlarged surface area increases air-side heat exchange capacity.
Moderate Durability: Suitable for low to medium pressure and temperature environments.
Quick Delivery & Easy Manufacturing: Faster production times compared to embedded or extruded types.

Typical Applications

This L Type Fin Tube is typically used in:

Air Cooled Heat Exchangers (ACHE)
HVAC Units
Gas Coolers
Oil Coolers
Process Cooling Systems

Installation Zone in Air Coolers: Mainly used in convection zones or finned bundles where ambient or forced air flows across the fins to cool process fluid inside the tubes.
