Extruded Finned Tubes Carbon Steel Tube ASTM A179 With Aluminum 1060 Fins For Condensers And Air Coolers

Brand Name:	YUHONG
Model Number:	ASTM A179 Extruded Finned Tube With Al1100 Fins
MOQ:	1pc
Price:	Negotiable

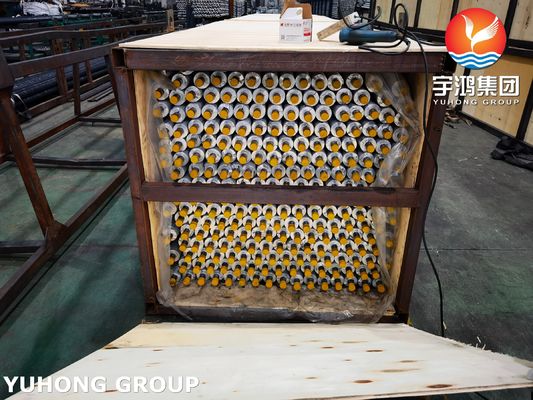

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product Name:

Carbon Steel Extruded Finned Tube

Bare Tube Specification&Material:

ASTM A179

Fin Material:

Aluminum 1060

Type:

Straight Tube , U Bend Tube , Coil Tube

Bare Tube OD:

8~51mm

Fin Height:

＜17mm

Fin Thickness:

0.2~0.4mm

Fin Pitch:

1.6~10mm

Application::

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Supply Ability:

According to Clients' requirements

Highlight:

ASTM A179 Carbon Steel Tube

Aluminum Fins Extruded Fin Tube

1060 Fins Extruded Fin Tube

Product Description

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

Extruded Finned Tubes ASTM A179 With Aluminum 1060 Fins For Consensers and Air Coolers Introduction

An Extruded Finned Tubes ASTM A179 With Aluminum 1060 Fins is a specialized heat exchanger component designed to enhance heat transfer efficiency. It consists of a base tube made of ASTM A179 minimum-wall-thickness, seamless cold-drawn low-carbon steel and fins made of Aluminum 1060, which are are formed by extruding heated metal through a die to simultaneously shape the base tube and fins in a single seamless process, enhancing heat transfer and mechanical strength.

1.Chemical & Mechanical Properties

ASTM A179 Chemical Composition (%)
C	Mn	P	S	Si	Fe
≤ 0.06 - 0.18%	0.27 - 0.63%	≤ 0.035%	≤ 0.035%	≥ 0.10% (typically 0.25-0.50%)	Balance (≥ 98%)

Aluminum 1060 Fins Chemical Composition (%)
Al	Fe	Si	Cu	Mn	Zn	Else
≥ 99.60%	≤ 0.35%	≤ 0.25%	≤ 0.05%	≤ 0.03%	≤ 0.05%	≤ 0.40%

Mechanical Properties

Component

Mechanical Performance

Key Features

ASTM A179
Base Tube

· Tensile Strength: ≥325 MPa
· Yield Strength: ≥180 MPa
· Elongation (in 50mm): ≥35%
· Hardness: ≤ 72HRB

· Precision cold-drawn seamless tubing for minimum wall thickness

· Thermal Conductivity: 52 W/m·K at 20°C

· Superior resistance to oxidation and water corrosion

· Maximum Operating Temperature: 450°C (843°F) for continuous service

· Moderate strength: Suitable for low/medium-pressure heat exchangers.

Aluminum 1060 Fins

· Tensile Strength: 70-110 MPa
· Elongation: 15-25%
· Hardness: 23 HB.

· Lightweight Design Reduces System Load
· Ductile For Vibration Absorption

2. Key Feature

(1) Ultra-high heat transfer efficiency

3-8x higher heat transfer vs. bare tubes

(2) Mechanical strength and lightness

Weight reduction: 40-60% Pressure bearing capacity

Pressure bearing capacity: 6.9MPa

(3) Anti-corrosion double insurance

A179 base tube for water corrosion resistance + optional anodized aluminum fins

(4) Vibration resistance

Fins are integrally formed and have zero looseness

3. Key Applications

(1) Power & Energy

Air-cooled condensers in thermal power plants

Waste heat recovery from gas turbine exhaust

Auxiliary cooling systems for nuclear power plants

(2) Petrochemical

Heat exchangers in crude oil distillation units

Cooling of cracked gas in ethylene production

Sulfuric acid plant gas cooling systems

(3) Industrial Manufacturing

Aftercoolers for industrial compressed air systems

Hydraulic oil cooling in plastic injection molding machines

Rolling mill lube oil coolers in steel plants

(4) Transportation & Marine

Central seawater coolers for marine engines

Cooling of traction converters in high-speed trains

Battery thermal management systems for EVs
