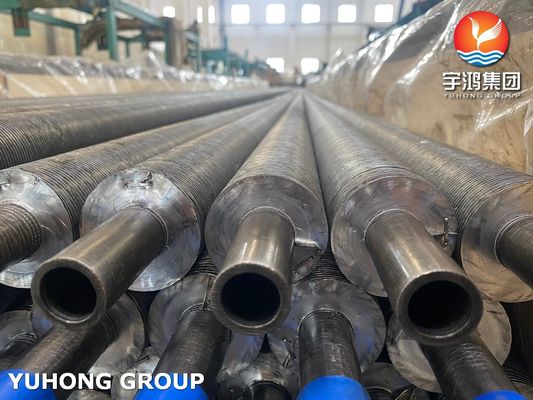

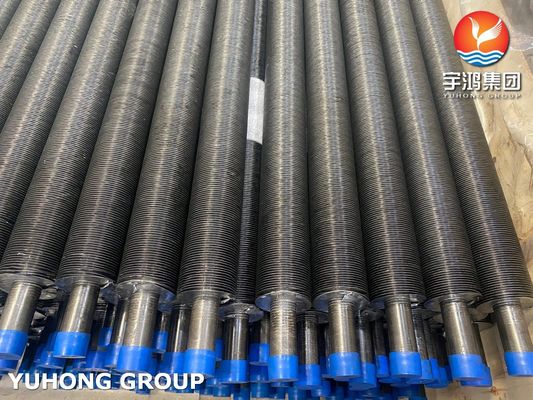

Embedded G Fin Tube StainlessSteel Seamless Tube ASTM A213 TP316L With Aluminum 1060 For Heat Exchangers And Air Coolers

Brand Name:	YUHONG
Model Number:	G Fin tube , Embedded Fin tube , Stainless Steel Embedded G Type Fin Tube
MOQ:	1pc
Price:	Negotiable

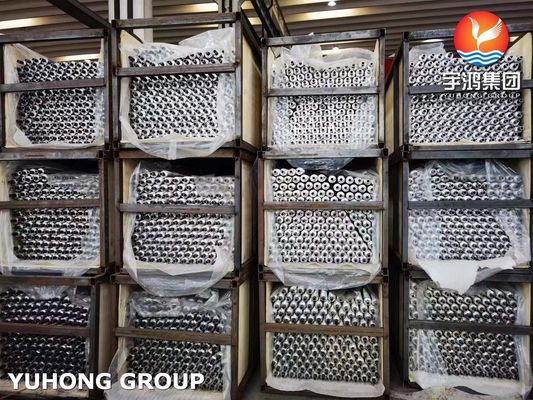

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product Name:

Embedded Finned Tube / G Finned Tube

Base Tube Specification & Material:

ASTM A213 316L

Fin Material:

Aluminum 1060

Fin Pitch:

2.1-5 MM

Fin Thick:

~0.4 MM

Fin Height:

<17MM

Base Tube OD:

15.88-51MM

Application:

Heat Exchanger, Air Cooler, Boiler, Condenser

Supply Ability:

According to Clients' requirements

Product Description

1.What is Embedded G Fin Tube Stainless Steel Seamless Tube ASTM A213 TP316L With Aluminum 1060?
An Embedded G Finned Tube ASTM A213 TP316L with Aluminum 1060 Fins is a specialized heat exchanger component designed to enhance heat transfer efficiency. It consists of a base tube made of ASTM A213 TP316L stainless steel and fins made of Aluminum 1060, which are tightly embedded in the outer surface of the base tube with mechanical grooves. This combination leverages the strengths of both materials to provide high thermal performance, durability, and corrosion resistance.

2.Chemical & Mechanical Properties

ASTM A213 TP316L Chemical Composition (%)

≤0.035

≤0.045

≤0.03

16.0~18.0

10.0~14.0

2.0~3.0

Aluminum 1060 Fins Chemical Composition (%)
Al	Fe	Si	Cu	Mn	Zn	Else
≥ 99.60%	≤ 0.35%	≤ 0.25%	≤ 0.05%	≤ 0.03%	≤ 0.05%	≤ 0.40%

Mechanical Properties

Component

Mechanical Performance

Key Features

ASTM A213 TP316L
Base Tube

· Tensile Strength: ≥485 MPa
· Yield Strength (0.2% Offset): ≥170 MPa
· Elongation (in 50mm):
≥35% (Longitudinal) / ≥25% (Transverse)
· Hardness (Max): HB 217

· General Corrosion Resistance

· Pitting & Crevice Resistance

· Intergranular Corrosion Resistance

· Oxidation Resistance: Continuous service up to 870°C

· High-Temperature Strength: Yield strength ≥110 MPa at 540°C

Aluminum 1060 Fins

· Tensile Strength: 70-110 MPa
· Elongation: 15-25%
· Hardness: 23 HB.

· Lightweight Design Reduces System Load
· Ductile For Vibration Absorption

3. Key Features

(1) High-Efficiency Heat Transfer

Aluminum 1060 Fins (237 W/(m·K)) Enhances Heat Dissipation

Fins Increase Surface Area By 3-5x

(2) Corrosion Resistance & Lightweight

316L Base Tube Corrosion Resistance

30%-50% Weight Reduction: Compared to all-stainless fin tubes

(3) Reliable Structural Design

Zero Fin Loosening Under Extreme Conditions

Adjustable Fin Height (5-20MM) , Density (8-40FPI) , etc.

4. Key Applications

Chemical & Petrochemical Industry: Acid/Alkali Heat Exchangers; Crude Oil Preheaters; Chlor-Alkali Condensers

Power & Energy: Geothermal Heat Exchangers; Gas Turbine HRSG (Heat Recovery Steam Generator); Nuclear Plant Auxiliary Cooling

Marine & Offshore: Marine Engine Coolers; LNG Carrier Heat Exchangers; Offshore Oil Cooling

HVAC & Refrigeration: Central AC Condensers; Chiller Evaporators; Heat Pump Systems

Food & Pharmaceutical: Pasteurization Equipment; Fermentation Tank Cooling; Pharmaceutical Dryers
