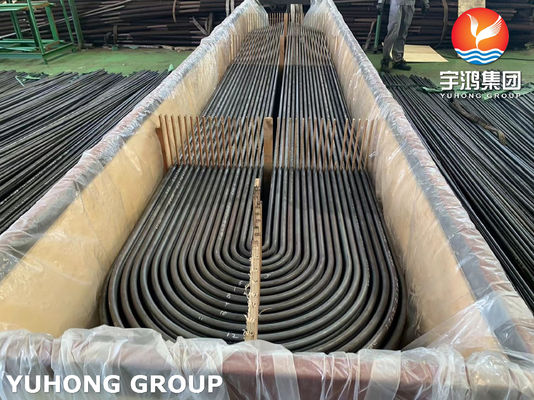

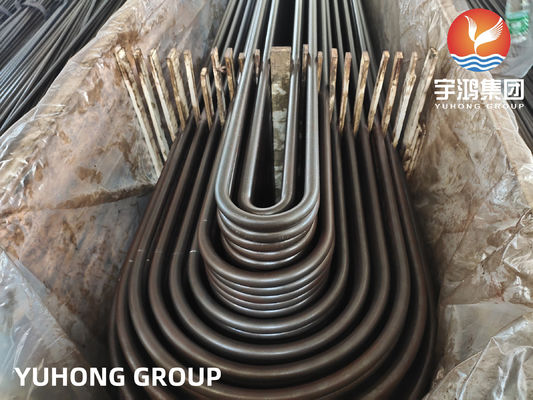

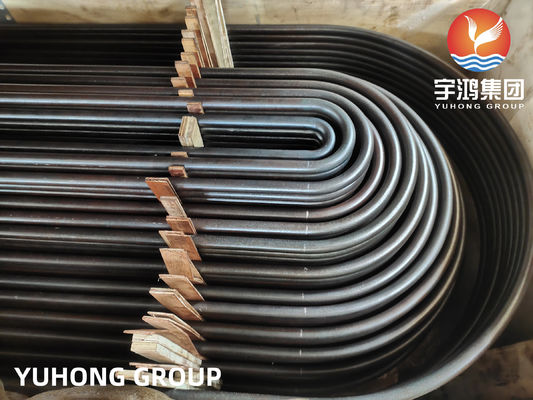

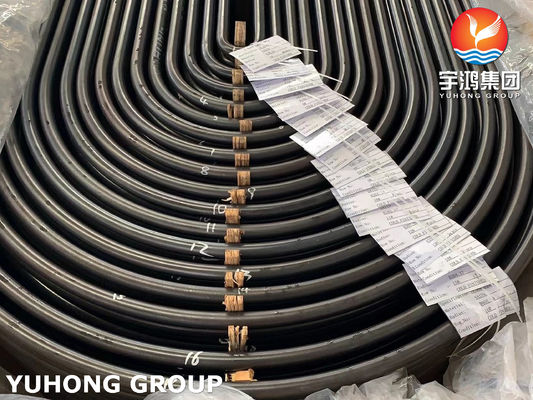

ASTM A179 Carbon Steel Seamless Tube U Bend Tube For Heat Exchanger Tube

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	ply-wooden case with iron frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, CCS, DNV, LR,

ET, HT,PT

Heat Treatment:

Annealed

Finish:

Smooth

Length:

Customized

Surface Treatment:

Polished

Tube Specification:

ASME SA179

Product Description

ASTM A179 Carbon Steel Seamless Tube U Bend Tube For Heat Exchanger Tube

Description:

ASTM A179 U-bend tubes are seamless cold-drawn carbon steel tubes specifically designed for heat exchanger systems, particularly where space-saving U-shaped bends are needed. The tubes offer excellent thermal conductivity and dimensional precision, making them ideal for shell-and-tube heat exchangers, condensers, and cooling coils.

The U-bending process is carried out with precision tooling and controlled heat treatment to ensure no wall thinning, no wrinkling, and optimal flow direction.

Chemical Composition (ASTM A179):

Element	Content (%)
Carbon (C)	≤ 0.06
Manganese (Mn)	0.27 – 0.63
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.035
Iron (Fe)	Balance

Mechanical Properties:

Property	Value
Tensile Strength	≥ 325 MPa
Yield Strength	≥ 180 MPa
Elongation	≥ 35%
Hardness (Brinell)	≤ 72 HB

Advantages:

Precise U-bending with minimal deformation or thinning,Seamless tubes minimize the risk of leakage and offer better corrosion resistance compared to welded tubes.
Excellent thermal conductivity:Carbon steel offers good heat transfer properties, suitable for efficient energy exchange.
Good ductility and elongation, suitable for bending and coiling
Cost-effective carbon steel option for moderate temperature and pressure
Smooth inner surface for improved fluid flow and heat transfer

Applications:

Shell & tube heat exchangers
Boilers and condensers
Air preheaters
HVAC systems
Petrochemical refineries
Power plants (low-pressure steam applications)

ASTM A179 Carbon Steel Seamless Tube U Bend Tube For Heat Exchanger Tube 0
