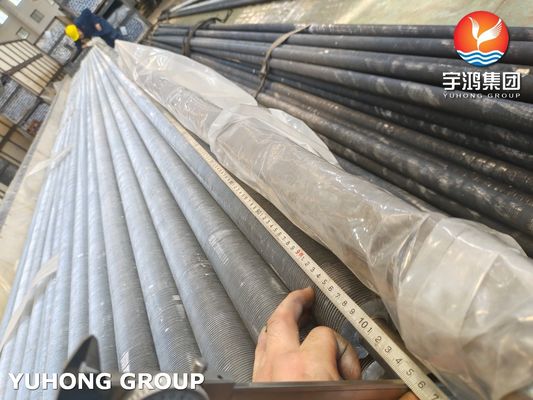

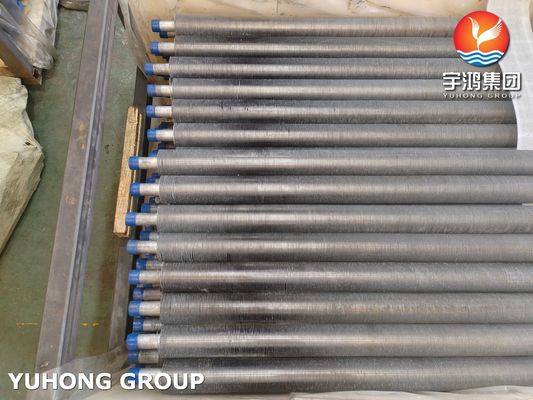

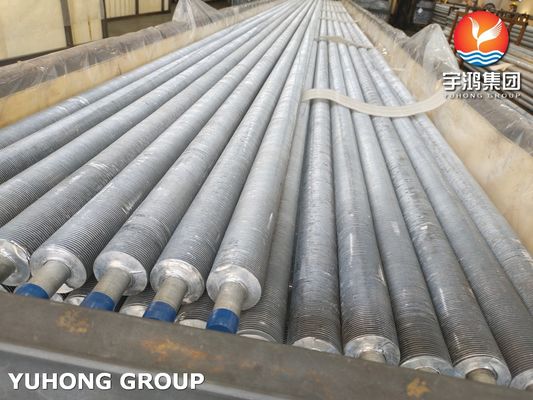

ASTM A269 TP304 Extruded Finned Tubes With Aluminum 1060 Fins For Air Coolers Fin Height 17MM Fin Thick 0.2-0.4MM

Brand Name:	Yuhong
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

ASTM A269 TP304

Fin Type:

Extruded

Bare Tube Diameter:

8-51MM

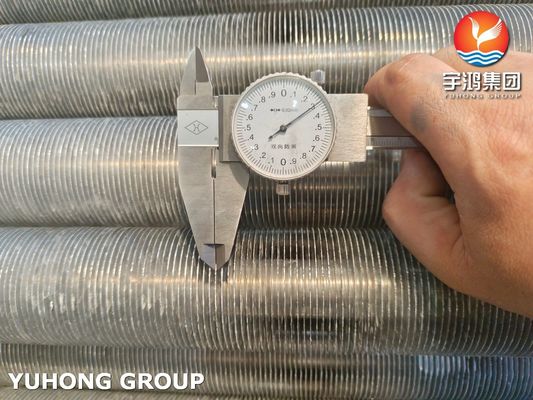

Fin Height:

<17MM

Fin Thick:

0.2-0.4MM

Application:

Heat Exchanger, Air Cooler, Heat Systems...

Supply Ability:

According to Clients'reguirements

Highlight:

17MM Extruded Finned Tubes

ASTM A269 Extruded Finned Tubes

Air Coolers Extruded Finned Tubes

Product Description

1. What is ASTM A269 TP304 Extruded Finned Tube with Aluminum 1060?

The ASTM A269 TP304 Extruded Finned Tube with Aluminum 1060 is a premium heat transfer solution designed for corrosive and high-purity applications. It combines a seamless austenitic stainless steel base tube (ASTM A269 TP304, 18% Cr, 8% Ni) with Aluminum 1060 fins (99.6% pure aluminum) through a precision extrusion process. The fins are mechanically bonded to the tube surface under controlled conditions, ensuring a seamless, gap-free interface. This hybrid design leverages the corrosion resistance of TP304 stainless steel in acidic/chloride environments and the ultra-high thermal conductivity of Aluminum 1060, making it ideal for industries requiring hygiene, durability, and rapid heat transfer.

2. Chemical & Mechanical Properties

Chemical Properties

Component	Chemical Composition	Key Features
ASTM A269 TP304 Base Tube	• Cr: 18–20%, Ni: 8–10.5%, C: ≤0.08%, Mn: ≤2.0%, Fe: Balance.	• Resists pitting, crevice corrosion, and oxidizing acids. • Passivation-ready for hygienic applications.
Aluminum 1060 Fins	• Al: 99.6% min, Fe+Si: ≤0.40%, Cu: ≤0.05%.	• Exceptional thermal conductivity (235 W/m·K). • Non-reactive in neutral/alkaline environments.
Synergy	• Electrically insulated bonding prevents galvanic corrosion between steel and aluminum.	• Ideal for systems with thermal cycling and humidity.

Mechanical Properties

Component	Mechanical Performance	Key Features
ASTM A269 TP304 Base Tube	• Tensile Strength: 515–860 MPa • Yield Strength: 205 MPa (min) • Hardness: 70–90 HRB.	• High-pressure tolerance (up to 30 MPa). • Maintains ductility at cryogenic temperatures.
Aluminum 1060 Fins	• Tensile Strength: 70–110 MPa • Elongation: 15–25% • Hardness: 23 HB.	• Lightweight for reduced structural load. • Easy to clean and maintain.
Bond Integrity	• Shear Strength: ≥50 MPa at fin-tube interface. • Thermal Cycling: Stable under ΔT up to 300°C.	• Zero fin detachment under vibration.

3. Key Applications

· Pharmaceutical & Biotechnology: Sterilizable heat exchangers for clean-in-place (CIP) systems.

· Food & Beverage: Hygienic pasteurizers, chillers, and steam heating systems (FDA/EHEDG compliant).

· Chemical Processing: Acid-resistant condensers and reactors.

· HVAC & Refrigeration: Energy-efficient air coolers and heat pumps.

· Marine Engineering: Corrosion-resistant cooling systems for seawater desalination.

4.Why Choose ASTM A269 TP304 + Aluminum 1060 Finned Tubes?

· 40% Faster Heat Transfer vs. all-stainless-steel finned tubes.
· Zero Cross-Contamination: Smooth surface meets FDA/EHEDG hygiene standards.
· 50% Lighter Weight than full-metal designs, reducing installation costs.
· Certified Reliability: Complies with ASTM A269, ASTM B209, and ISO 9001.
· 20-Year Lifespan in corrosive environments.
