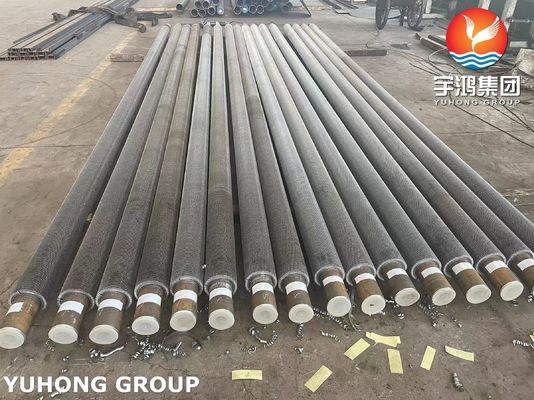

Alloy Steel, HFW Serrated Fin Tube, ASTM A335 P9 With 13CR Fin, For Radiator Tube

Key Features:

1. Base Tube Material: ASTM A335 P9 Alloy Steel

• ASTM A335 P9 is a chromium-molybdenum alloy steel (Cr-Mo) designed for high-temperature applications such as steam pipes, furnaces, and power generation systems.

• This material provides excellent creep strength, oxidation resistance, and long-term durability in high-temperature environments, making it ideal for heat exchangers, boilers, and radiator tubes in systems where high thermal performance is essential.

2. Fin Type: Serrated Fin Design

• The serrated fin design increases the surface area available for heat exchange and promotes turbulence in the fluid or gas passing over the tube, which improves heat transfer efficiency.

• The serrated edges of the fins help reduce the boundary layer of fluid around the tube, improving heat dissipation and making it particularly effective in radiator tube applications.

3. Fin Material: 13Cr Stainless Steel

• The 13Cr (13% Chromium) stainless steel fins provide excellent corrosion resistance in high-temperature environments, making this tube ideal for use in heat exchangers and radiators exposed to hot gases, steam, and other corrosive environments.

• 13Cr stainless steel also offers good wear resistance and thermal stability, ensuring the fins retain their mechanical integrity under the stresses of thermal cycling and high-pressure conditions.

4. Application: Radiator Tubes, Heat Exchangers, Furnaces, Boilers

• This HFW serrated fin tube is specifically designed for use in radiator tubes, furnaces, and heat exchangers, where efficient heat dissipation and thermal performance are essential in high-temperature applications.

• The tube is ideal for cooling systems, furnaces, boilers, and power generation systems where maximizing heat transfer efficiency and minimizing space are key factors.

Chemical Composition

Base Tube: ASTM A335 P9 Alloy Steel

Fin Material: 13Cr Stainless Steel

Mechanical Properties

Base Tube: ASTM A335 P9 Alloy Steel

Fin Material: 13Cr Stainless Steel

Advantages:

1. Enhanced Heat Transfer Efficiency:

   • The serrated fin design increases the surface area for heat exchange, improving the overall thermal efficiency in radiator tubes and cooling systems.

2. High-Temperature Performance:

   • ASTM A335 P9 alloy steel offers excellent resistance to high-temperature oxidation and creep strength, ensuring long-lasting performance in furnaces, boilers, and heat exchangers exposed to high temperatures.

3. Corrosion Resistance:

   • The 13Cr stainless steel fins provide superior resistance to corrosion, particularly in environments exposed to sulfur compounds, chlorides, and oxidizing gases found in industrial heating systems.

4. Durability and Strength:

   • The combination of ASTM A335 P9 alloy steel base tube and 13Cr stainless steel fins provides high strength, resilience, and thermal stability under thermal cycling, high-pressure, and high-temperature conditions.

5. Cost-Effective:

   • The use of 13Cr stainless steel fins with alloy steel tubes provides a cost-effective solution without compromising on corrosion resistance, heat transfer efficiency, or durability.

Applications:

• Radiator Tubes: Ideal for use in radiators for furnaces, boilers, and heat exchangers that require efficient heat transfer in high-temperature environments.

• Heat Exchangers: Suitable for industrial heat exchangers in chemical processing, oil refining, and power generation industries where heat transfer efficiency is crucial.

• Cooling Systems: Effective in cooling towers, air-cooled condensers, and HVAC systems where high thermal performance is needed.

• Furnaces and Boilers: Perfect for high-temperature applications like furnaces and boilers where heat dissipation and corrosion resistance are key factors.
