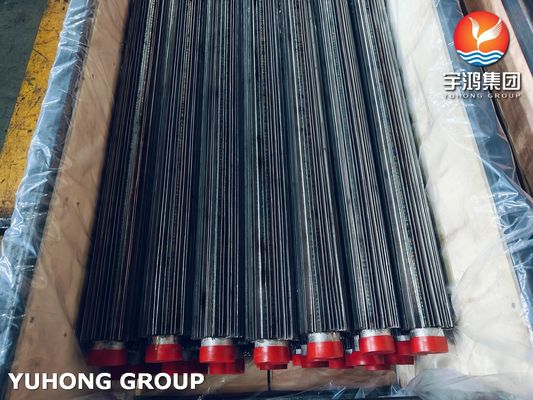

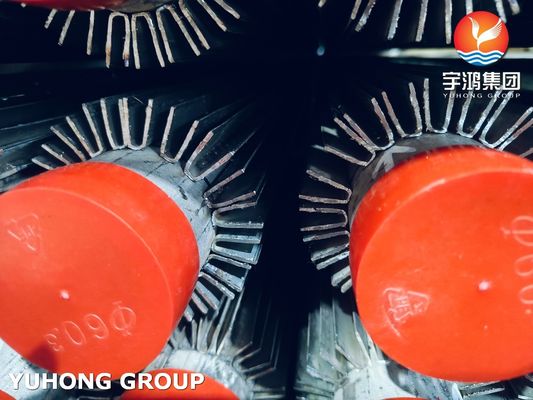

Name: ASTM A213 TP316L Longitudinal Finned Tube with SS316L Fins for Oil Cooler
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: TP304,TP316L
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	TP304,TP316L
MOQ:	1 pc
Price:	Negotiable

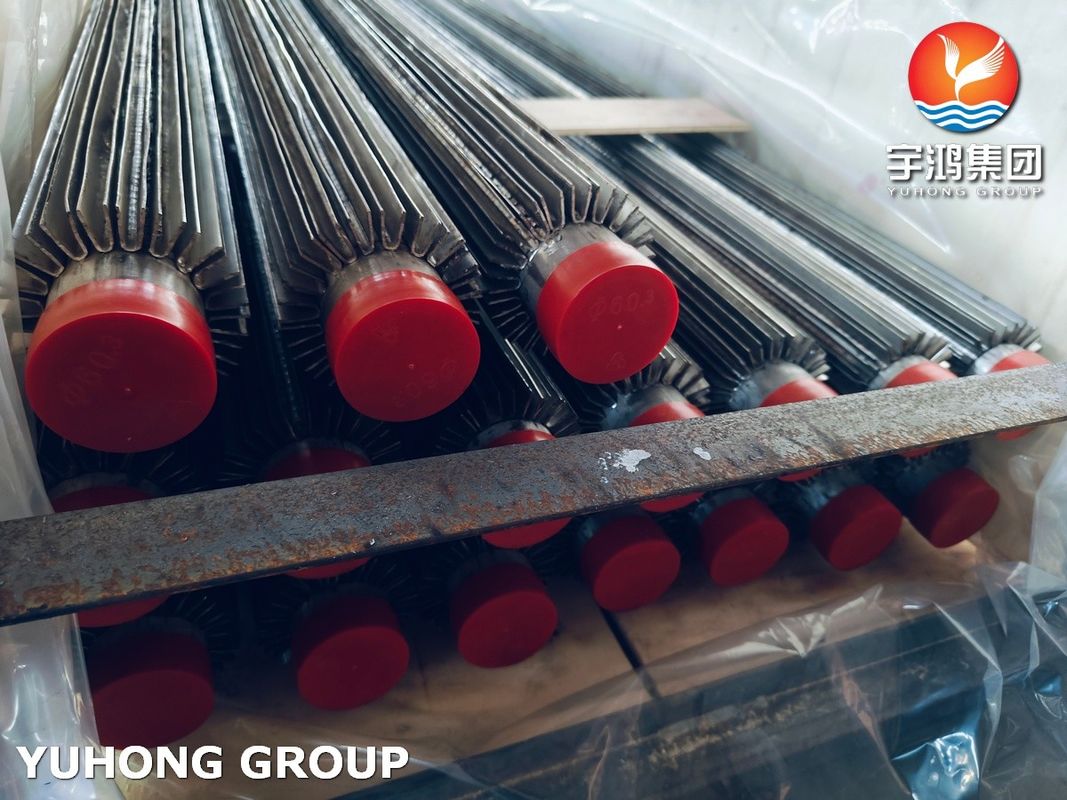

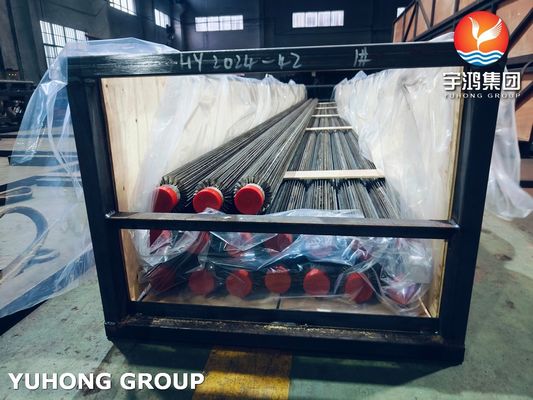

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material:

TP304, TP316L,

Fin Material:

SS304, SS316L,

Fin Thickness:

1.23mm

Fin Connection:

Welding

Fin Height:

15.875mm

Application:

Furnace, Oil And Gas

Highlight:

SS316L Longitudinal Finned Tube

ASTM A213 Longitudinal Finned Tube

Oil Cooler Longitudinal Finned Tube

Product Description

Longitudinal Finned Tube ASTM A213 TP316L Tube with SS316L Fins for Oil Cooler

Key Features:

Base Tube Material: ASTM A213 TP316L Stainless Steel, providing excellent corrosion resistance, particularly in harsh environments like oil coolers where resistance to high temperatures and chemical exposure is crucial.
Fin Material: SS316L Stainless Steel, known for its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, ideal for applications in oil coolers.
Fin Type: Longitudinal Fins, designed to provide efficient heat transfer by increasing the heat exchange surface area along the tube.
Application: Specifically engineered for oil cooler systems, providing high-performance cooling in hydraulic, mechanical, and industrial oil circuits.

Technical Specifications:

Property	Base Tube (ASTM A213 TP316L)	Fin Material (SS316L)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.5 mm - 4.0 mm	-
Fin Thickness	-	1.5 mm - 3.5 mm
Fin Height	-	10 mm - 40 mm
Fin Attachment	Welded or Mechanically Bonded

Chemical Composition:

Element	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Carbon (C)	≤ 0.03%	≤ 0.03%
Manganese (Mn)	2.00% (max)	2.00% (max)
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.030%	≤ 0.030%
Chromium (Cr)	16.00 - 18.00%	16.00 - 18.00%
Nickel (Ni)	10.00 - 14.00%	10.00 - 14.00%
Molybdenum (Mo)	2.00 - 3.00%	2.00 - 3.00%

Mechanical Properties:

Property	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Tensile Strength	≥ 485 MPa	≥ 485 MPa
Yield Strength	≥ 170 MPa	≥ 170 MPa
Elongation	≥ 35%	≥ 35%

Advantages:

Corrosion Resistance: SS316L fins and ASTM A213 TP316L base tube offer exceptional resistance to aggressive environments, including oils, chemicals, and saline conditions.
Efficient Heat Transfer: Longitudinal fins increase the surface area for heat exchange, making these tubes highly efficient in oil cooler applications.
High-Temperature Durability: Both materials maintain their mechanical properties even at elevated temperatures, ideal for oil cooling systems.
Enhanced Mechanical Stability: The welded or mechanically bonded fins ensure robustness under high pressures and thermal stress.

Applications:

Oil Coolers: Effective in cooling oils in automotive, industrial, and marine systems.
Hydraulic Systems: Maintaining oil temperature in hydraulic machines and circuits.
Power Plants: For cooling lubricants and oils in machinery and compressors.
Chemical Processing: Oil cooling in equipment exposed to corrosive environments.

ASTM A213 TP316L Longitudinal Finned Tube with SS316L Fins for Oil Cooler 0
