Name: ASTM A213/ ASME SA213 TP316L Longitudinal Finned Tube With SS316L Fin Strip
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: TP304,TP316L
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	TP304,TP316L
MOQ:	1 pc
Price:	Negotiable

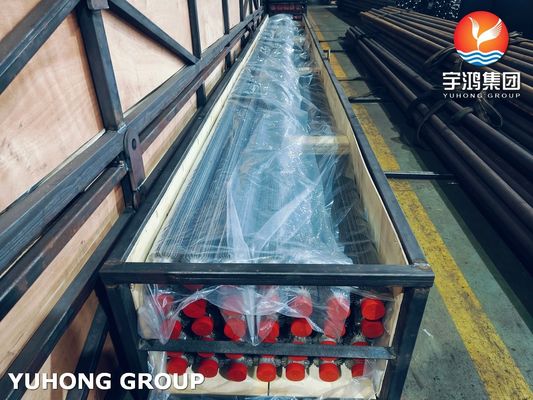

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material:

TP304, TP316L,

Fin Material:

SS304, SS316L,

Fin Thickness:

1.23mm

Fin Connection:

Welding

Fin Height:

15.875mm

Application:

Furnace, Oil And Gas

Highlight:

Heater Longitudinal Finned Tube

TP316L Longitudinal Finned Tube

ASTM A213 Longitudinal Finned Tube

Product Description

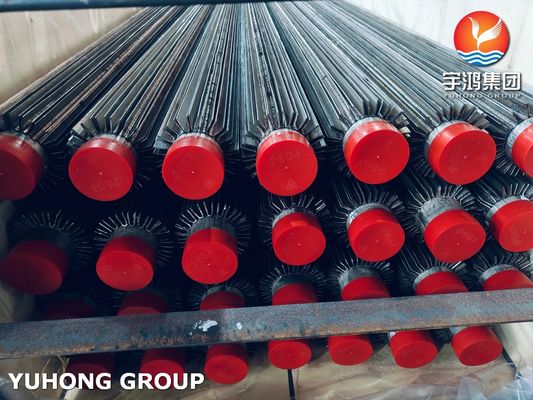

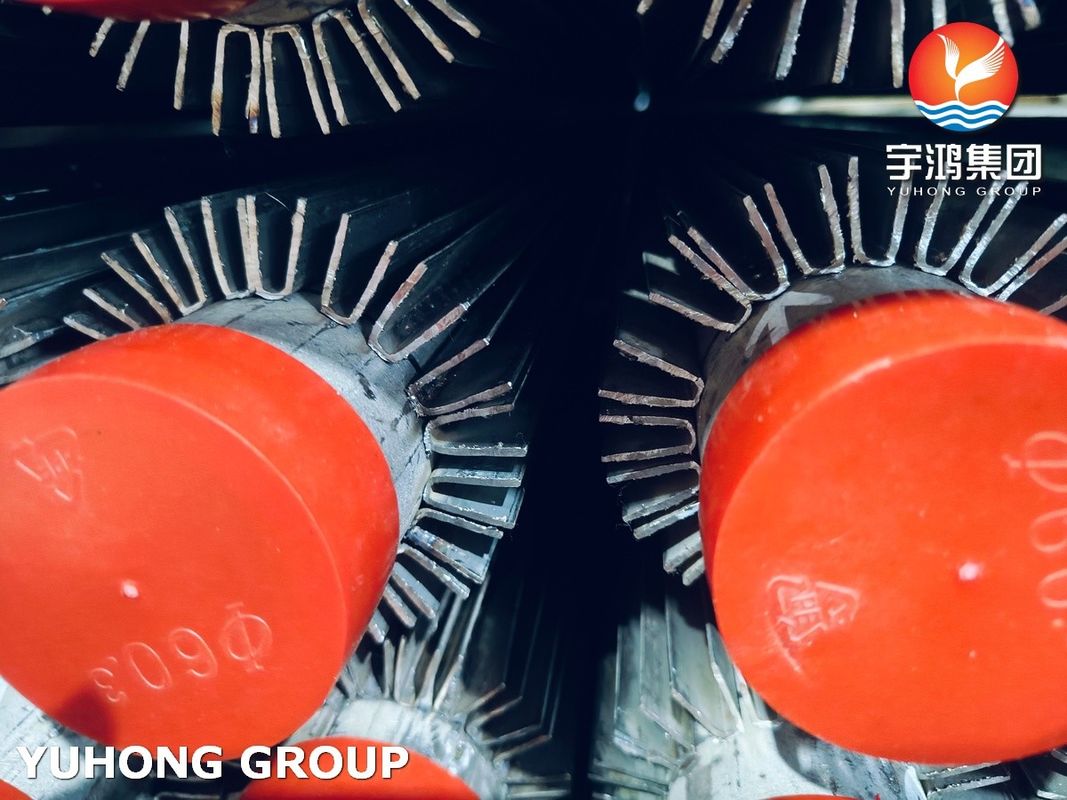

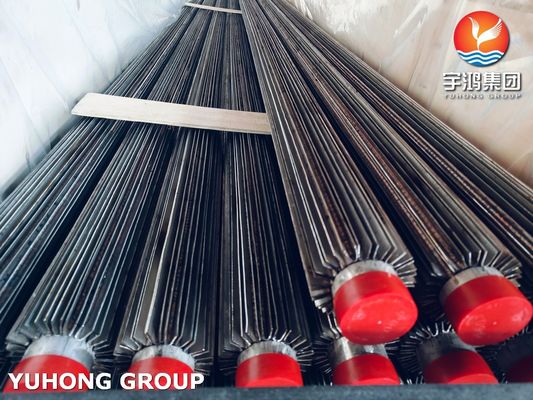

ASTM A213/ ASME SA213 TP316L Longitudinal Finned Tube With SS316L Fin Strip

Key Features:

Base Tube Material: ASTM A213 TP316L Stainless Steel, offering superior corrosion resistance, high-temperature strength, and mechanical properties.
Fin Material: SS316L Stainless Steel, providing excellent resistance to high-temperature oxidation and pitting corrosion, ideal for harsh environments.
Fin Type: Longitudinal Fins, designed for efficient heat transfer and improved mechanical performance under thermal and mechanical stress.
Application: Specifically designed for use in heaters, such as in heat exchangers, superheaters, and industrial heating systems.

Technical Specifications:

Property	Base Tube (ASTM A213 TP316L)	Fin Material (SS316L)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.5 mm - 4.0 mm	-
Fin Thickness	-	1.5 mm - 3.5 mm
Fin Height	-	10 mm - 40 mm
Fin Attachment	Welded or Mechanically Bonded

Chemical Composition:

Element	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Carbon (C)	≤ 0.03%	≤ 0.03%
Manganese (Mn)	2.00% (max)	2.00% (max)
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.030%	≤ 0.030%
Chromium (Cr)	16.00 - 18.00%	16.00 - 18.00%
Nickel (Ni)	10.00 - 14.00%	10.00 - 14.00%
Molybdenum (Mo)	2.00 - 3.00%	2.00 - 3.00%

Mechanical Properties:

Property	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Tensile Strength	≥ 485 MPa	≥ 485 MPa
Yield Strength	≥ 170 MPa	≥ 170 MPa
Elongation	≥ 35%	≥ 35%

Advantages:

Superior Corrosion Resistance: Both TP316L and SS316L provide excellent resistance to chloride-induced stress corrosion cracking, ideal for harsh environments like chemical plants or marine applications.
High-Temperature Strength: These materials maintain their mechanical properties even at elevated temperatures, making them suitable for heater applications.
Efficient Heat Transfer: Longitudinal fins enhance the heat transfer surface area, optimizing performance in heat exchangers and industrial heaters.
Durability: The welded or mechanically bonded fins offer superior mechanical stability, making these tubes durable in high-stress environments.

Applications:

Heater Coils: Ideal for use in industrial heating systems, including superheaters and reheaters.
Chemical and Petrochemical Industries: Heat exchangers in corrosive and high-temperature environments.
Power Plants: For use in boiler systems, particularly in high-temperature areas.
Food Processing and Pharmaceutical Plants: Heat transfer in stringent hygiene and temperature-controlled processes.
