U Bend Solid Finned Tube HFW For Fired Heater Furnace Convection Section

Brand Name:	Yuhong
Model Number:	ASTM A106 Gr.B
MOQ:	100 KGS
Price:	Negotiable
Packaging Details:	Plywooden case with Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product Name:

U Bend Solid Finned Tube

Type:

High Frequency Welded Finned Tube

Application:

Waste Heat Recovery Unit, Furnace Convection Section, Economizer

Dimensions:

88.9mm, 101.6mm, 114.3mm, 168.3mm, Etc.

Length:

1-30000mm

Fin Height:

4-17mm

Tube Material:

Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc

Fin Material:

Carbon Steel, Stainless Steel And Alloy Steel Etc

Warranty:

6 Months

Welding Area:

According To Actual Demand

Supply Ability:

4150 Ton Per Month

Highlight:

Convection Section Solid Finned Tube

U Bend Solid Finned Tube

Fired Heater Furnace Solid Finned Tube

Product Description

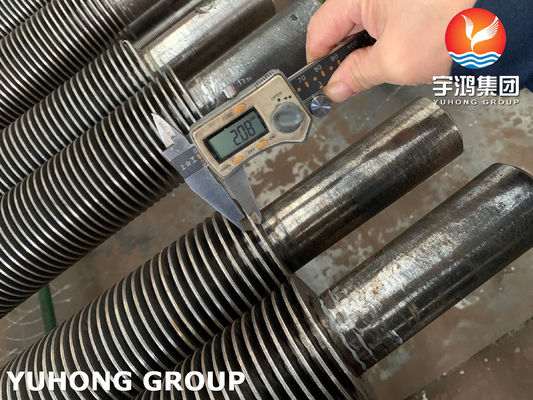

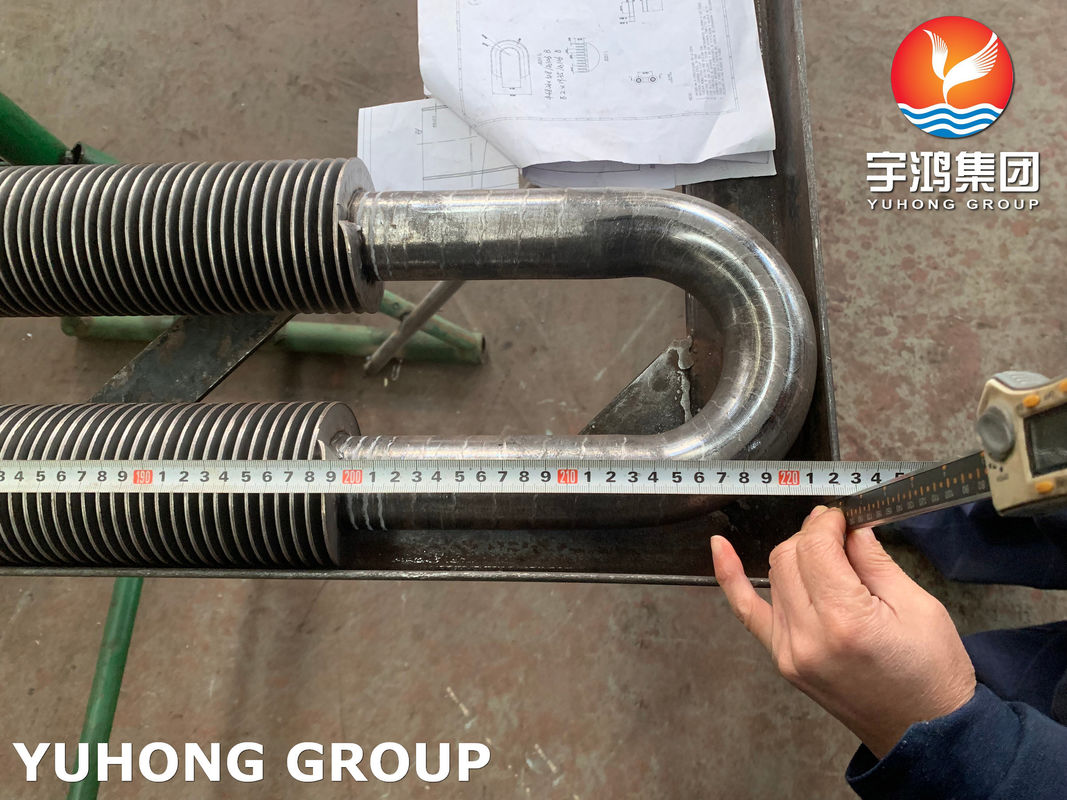

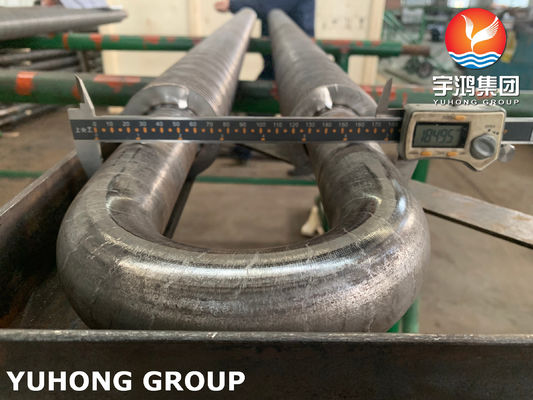

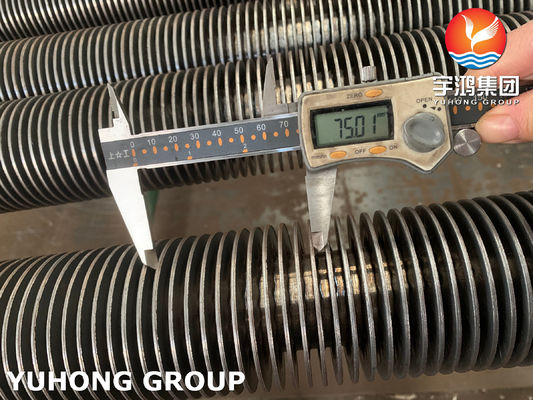

U Bend Solid Finned Tube HFW For Fired Heater Furnace Convection Section

Product Overview:

Our High-Frequency Welded (HFW) U-Bend Solid Finned Tubes are specifically engineered for industrial furnace convection sections, offering superior heat transfer efficiency and durability.

Technical Specifications:

Base Tube Specifications:

Parameter	Range
Outer Diameter	19.05-114.3mm
Wall Thickness	2.11-11.13mm
Length	Up to 24000mm
U-Bend Radius	1.5D-3D

Fin Specifications:

Parameter	Range
Fin Height	9.5-25.4mm
Fin Thickness	0.89-2.11mm
Fin Density	24-273 FPI
Fin Type	Solid, Serrated

Material Options:

Base Tube: Carbon Steel (A179, A192), Stainless Steel (304/304L, 316/316L)
Fins: Carbon Steel, Stainless Steel

Key Features:

High-frequency welding ensures superior fin-to-tube bonding
Excellent mechanical strength and thermal conductivity
Precision U-bend manufacturing with minimal ovality
Enhanced heat transfer efficiency
Superior corrosion resistance
Uniform fin spacing and height

Applications:

Fired Heater Convection Sections
Waste Heat Recovery Units
Process Gas Coolers
Steam Generators
Industrial Heat Exchangers

Quality Assurance:

100% Helium Leak Testing
Hydrostatic Testing
Ultrasonic Testing
X-Ray Testing for U-Bends
PMI Testing
Third-party Inspection Available

Chemical Composition (Example for Carbon Steel):

Element	C	Mn	P	S	Si
%	≤0.25	≤1.2	≤0.035	≤0.035	≤0.035

Manufacturing Process:

Base tube preparation and inspection
High-frequency fin welding
U-bend forming
Heat treatment
Quality testing
Surface treatment and protection

Yuhong Holding Group Co., Ltd., with 20 years of export experience to 80+ countries, ranks among China's top 5 finned tube exporters. Our 20,000 m² facility houses 55 production lines operated by 110+ skilled professionals, demonstrating our commitment to excellence in finned tube manufacturing.

Yuhong Holding Group maintains strict quality control throughout the manufacturing process, ensuring each product meets international standards including ASME, ASTM, and DIN. With our advanced production technology and commitment to excellence, we continue to serve as a reliable partner for industrial heat exchange solutions worldwide. Contact us today for customized solutions tailored to your specific requirements.
