ASTM B111 C12200 Low Fin Tube is a copper alloy tube with low fins that increase the surface area for enhanced heat transfer. Made from phosphorus-deoxidized copper, this tube offers excellent thermal and electrical conductivity.

Low Fin Design increases surface area without significantly adding to the volume, improving heat transfer efficiency. It has good resistance to various environments, including water and mild chemicals. And it's easily fabricated and joined through brazing or soldering.

Chemical Composition:

Grade	Cu	P
C12200	99.9% min	0.015-0.040%

Mechanical Properties:

Grade

Tensile Strength

Yield Strength

Elongation

Hardness

C12200

Varies depending

on temper

205-275 MPa

(30-40 ksi)

30% min in 50 mm

Varies with temper

Applications:

1. Heat Exchangers

Industrial Boilers:

Used in heat exchanger tubes for efficient thermal transfer.

Suitable for evaporators and condensers in HVAC systems.

Air Conditioning Units:

Maximizes energy efficiency and cooling performance.

Essential in condenser and evaporator coils.

2. Plumbing Systems

Water Supply Systems:

Commonly used in residential and commercial plumbing.

Offers reliability and corrosion resistance.

Solar Heating Systems:

Ideal for solar thermal panels due to high thermal conductivity.

Ensures efficient heat absorption and transfer.

3. Marine Applications

Seawater Piping Systems:

Resistant to corrosion in marine environments.

Used in desalination plants and shipbuilding.

4. Industrial Applications

Chemical Processing:

Suitable for transporting corrosive fluids at moderate temperatures.

Maintains integrity and performance in chemical plants.

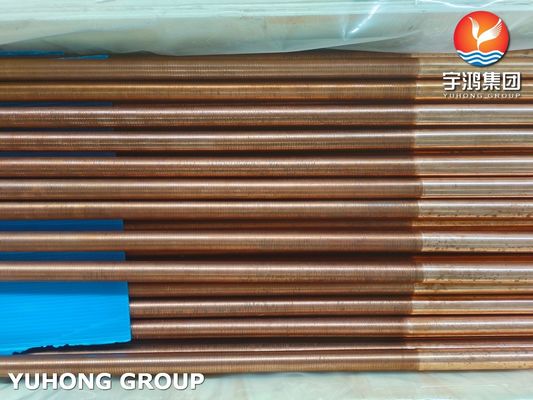

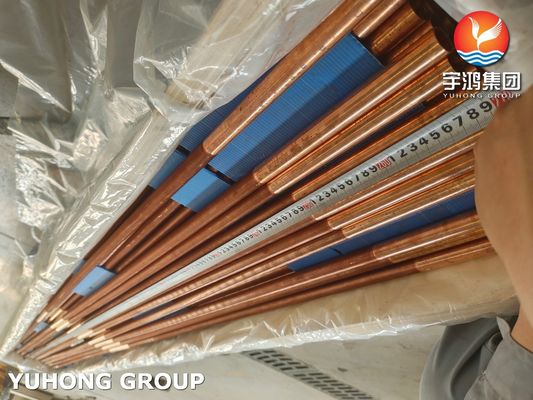

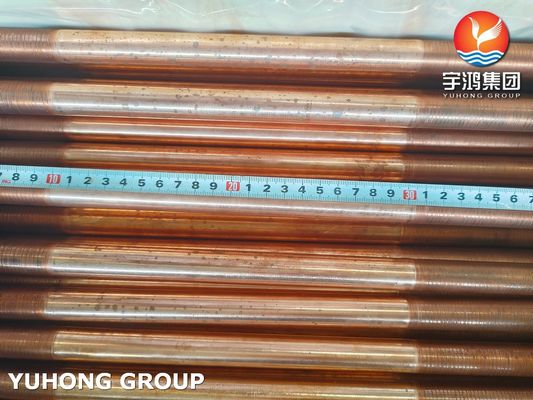

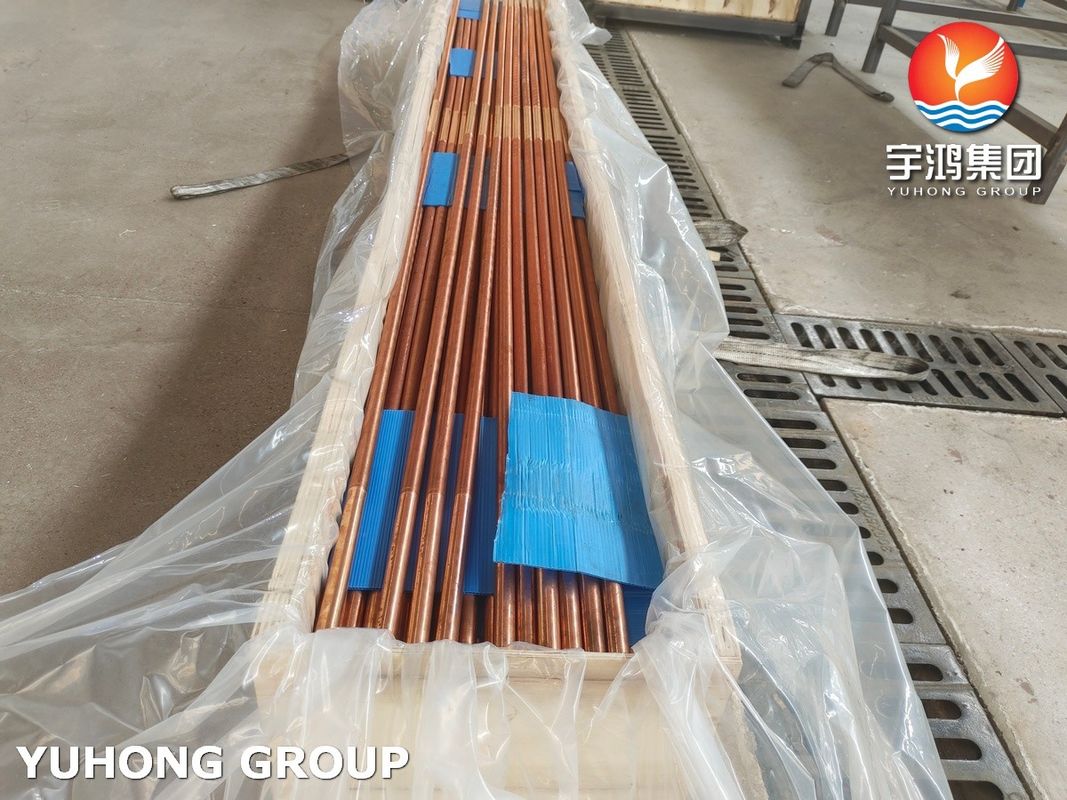

ASTM B111 C12200 Low Fin Tube For Heat Exchanger Condenser Tube Bundle 0

Ratings & Review

Overall Rating

4.7

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

67%

4 stars

33%

3 stars

2 stars

1 stars

All Reviews

Juan

Argentina Feb 18.2026

Helpful (2)

The finning is tight — you can tell they used a proper cold-forming process because the fins don't move at all when you try to wiggle them. We've had issues before with other suppliers where the fins would come loose after a few thermal cycles, but these ones feel solid.

Sajid

Pakistan Jan 12.2026

Helpful (4)

Tube ends were clean, dimensions accurate. Our fitters didn't complain about fit-up.

Carlos

Venezuela Dec 23.2025

Helpful (5)

Good strength, handles the pressure, no corrosion issues so far. We're running treated water, so no complaints.
