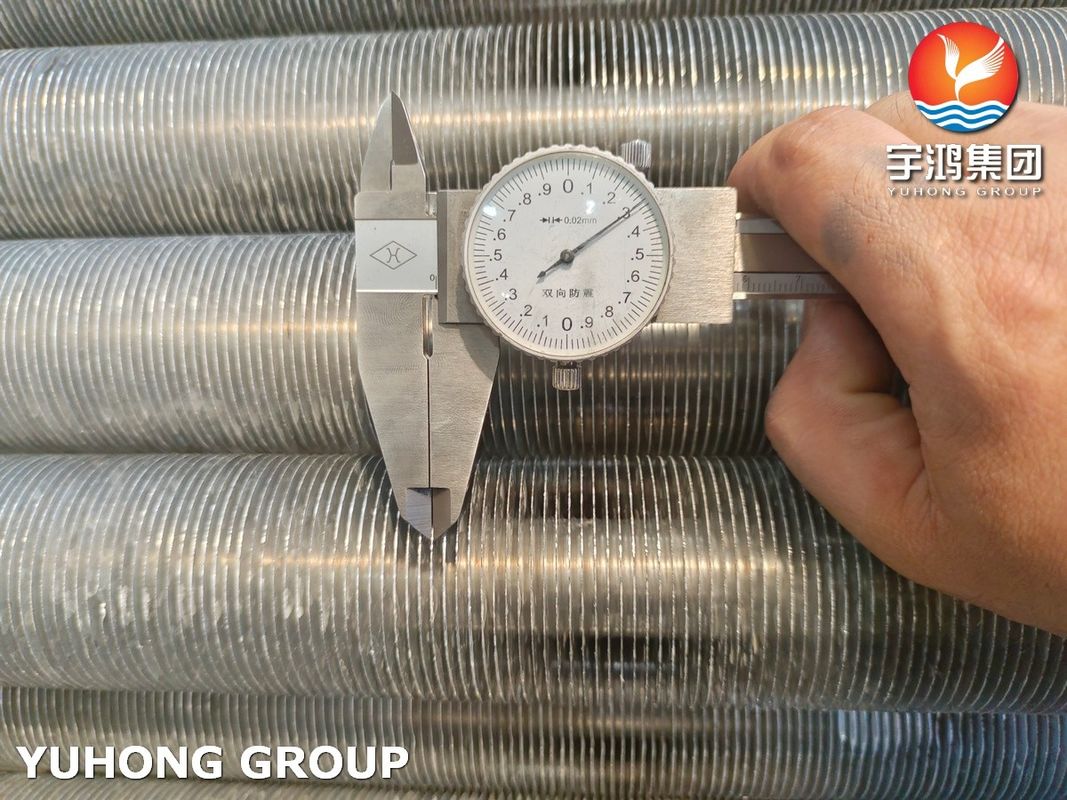

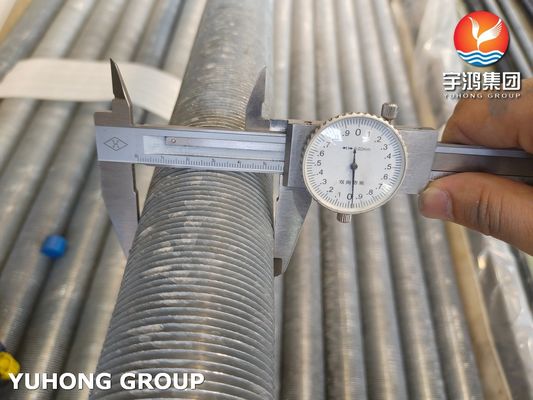

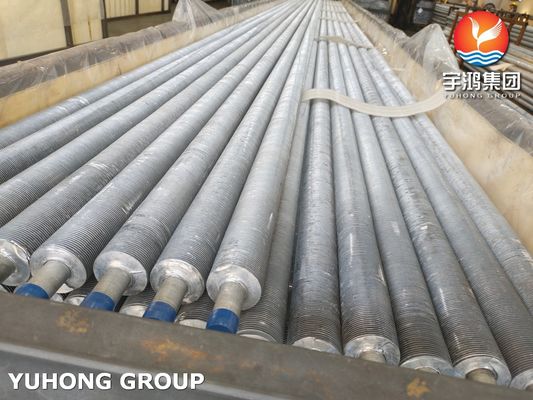

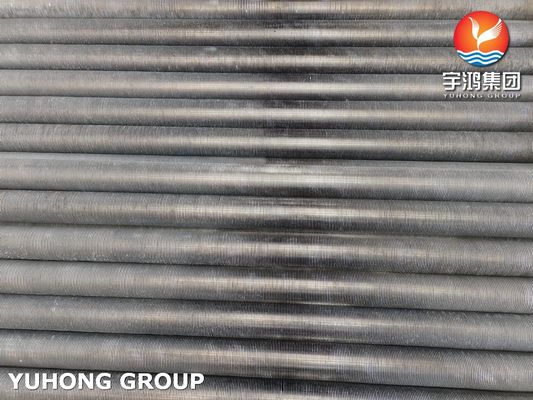

ASTM A269 TP304 Extruded Fin Tube Steel For Boilers / Heat Exchangers

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Sales Dept. (Marketing Director)

sales@steelseamlesspipe.com

+8613819835483

008613819835483

Contact Now

ASTM A269 TP304 Extruded Fin Tube Steel For Boilers / Heat Exchangers

Brand Name:	Yuhong
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

TP304

Base Tube Material Standard:

ASME SA269 , ASTM A269

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum ,Copper, Stainless Steel, Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

Boilers Extruded Fin Tube

ASTM A269 Extruded Fin Tube

Heat Exchangers Extruded Fin Tube

Product Description

ASTM A269 TP304 Extruded Fin Tube Steel For Boilers Application , Heat Exchangers

ASTM A269 TP304 Extruded Fin Tube is a high-efficiency heat transfer component made from austenitic stainless steel. The TP304 grade is known for its excellent corrosion resistance and mechanical properties. The extruded fin design enhances the heat transfer surface area, making it ideal for demanding applications.

Extruded fin design is integrally formed from the tube material, providing a strong bond and maximizing heat transfer efficiency. It has high resistance to oxidation and thermal stress, suitable for high-temperature environments.

Chemical Composition:

Grade	C	Ni	C	Mn	Si	P	S
TP304	18.0-20.0%	8.0-11.0%	0.08% max	2.0% max	1.0% max	0.045% max	0.030% max

Mechanical Properties:

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP304	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Applications:

1. Power Generation

Heat Exchangers:
- Used in power plants to enhance heat transfer in steam generation and cooling systems.
- Improves overall efficiency and performance of power facilities.
Boilers:
- Integral in economizers for recovering waste heat and preheating feedwater.
- Reduces fuel consumption and increases system efficiency.

2. Chemical Processing

Heat Exchangers:
- Ideal for handling corrosive fluids and high temperatures.
- Ensures consistent performance and longevity in chemical plants.
Reactors:
- Maintains optimal temperature control for chemical reactions.
- Enhances process efficiency and safety.

3. HVAC Systems

Air Conditioning Units:
- Used in condenser and evaporator coils to maximize heat exchange.
- Improves energy efficiency and cooling performance.
Refrigeration Systems:
- Enhances heat transfer in evaporators and condensers.
- Contributes to efficient cooling and energy savings.

4. Oil and Gas Industry

Heat Exchangers:
- Suitable for offshore platforms and refineries exposed to corrosive environments.
- Provides reliability and resistance to mechanical stress.
Natural Gas Processing:
- Efficient in systems requiring high thermal performance.
- Helps maintain process efficiency and reduce energy costs.

ASTM A269 TP304 Extruded Fin Tube Steel For Boilers / Heat Exchangers 0
