ASME SA270 typically refers to a standard for stainless steel sanitary tubing, but for heat transfer applications, similar specifications are applied to ensure high quality and reliability. TP316L stainless steel provides excellent protection against corrosion, particularly in chloride-rich environments.

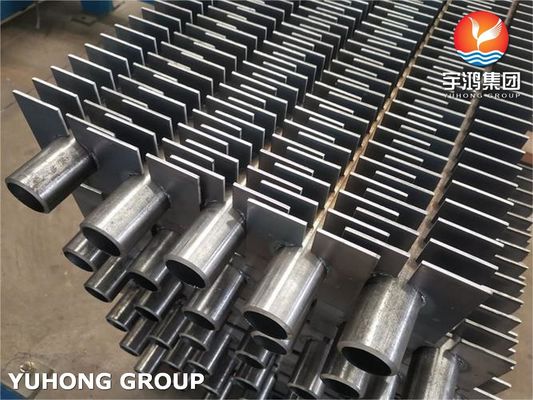

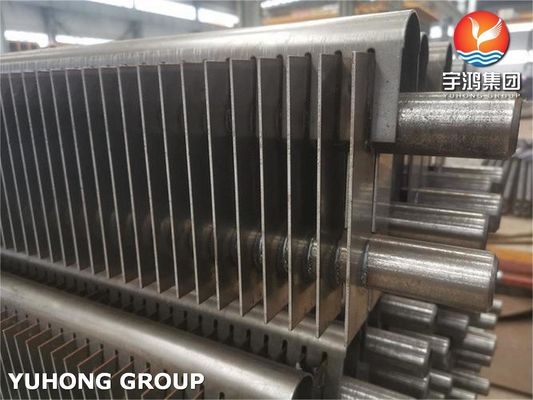

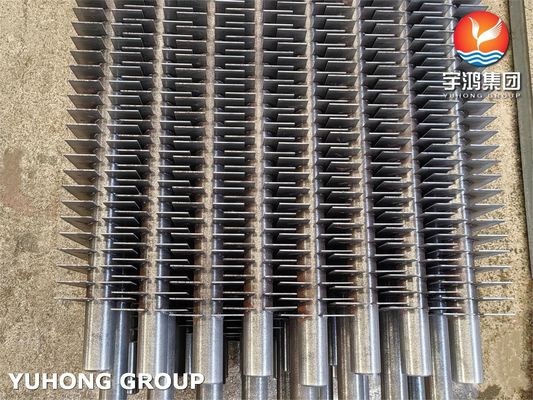

H Type Seamless Steel Square ASME SA270 TP316L Fin Tube for Heating Transfer System Economizer is a high-performance component engineered to enhance thermal efficiency and durability in industrial applications. Its seamless construction, robust material properties, and innovative H fin design.

Chemical Composition:

Grade	Cr	Ni	Mo	C	Mn	Si	P	S
TP316L	16.0-18.0%	10.0-14.0%	2.0-3.0%	0.03% max	2.0% max	1.0% max	0.045% max	0.030% max

Mechanical Properties:

Grade

Tensile Strength

Yield Strength

Elongation

Hardness

TP316L

≥ 170 MPa (25 ksi)

≥ 485 MPa (70 ksi)

≥ 35% in 50 mm

(2 inches)

≤ 95 HRB

Key Features:

Material: Made from ASME SA270 TP316L stainless steel, known for its excellent corrosion resistance and high-temperature strength.
Seamless Construction: Provides uniform strength and reliability, minimizing the risk of leaks.
Square Tube Design: Offers structural stability and efficient space utilization.
H Type Fin Design: Maximizes surface area, significantly improving heat transfer efficiency.

Applications:

These fin tubes are specifically designed for use in economizers, which are crucial components of industrial heating systems:

Economizers:
- Recover residual heat from exhaust gases, preheating the feedwater and improving overall thermal efficiency.
Heat Exchangers:
- Enhance energy recovery in power generation and industrial processes.
Industrial Boilers:
- Increase efficiency and reduce fuel consumption in various industrial applications.
