Square Fin Tube
>

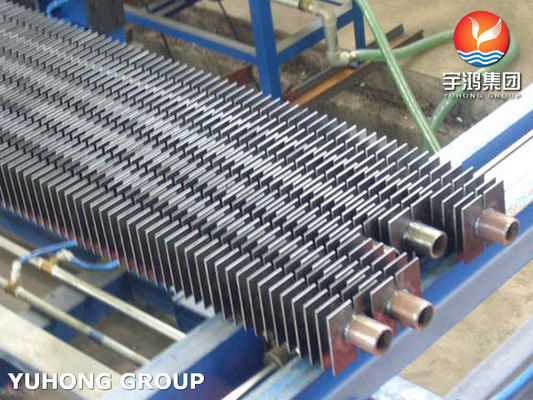

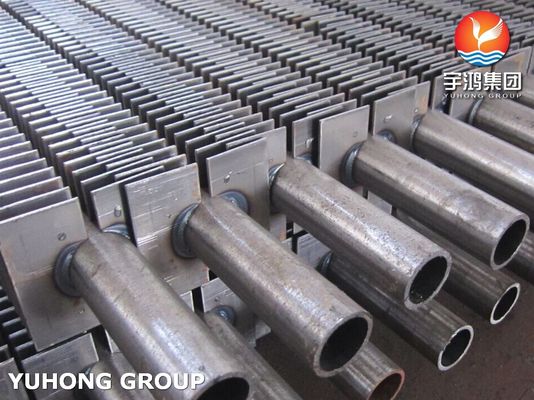

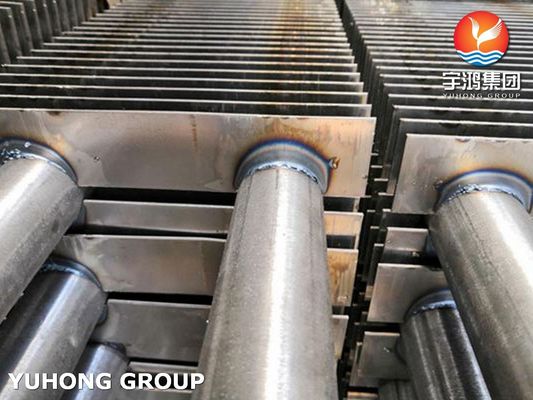

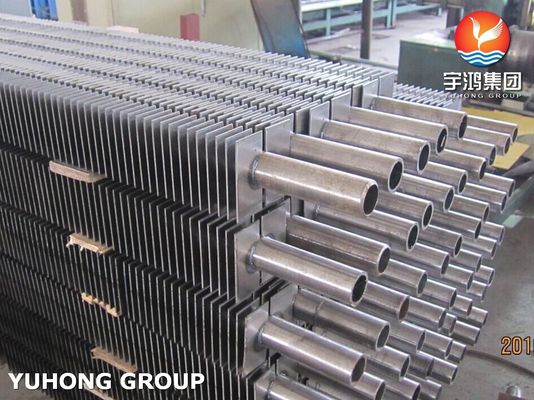

Square H Type ASTM A213 TP316L Stainless Steel Fin Tube For Cooling Tower

Square H Type ASTM A213 TP316L Stainless Steel Fin Tube For Cooling Tower

Brand Name: Yuhong
Model Number: TP304,TP316L
MOQ: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms: TT, LC
Detail Information
Place of Origin:
China
Certification:
ABS, BV, DNV, CCS, LR
Tube Material:
ASTM A213 TP304, TP316L
Fin Material:
SS316L, SS304L, SS304
Fin Type:
Square Tyoe, H Type
Fin Connection:
Welding
Heat Transfer Efficiency:
Excellent
Surface Painting:
Black Or Red
Highlight:

Cooling Tower Square Fin Tube

,

TP316L Square Fin Tube

,

ASTM A213 Square Fin Tube

Product Description

Square H-Type Fin Tube ASTM A213 TP316L Stainless Steel for Cooling Tower




Key Features:

  1. Base Tube Material: ASTM A213 TP316L Stainless Steel, providing superior corrosion resistance, especially in wet and humid cooling tower environments.
  2. Fin Type: Square H-Type Fins, designed for maximum heat transfer efficiency and compact design.
  3. Application: Optimized for use in cooling towers, enhancing energy efficiency and cooling performance.



Technical Specifications:

Property Base Tube (ASTM A213 TP316L) Fin Details (Square H-Type)
Outer Diameter (OD) 15.88 mm - 50.8 mm Customizable based on design
Wall Thickness 1.5 mm - 4.0 mm -
Fin Thickness - 1.0 mm - 2.5 mm
Fin Height - 10 mm - 25 mm
Fin Material Same as base tube (ASTM A213 SS316L)
Fin Attachment Mechanically or Welded



Chemical Composition (ASTM A213 TP316L):

Element Composition (%)
Carbon (C) ≤ 0.03%
Manganese (Mn) ≤ 2.00%
Phosphorus (P) ≤ 0.045%
Sulfur (S) ≤ 0.030%
Silicon (Si) ≤ 1.00%
Chromium (Cr) 16.00 - 18.00%
Nickel (Ni) 10.00 - 14.00%
Molybdenum (Mo) 2.00 - 3.00%



Mechanical Properties (ASTM A213 TP316L):

Property Requirement
Tensile Strength ≥ 485 MPa
Yield Strength ≥ 170 MPa
Elongation ≥ 35%



Advantages:

  1. Corrosion Resistance: TP316L stainless steel resists pitting and crevice corrosion in humid and saline environments.
  2. Thermal Efficiency: Square H-type fins maximize the heat transfer surface while maintaining compact design.
  3. Durability: Welded or mechanically attached fins ensure long-term performance under thermal cycling and mechanical stress.
  4. Energy Efficiency: Designed for optimized performance in cooling towers, reducing energy consumption.



Applications:

  • Cooling Towers: Enhancing cooling efficiency in HVAC and industrial processes.
  • Power Plants: Thermal management for condensers and cooling circuits.
  • Petrochemical Plants: Supporting heat dissipation in large-scale cooling systems.

Square H Type ASTM A213 TP316L Stainless Steel Fin Tube For Cooling Tower 0
